One light, nine settings — the Round Halo 3CCT Linear Frame Light

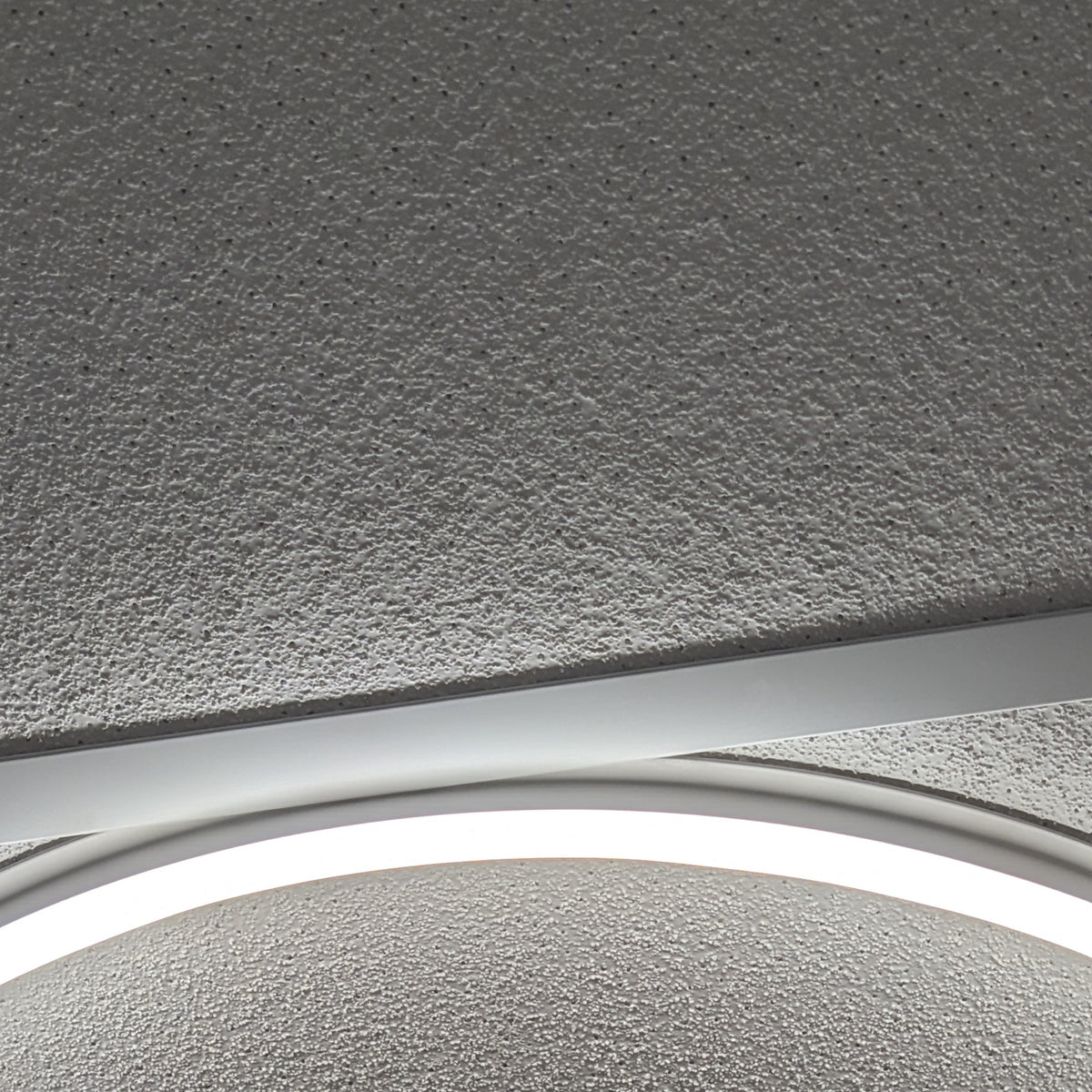

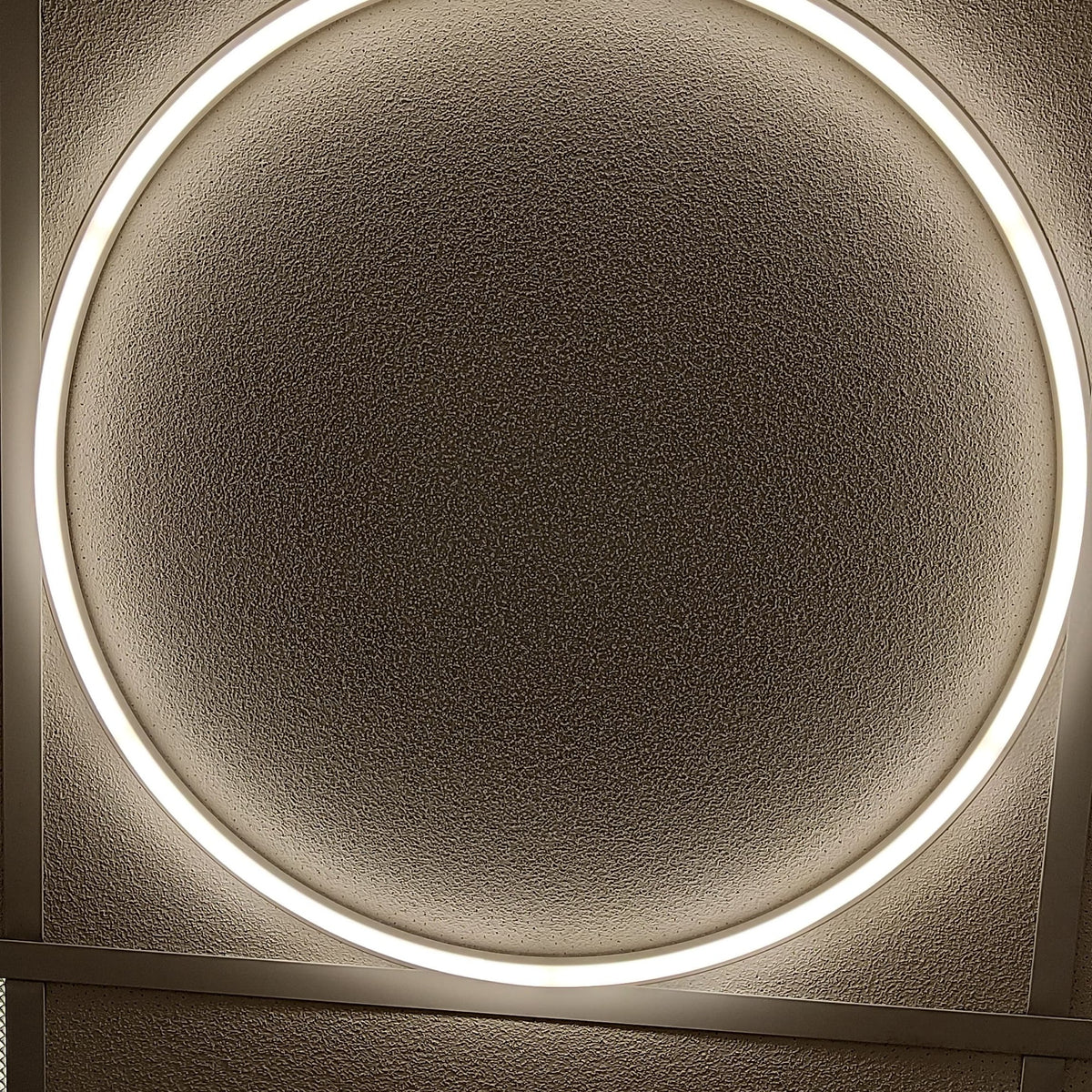

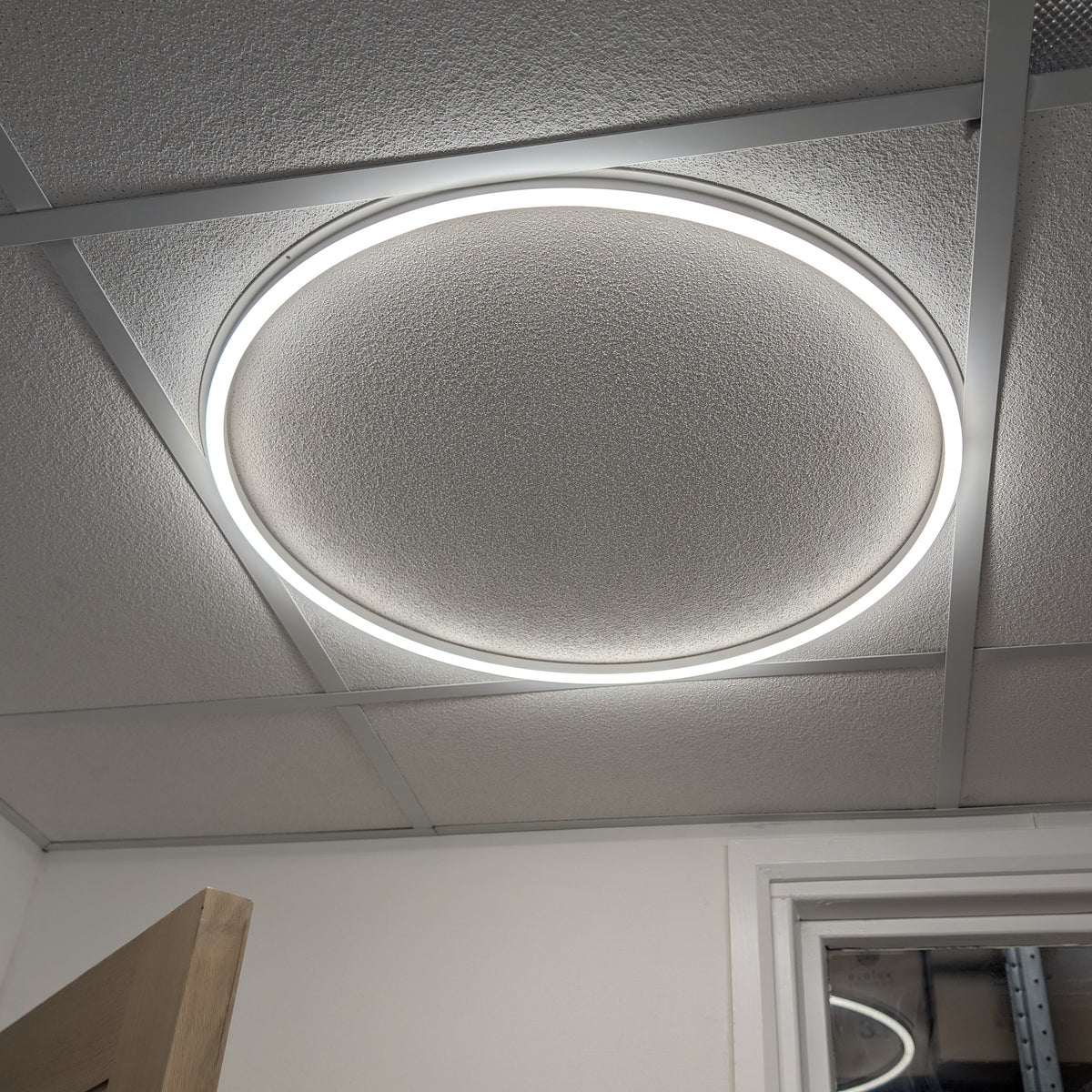

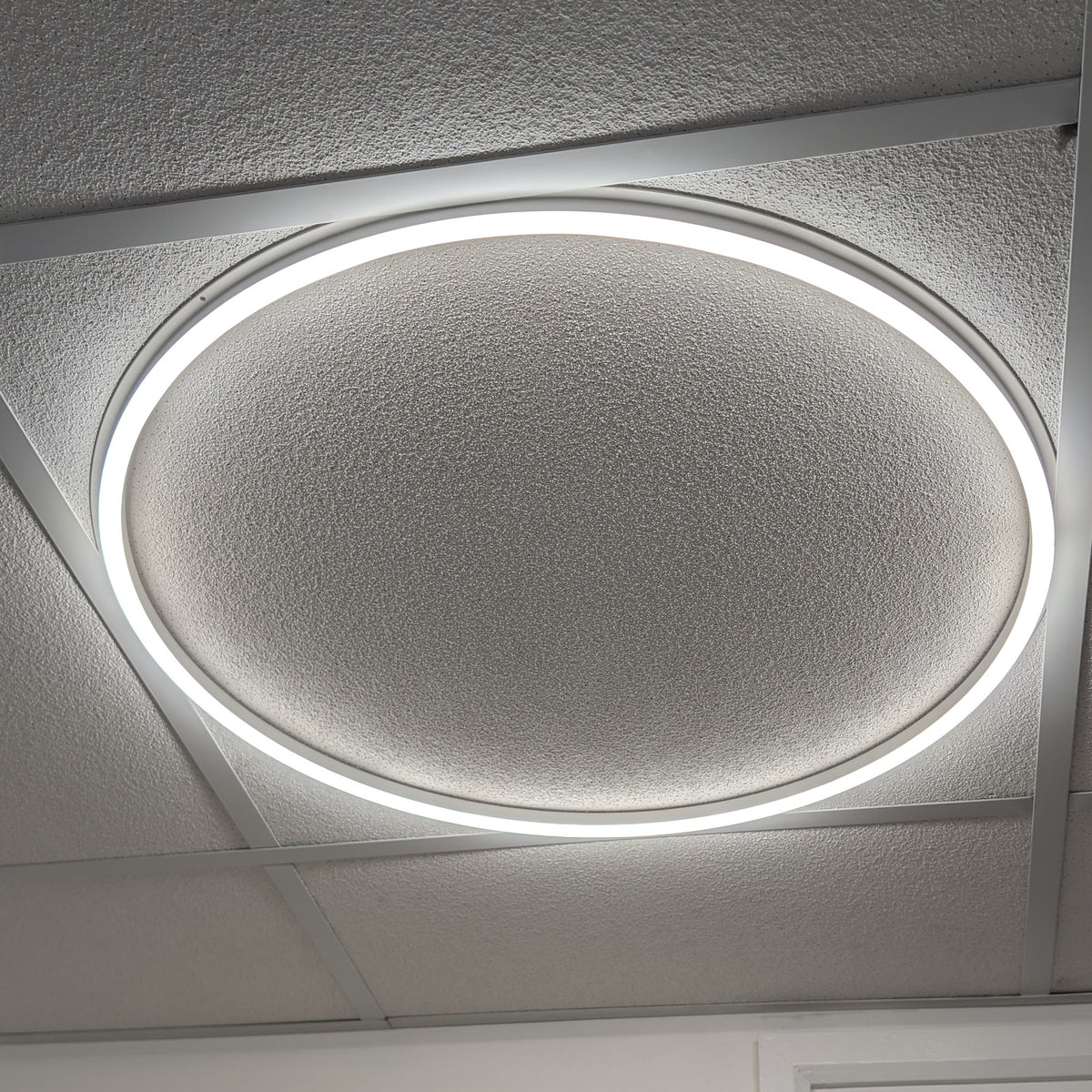

The ecolux Round Halo Linear Frame Light (model LRF40-3CCT) turns a plain 600×600 ceiling tile into a striking ring of light. A slim aluminium frame in white (RAL9003) holds a glowing circular halo with a soft silicon-rubber diffuser, giving even, low-glare illumination with a decorative finish that a flat panel cannot match.

Two DIP switches on the driver put you in control before installation: select the power — 30W, 35W or 40W — and select the colour temperature — 3000K warm white, 4000K cool white or 6500K daylight. That is nine combinations from a single fitting, so one product covers offices, meeting rooms, classrooms, retail spaces, receptions and corridors.

At full power it delivers 4800 lumens at 120 lumens per watt, with a colour rendering index above 80, a 120° beam angle, UGR below 23 and flicker-free operation. The 50,000-hour lifespan and 5-year warranty make it a fit-and-forget upgrade for commercial ceilings.

How it differs from the fixed-output Round Halo (SKU 227072)

Our fixed-output Round Halo light is 40W fixed, 6500K fixed, 4000 lumens, 100 lm/W, 240 LEDs, 30,000-hour life and a 3-year warranty. This 3CCT version is a different, higher-specification product:

• Power selectable: 30W / 35W / 40W via DIP switch (fixed version: 40W only)
• Colour temperature selectable: 3000K / 4000K / 6500K via DIP switch (fixed version: 6500K only)
• Brighter per watt: 4800 lumens at 120 lm/W (fixed version: 4000 lumens at 100 lm/W)
• 480 SMD2835 LEDs (fixed version: 240 LEDs)
• Longer life: 50,000 hours (fixed version: 30,000 hours)
• Longer warranty: 5 years (fixed version: 3 years)

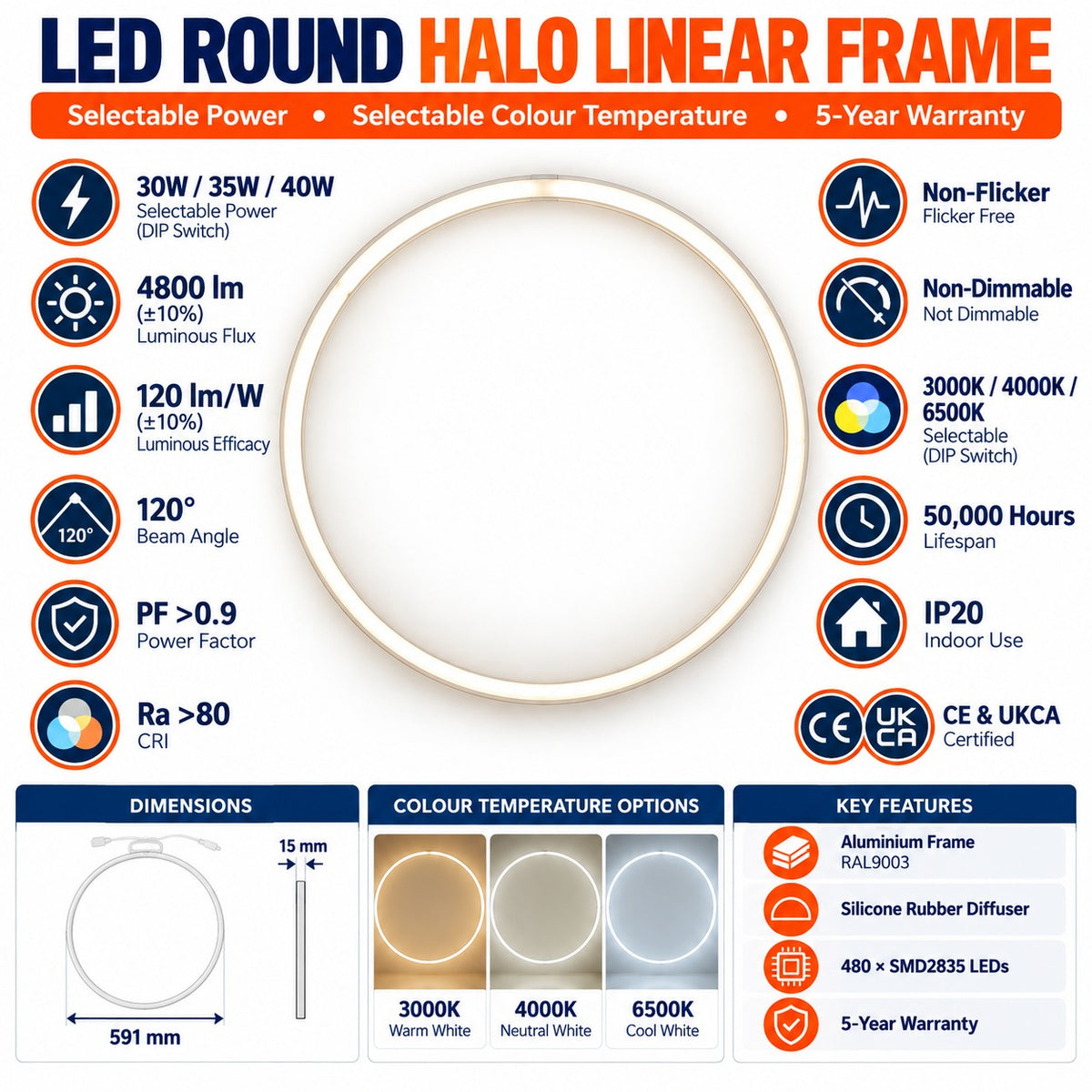

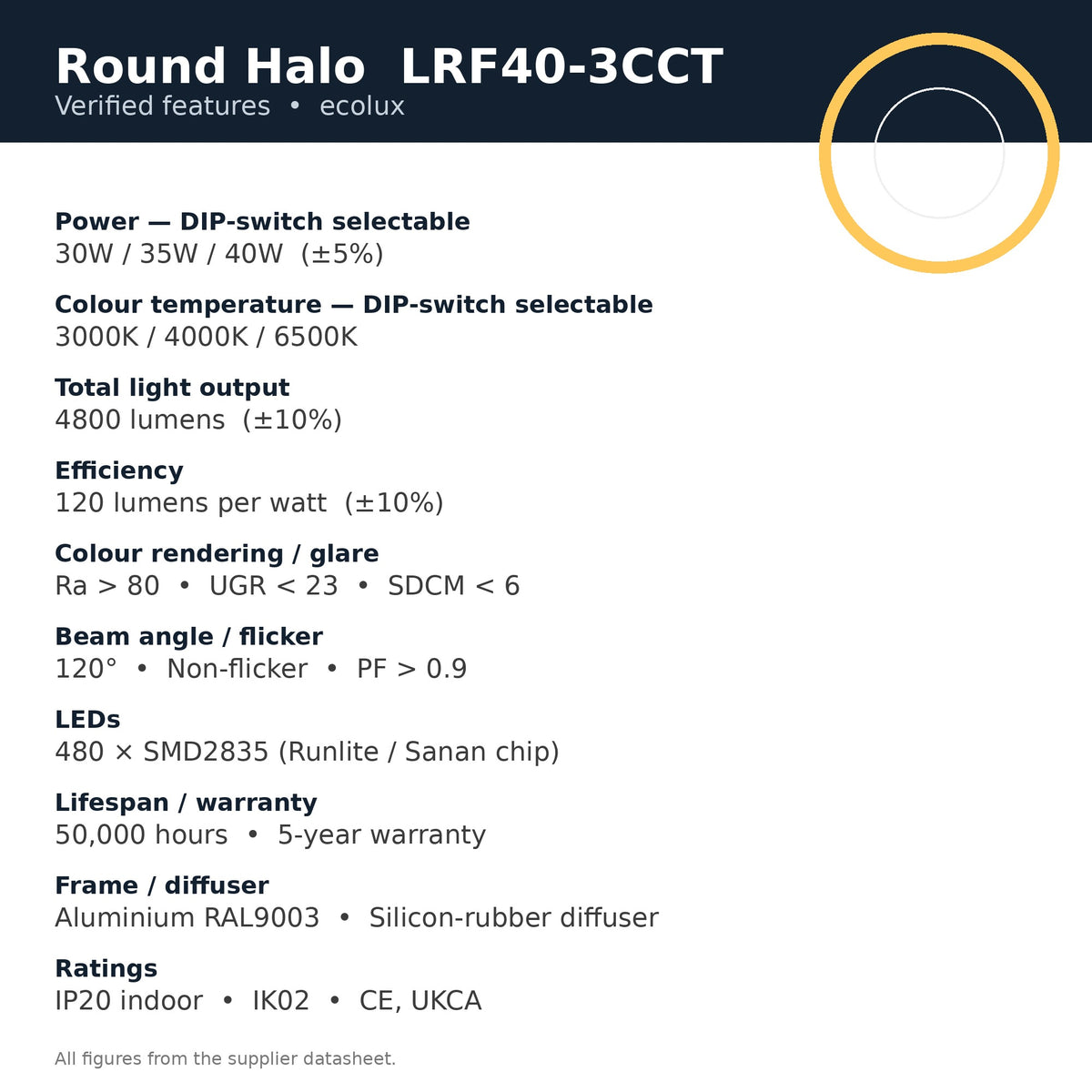

Key features

• DIP-switch selectable power: 30W / 35W / 40W (±5%)
• DIP-switch selectable colour temperature: 3000K / 4000K / 6500K
• 4800 lumens total output (±10%) at 120 lm/W (±10%)

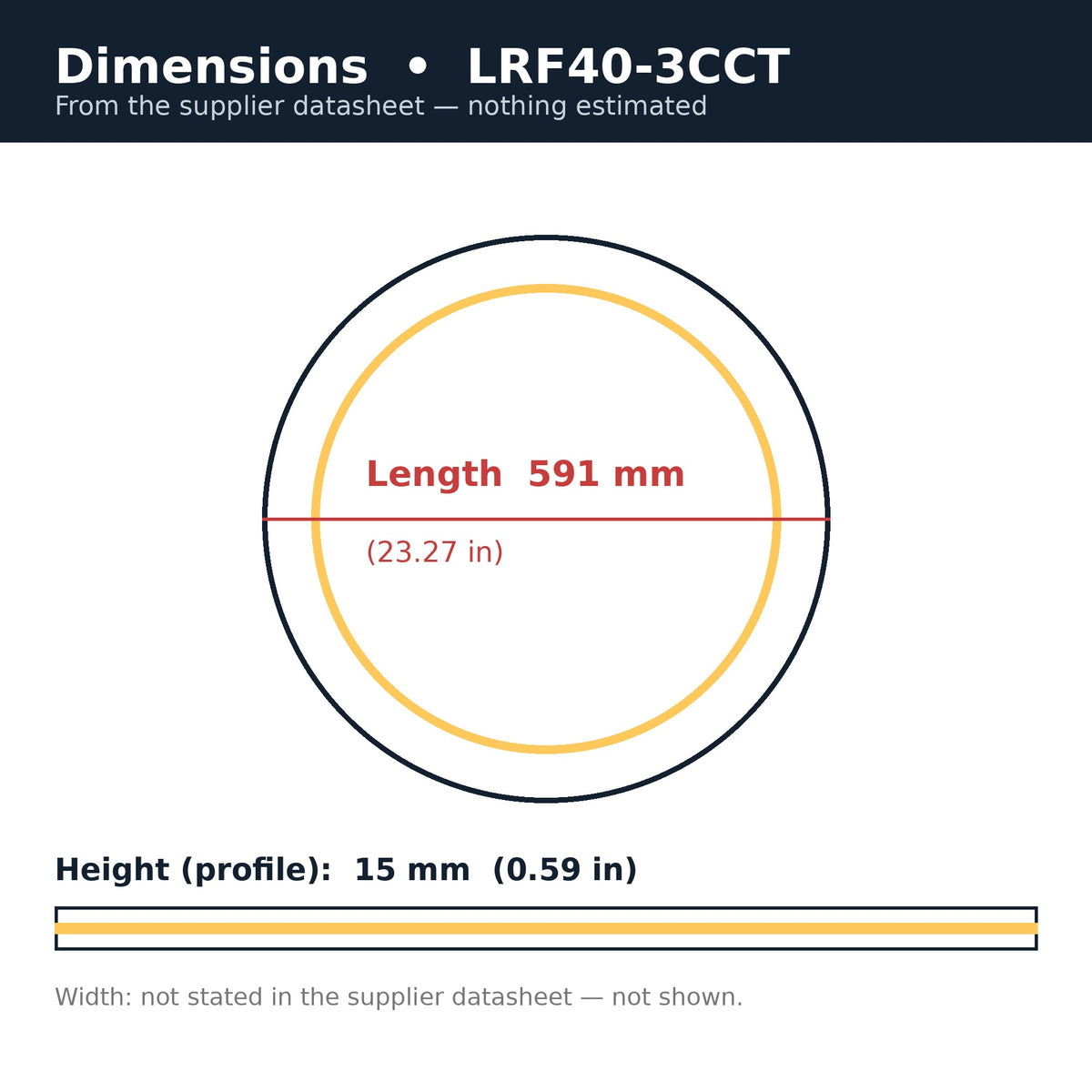

• Decorative round halo ring in a 591mm linear frame — fits a standard 600×600 ceiling grid tile
• Silicon-rubber diffuser for soft, even light; UGR < 23 for comfortable working light
• Flicker-free, non-dimmable, PF > 0.9, Ra > 80, SDCM < 6
• 480 × SMD2835 LEDs (Runlite / Sanan chip)
• Aluminium frame, white RAL9003; IP20, IK02; CE and UKCA certified
• 50,000-hour lifespan; 5-year warranty
• Push-fit AC connector and DC5521 connectors for straightforward wiring

Specifications

What's included

1 × Round Halo 3CCT Linear Frame Light (model LRF40-3CCT), single unit, with ZY power & CCT selectable driver, AC cable with push-fit connector and DC5521 connectors. Accessories: none (as per the supplier datasheet). Mounting hardware and ceiling tile are not included — the datasheet does not list them.

Compatibility & installation

Designed to fit a standard 600×600mm ceiling grid tile. Mains input 220–240V, 50/60Hz. Indoor use only (IP20). Set the power and CCT DIP switches on the driver before installation to the setting you want. Non-dimmable — do not connect to a dimmer. Installation must be carried out by a qualified electrician in accordance with local wiring regulations.

FAQs

What power and colour settings can I choose?
Power: 30W, 35W or 40W. Colour temperature: 3000K warm white, 4000K cool white or 6500K daylight. Both are set with DIP switches on the driver before installation.

How bright is it?
4800 lumens total output (±10%) at up to 40W — 120 lumens per watt (±10%).

Does it fit a standard suspended ceiling?
Yes — the frame is 591mm long and designed to fit a standard 600×600mm ceiling grid tile.

Is it dimmable?
No. The LRF40-3CCT is non-dimmable. Brightness is adjusted by selecting 30W, 35W or 40W on the driver DIP switch.

Is it suitable for bathrooms or outdoor use?
No. It is rated IP20 for indoor use only.

What is the warranty?
5 years. The rated lifespan is 50,000 hours.

Does it come with accessories or mounting hardware?
No — the supplier datasheet lists accessories as "None". The light is supplied as a single unit with its driver and connectors.

How is this different from the fixed 6500K Round Halo light?
The fixed version (SKU 227072) is 40W fixed, 6500K fixed, 4000lm, 100 lm/W, 30,000-hour life and a 3-year warranty. This 3CCT version adds selectable power and colour temperature, is brighter per watt (4800lm, 120 lm/W), lasts 50,000 hours and carries a 5-year warranty.
