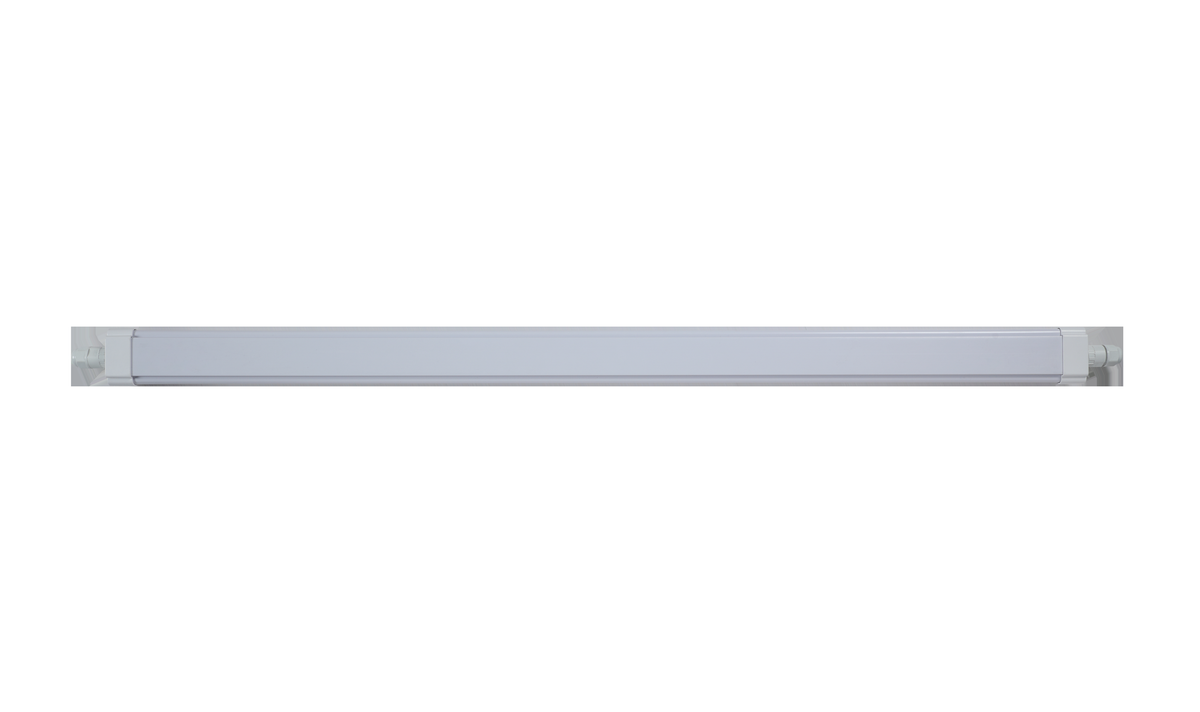

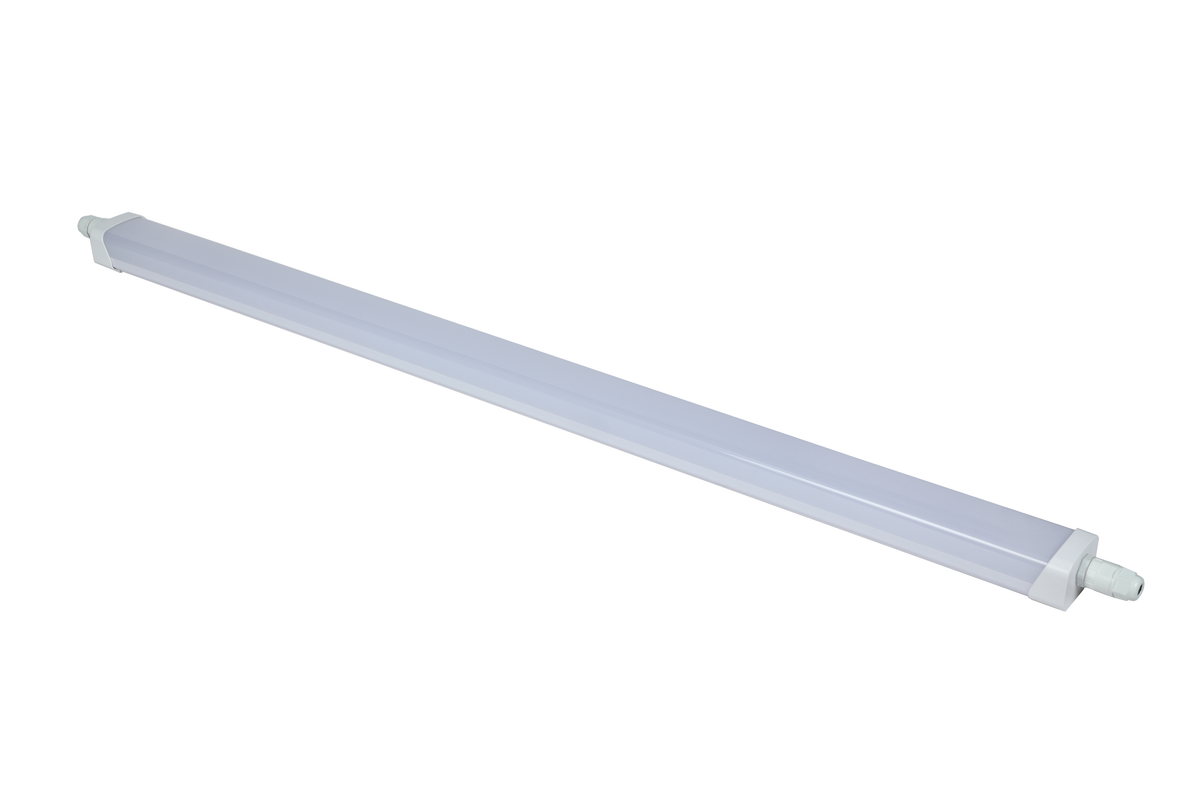

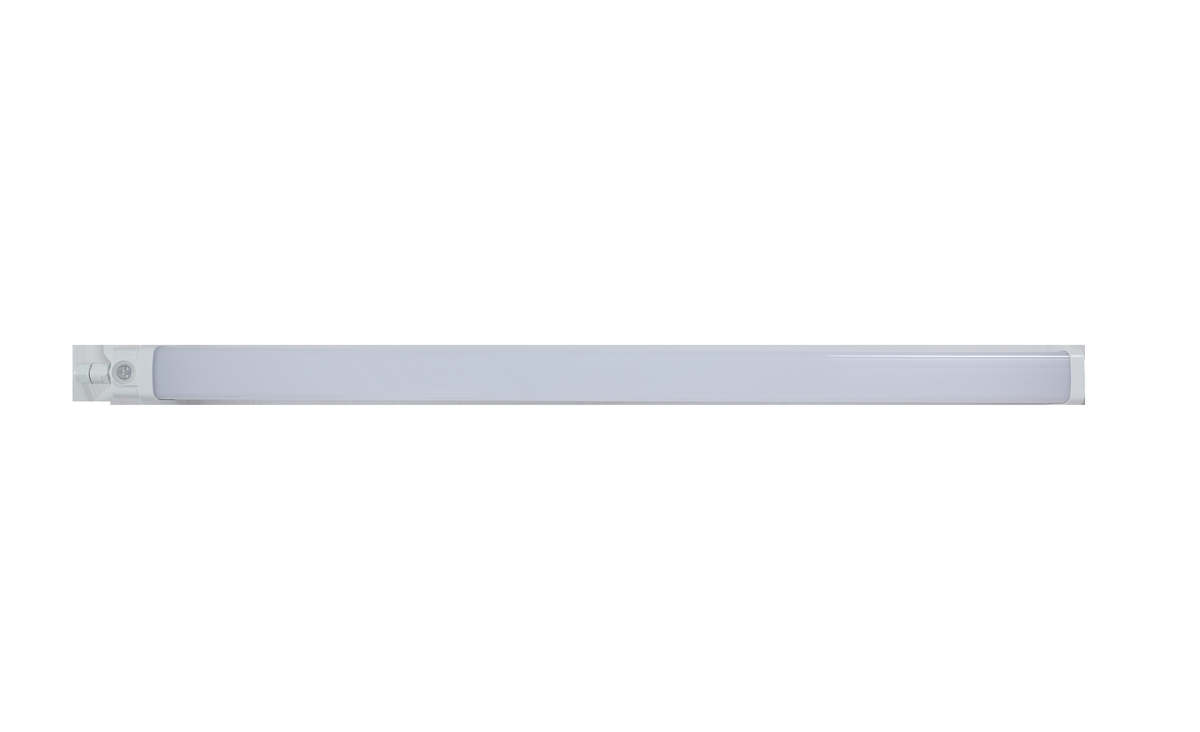

IP65 LED Batten Light – 3CCT, Dip-Switch Selectable

One batten, three colour temperatures. The IP65 LED Batten Light lets you select 3000K warm white, 4000K cool white or 6500K daylight with a simple dip-switch – set it once at installation to suit the room. Its sealed IP65 body makes it ideal for garages, workshops, kitchens, utility rooms, corridors, outbuildings and sheltered outdoor areas.

Key Features

• 3CCT dip-switch selectable: 3000K warm white / 4000K cool white / 6500K daylight – choose at installation via the dial under the dial cover.
• IP65 weatherproof: sealed for indoor and outdoor use.
• Two lengths: 4FT 36W and 5FT 48W.

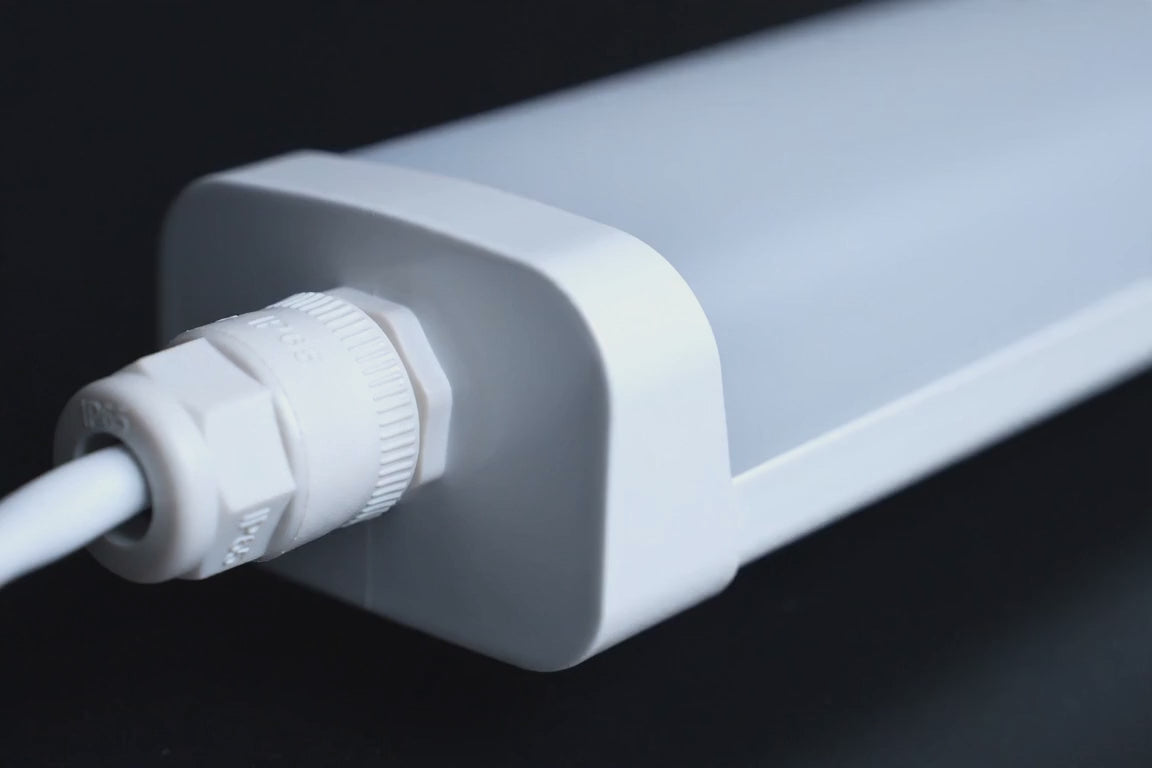

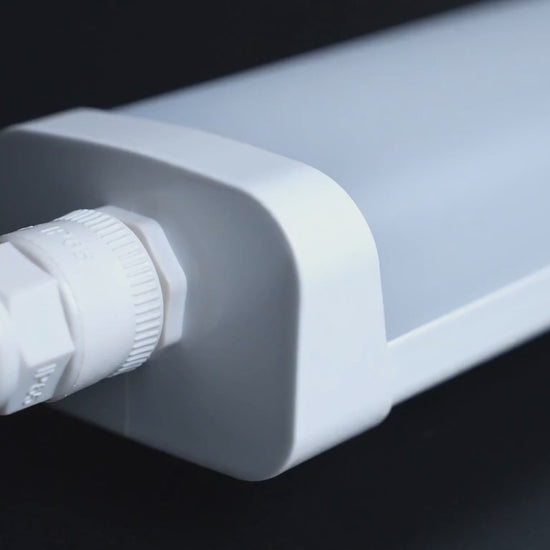

• Quick-connect waterproof connector for fast, tool-free wiring.
• Slide mounting buckles for ceiling or wall mounting.
• 120° beam angle, CRI >80, PF >0.9, PC body, energy class D.

Specifications

Common specifications (both lengths): 3CCT dip-switch 3000K / 4000K / 6500K · IP65 · 120° beam angle · CRI >80 · PF >0.9 · PC body · energy class D · AC 220–240V, 50/60 Hz · operating temperature -20°C to +40°C · indoor and outdoor use · quick-connect waterproof connector · slide mounting buckles.

Lumen note: the figures quoted (4,860 lm / 6,480 lm) are module lumens as stated in the supplier datasheet. Delivered lumens will be lower after the diffuser.

Dimensions note: the 4FT dimensions are taken from the supplier dimensions drawing (1.2M 36W). No dimensions drawing for the 5FT length was supplied, so 5FT dimensions are not stated.

Installation note: the light source of this luminaire is non-replaceable – when the light source reaches its end of life the whole luminaire should be replaced. Turn off the power before installation.
