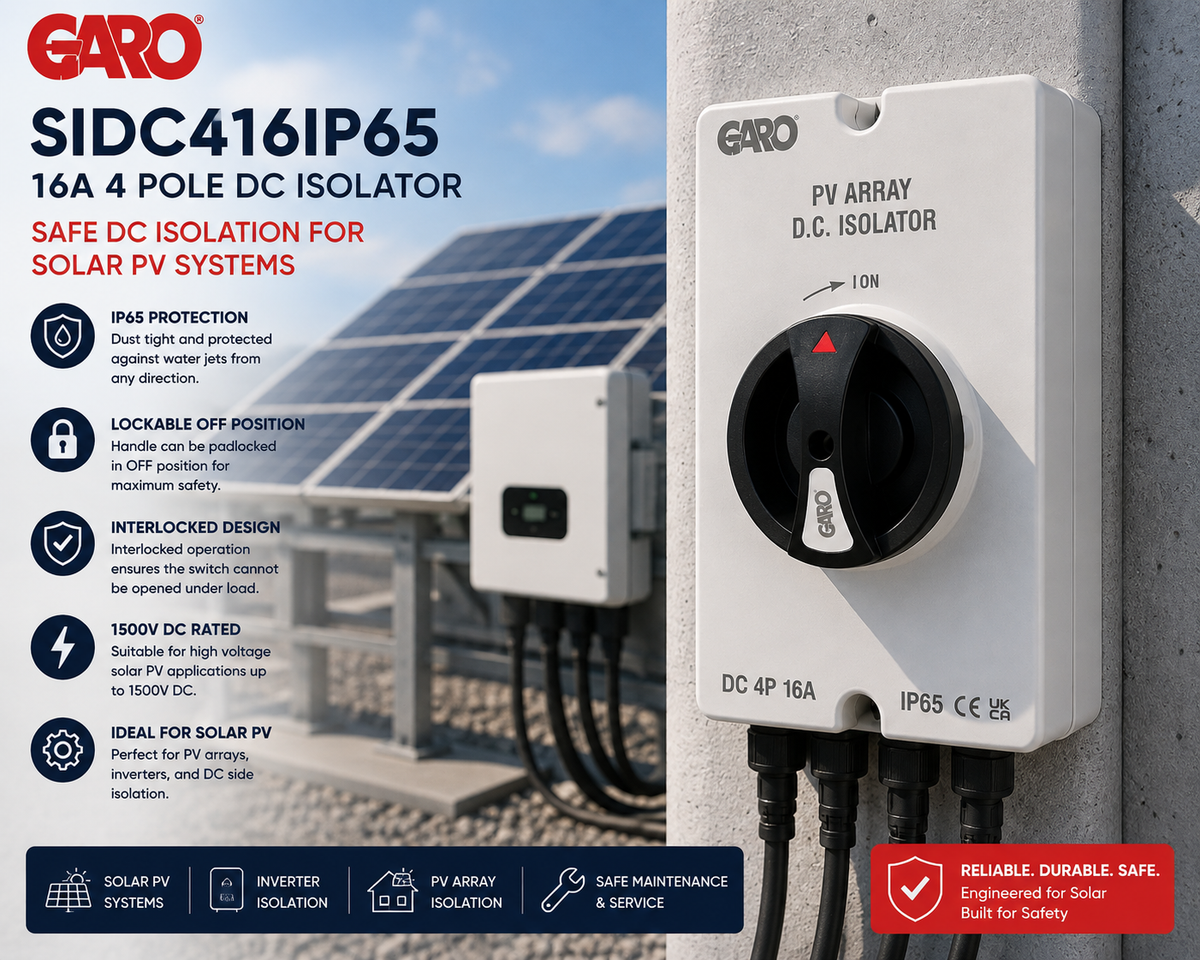

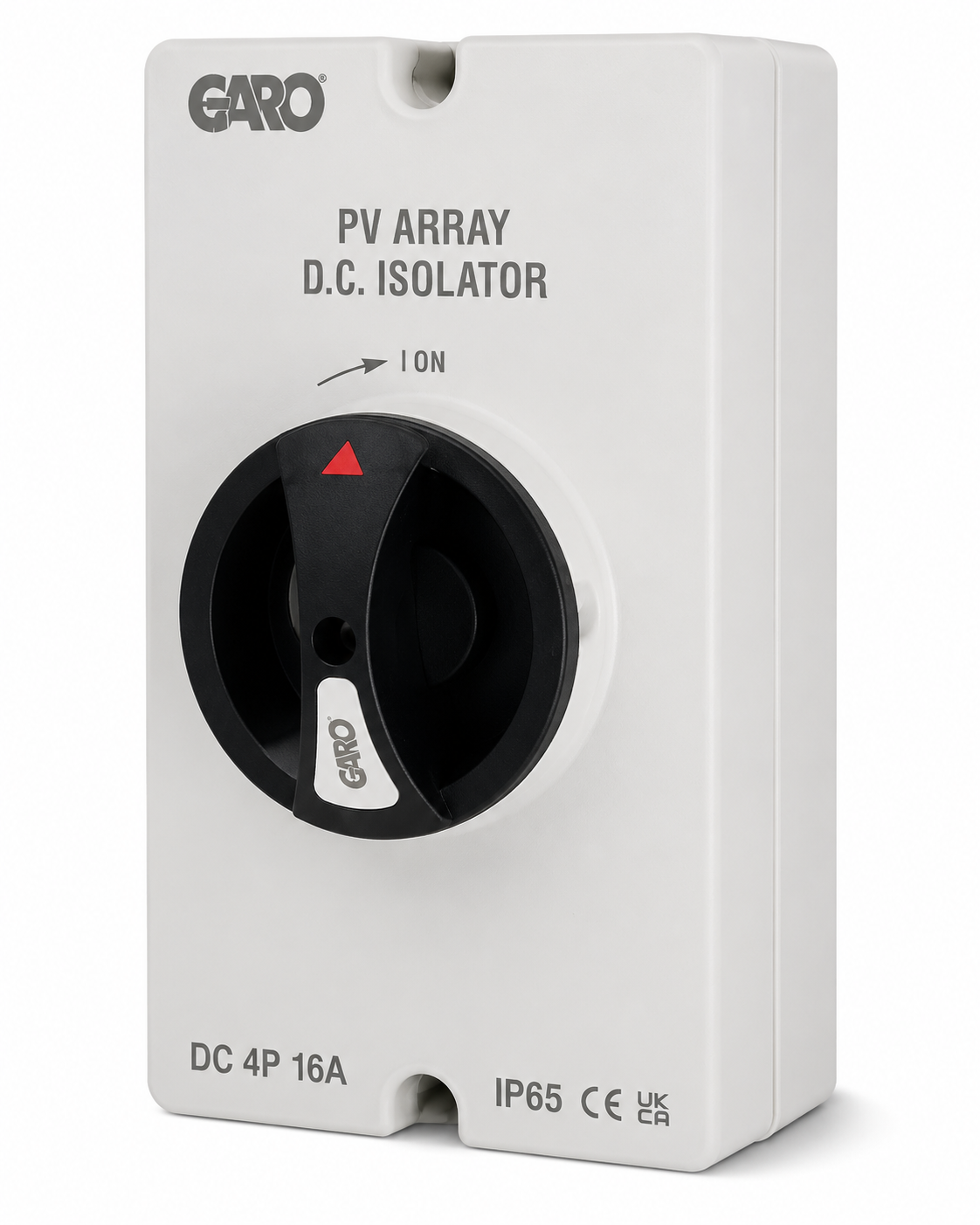

GARO SIDC416IP65 16A 4 Pole 1500V DC Solar Isolator | IP65
GARO SIDC416IP65 16A 4 Pole 1500V DC Solar Isolator | IP65
Vestibulum dapibus ultrices arcu, id varius mauris viverra ac. Aliquam erat volutpat. Pellentesque commodo ut elit at gravida.
Regular price
£24.99
Sale price
£24.99
Regular price
£45.43
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock In stock, ready to be shipped.
Share
Couldn't load pickup availability
Description
Description
Key Features:
- Genuine GARO SIDC416IP65
- 16A DC current rating
- 4-pole DC isolator
- Up to 1500V DC rated operational voltage
- IP65-rated enclosure
- Interlocked operation
- Rotary switch mechanism
- Lockable in OFF position
- 8kV rated impulse withstand voltage
- 10mm terminals
- 4 × M20/25 cable knockouts
- Surface-mounted installation
- BS EN 60947-3
- CE & UKCA certified
- Recommended terminal torque: 1.7Nm
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GARO |
| Model | SIDC416IP65 |
| Product Type | DC Solar Safety Switch |
| Application | Solar PV / DC Isolation |
| Current Rating | 16A |
| Current Category | DC21B |
| Number of Poles | 4 Pole |
| Rated Operational Voltage | 1500V DC |
| Rated Impulse Withstand Voltage | 8kV |
| Rated Continuous Current | 16A |
| Terminals | 10mm |
| Cable Knockouts | 4 × M20/25 |
| IP Rating | IP65 |
| Interlocked | Yes |
| Lockable | Yes, OFF position |
| Standard | BS EN 60947-3 |
| Certification | CE, UKCA |
| Recommended Torque | 1.7Nm |
| Mounting | Surface Mounted |
These values are taken from the uploaded GARO specification.
