View compareGARO GS4SOL 4-Way PV Consumer Unit with SPD & Bi-Directional RCBO
GARO GS4SOL 4-Way PV Consumer Unit with SPD & Bi-Directional RCBO
Regular price
£42.99
Sale price
£42.99
Regular price
£78.49
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock In stock, ready to be shipped.
Share
Couldn't load pickup availability
Description
Description

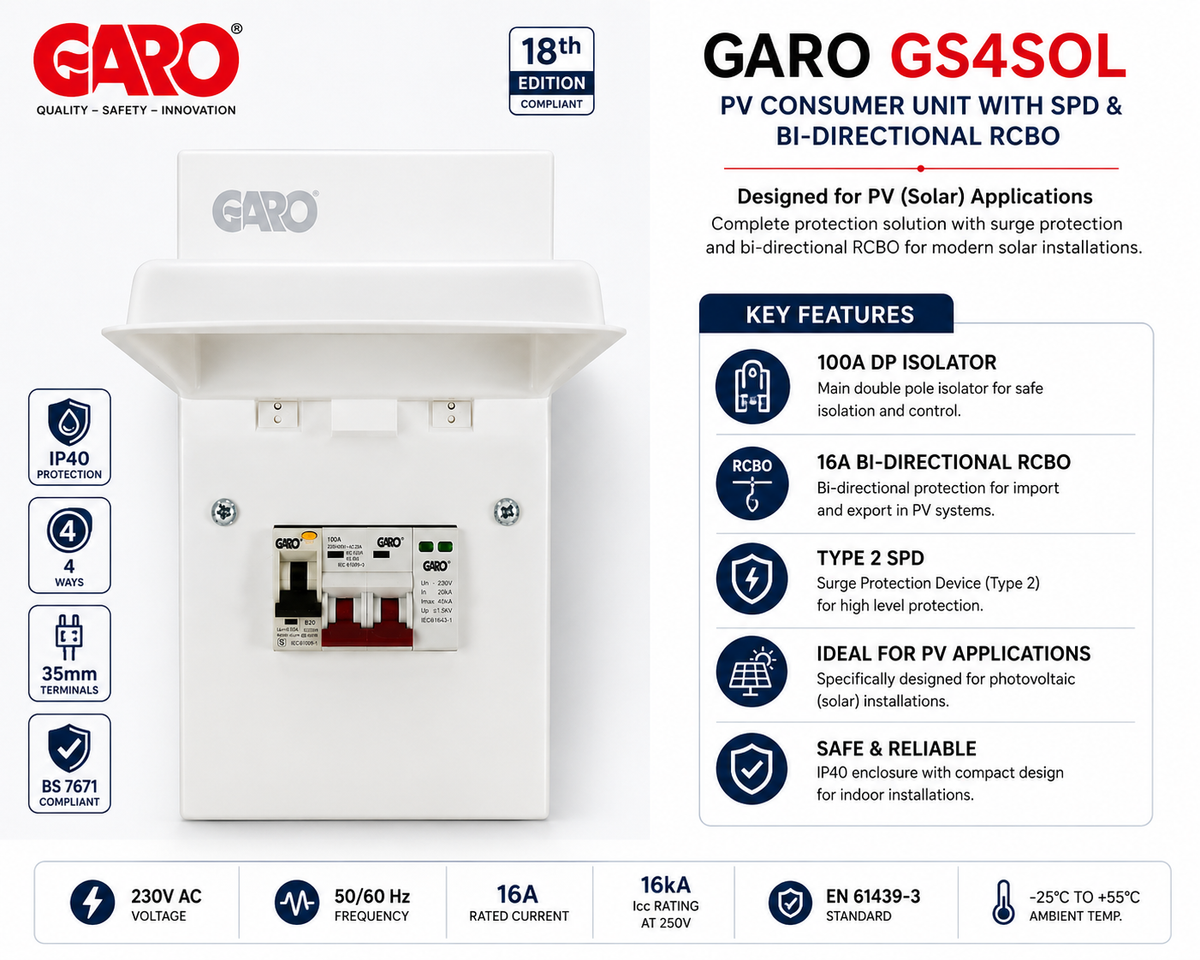

Key Features:

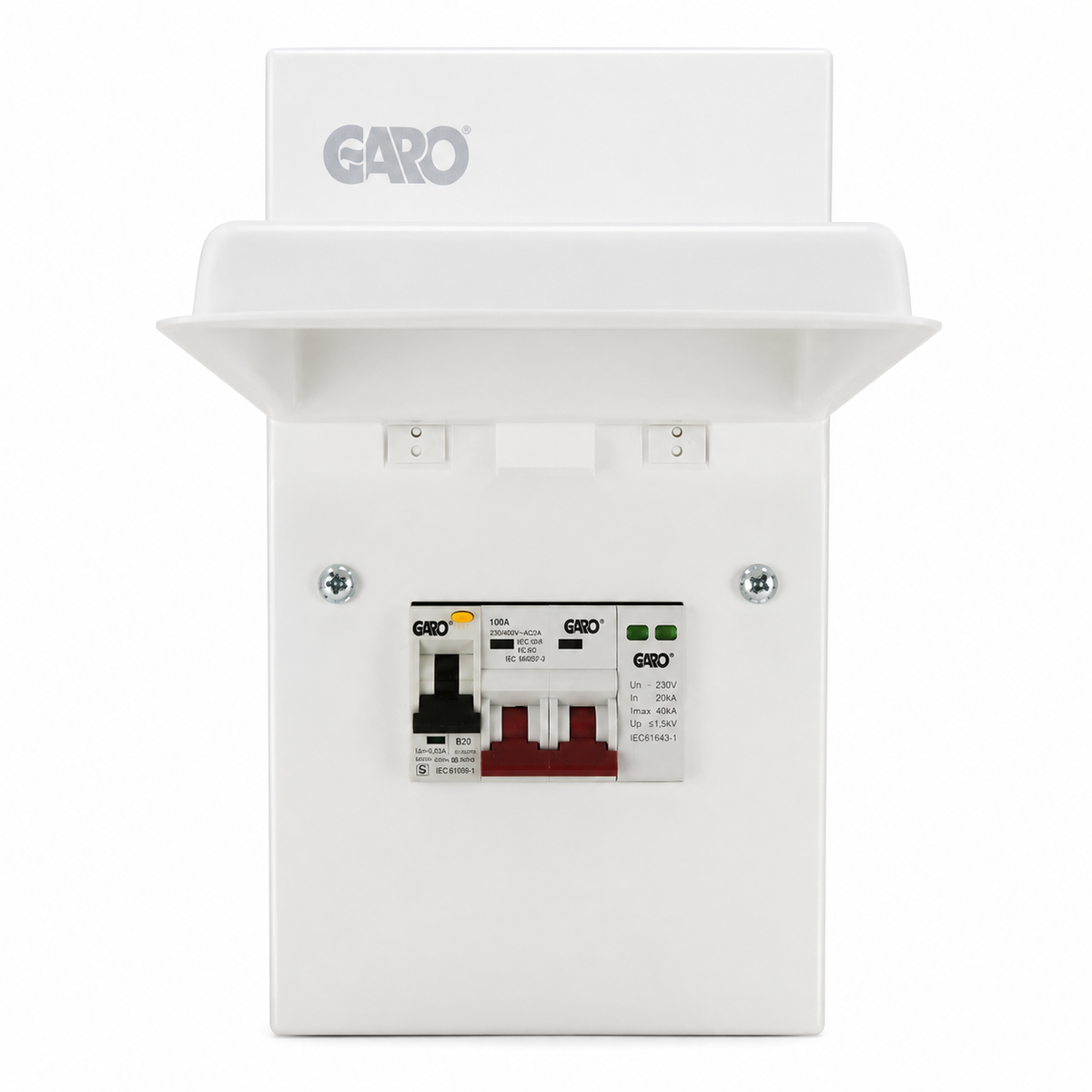

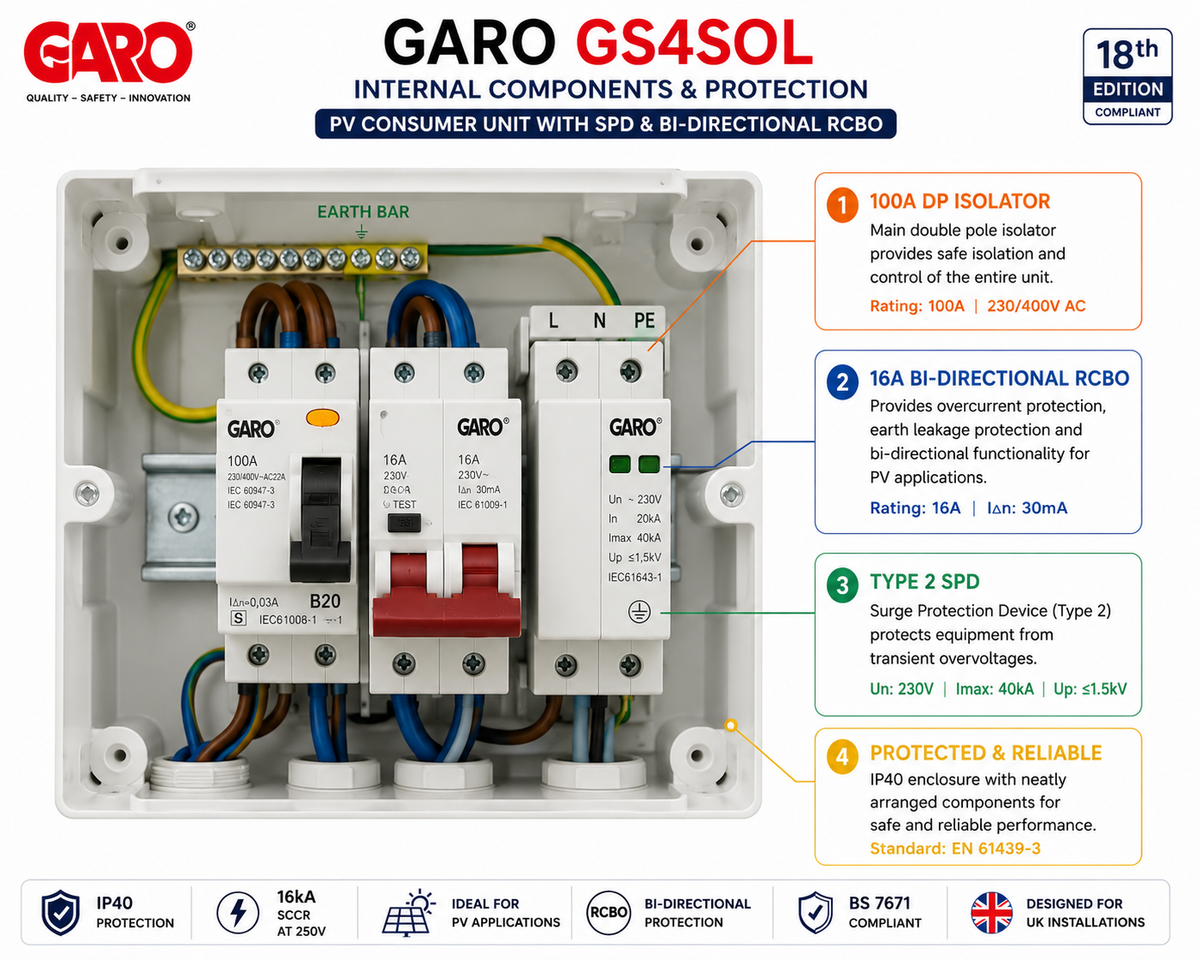

- GARO GS4SOL consumer unit
- Designed for PV applications
- Bi-directional RCBO
- 100A double-pole isolator
- 16A RCBO
- Type 2 surge protection (SPD)
- 4-way consumer unit
- IP40 degree of protection
- 230V AC rated voltage
- 50/60Hz frequency
- 16kA rms conditional short-circuit rating at 250V
- 35mm terminals
- Maximum backup protection: 100A
- Compliant with BS 7671
- EN 61439-3 standard
- Domestic Consumer Units, 18th Edition
- Compact enclosure design

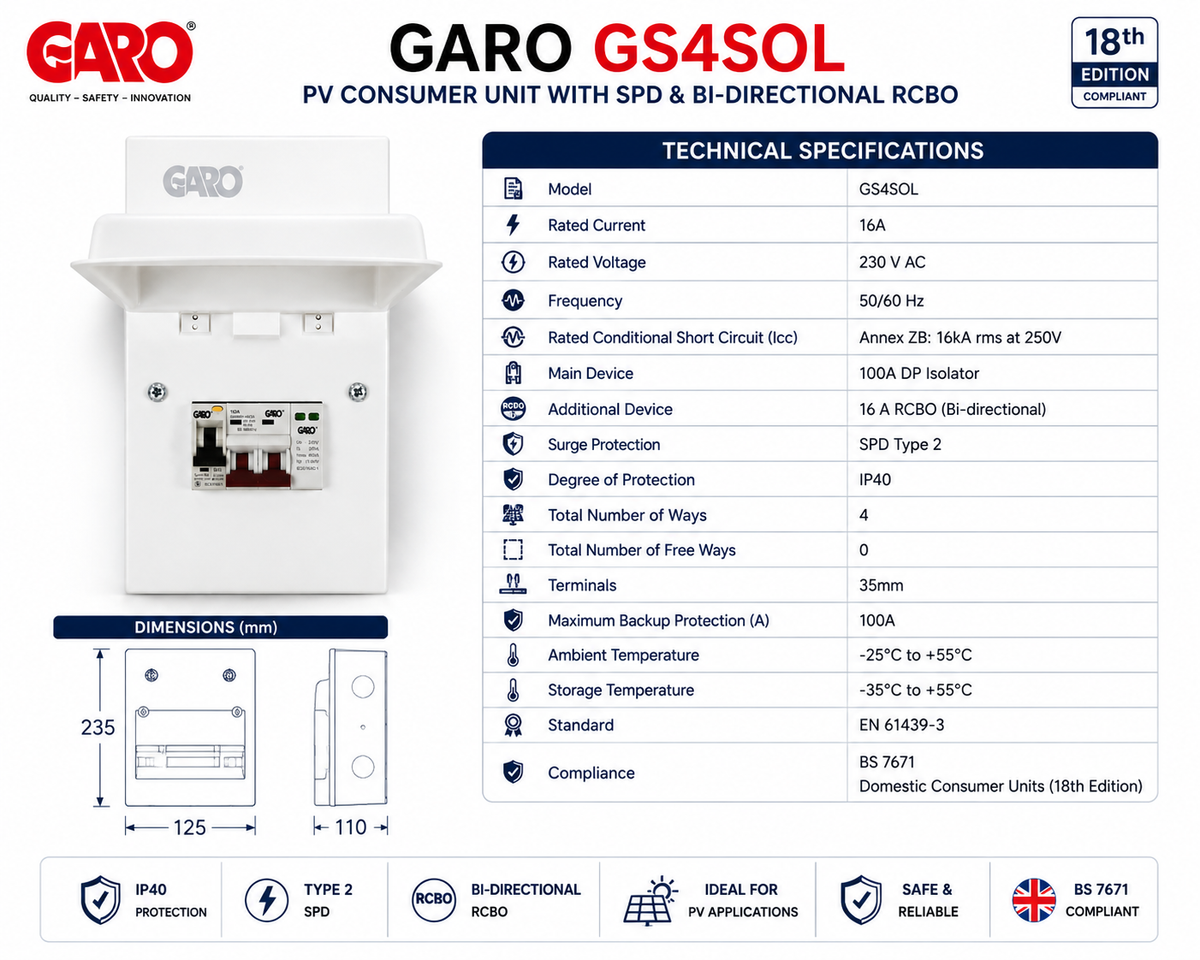

Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GARO |
| Model | GS4SOL |
| Product Type | Domestic Consumer Unit |
| Application | PV / Solar Applications |
| Rated Current | 16A |
| Rated Voltage | 230V AC |
| Frequency | 50/60Hz |
| Main Device | 100A DP Isolator |
| Additional Device | 16A RCBO |
| RCBO Type | Bi-Directional |
| Surge Protection | SPD Type 2 |
| Total Ways | 4 |
| Free Ways | 0 |
| Degree of Protection | IP40 |
| Conditional Short Circuit Rating | 16kA rms at 250V |

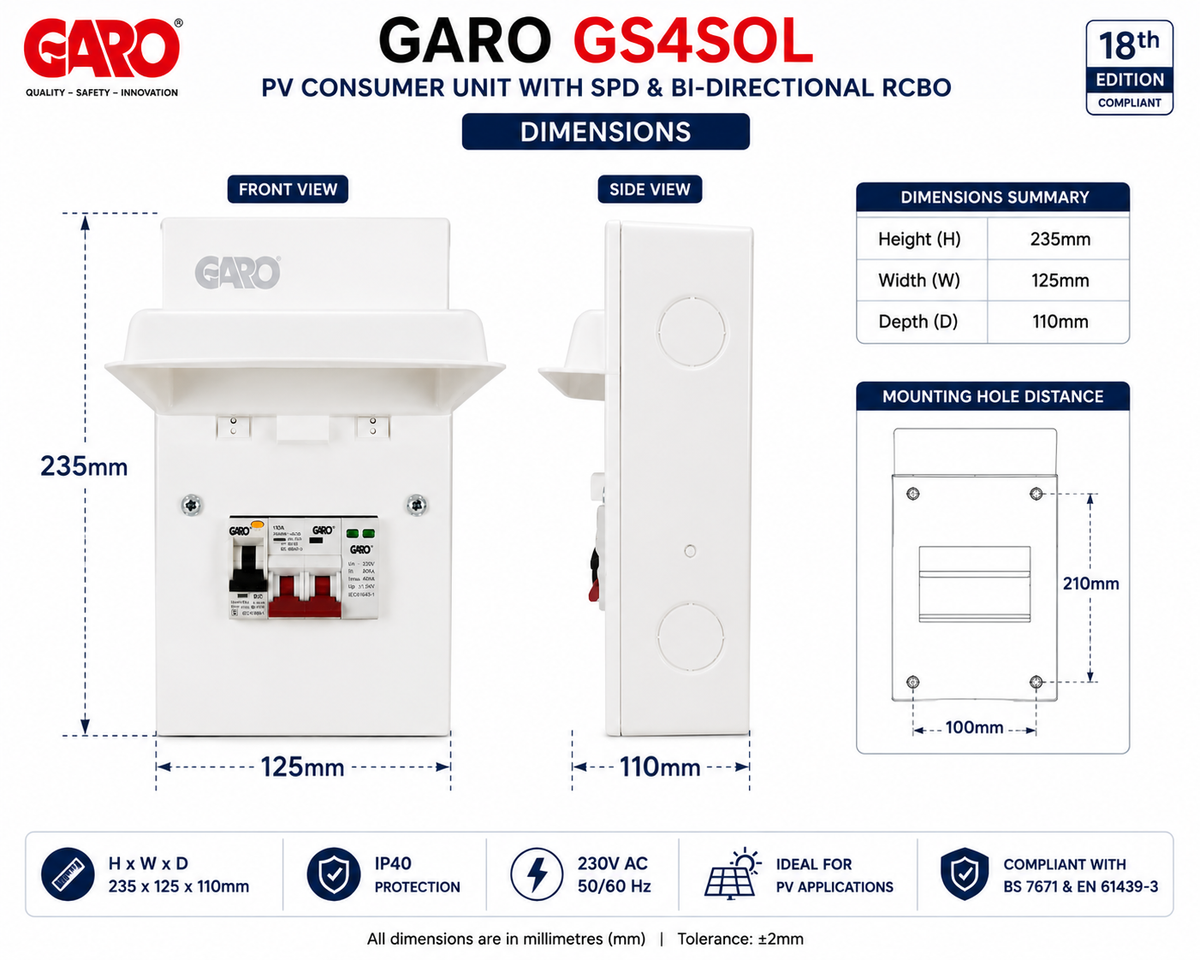

| Dimensions H × W × D | 235 × 125 × 110mm |
| Terminals | 35mm |
| Maximum Backup Protection | 100A |
| Ambient Temperature | -25°C to +55°C |
| Storage Temperature | -35°C to +55°C |
| Standard | EN 61439-3 |
| Compliance | BS 7671 |
| Consumer Unit Standard | Domestic Consumer Units, 18th Edition |
All specifications above are taken from the supplied GARO GS4SOL technical documentation.
