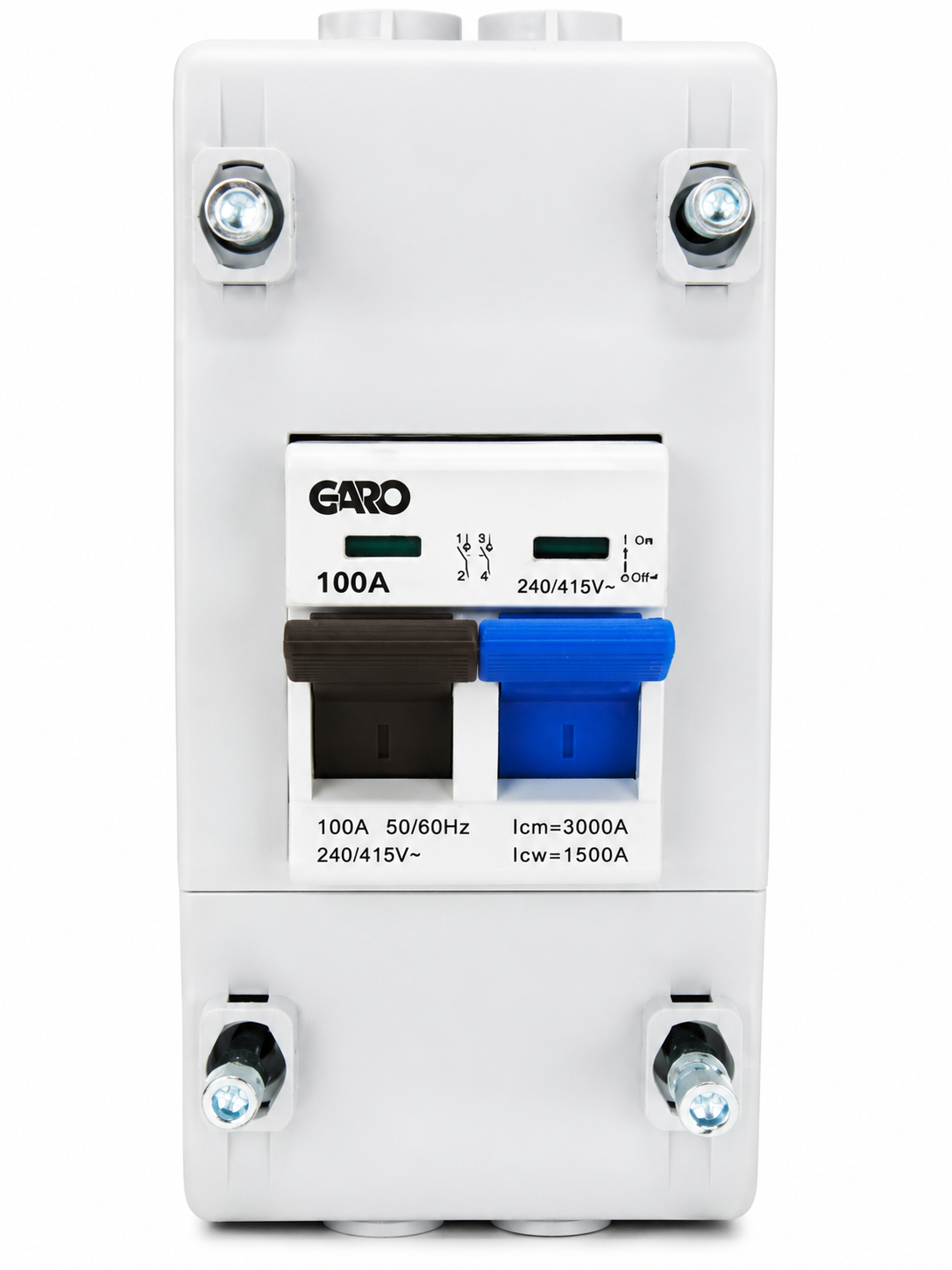

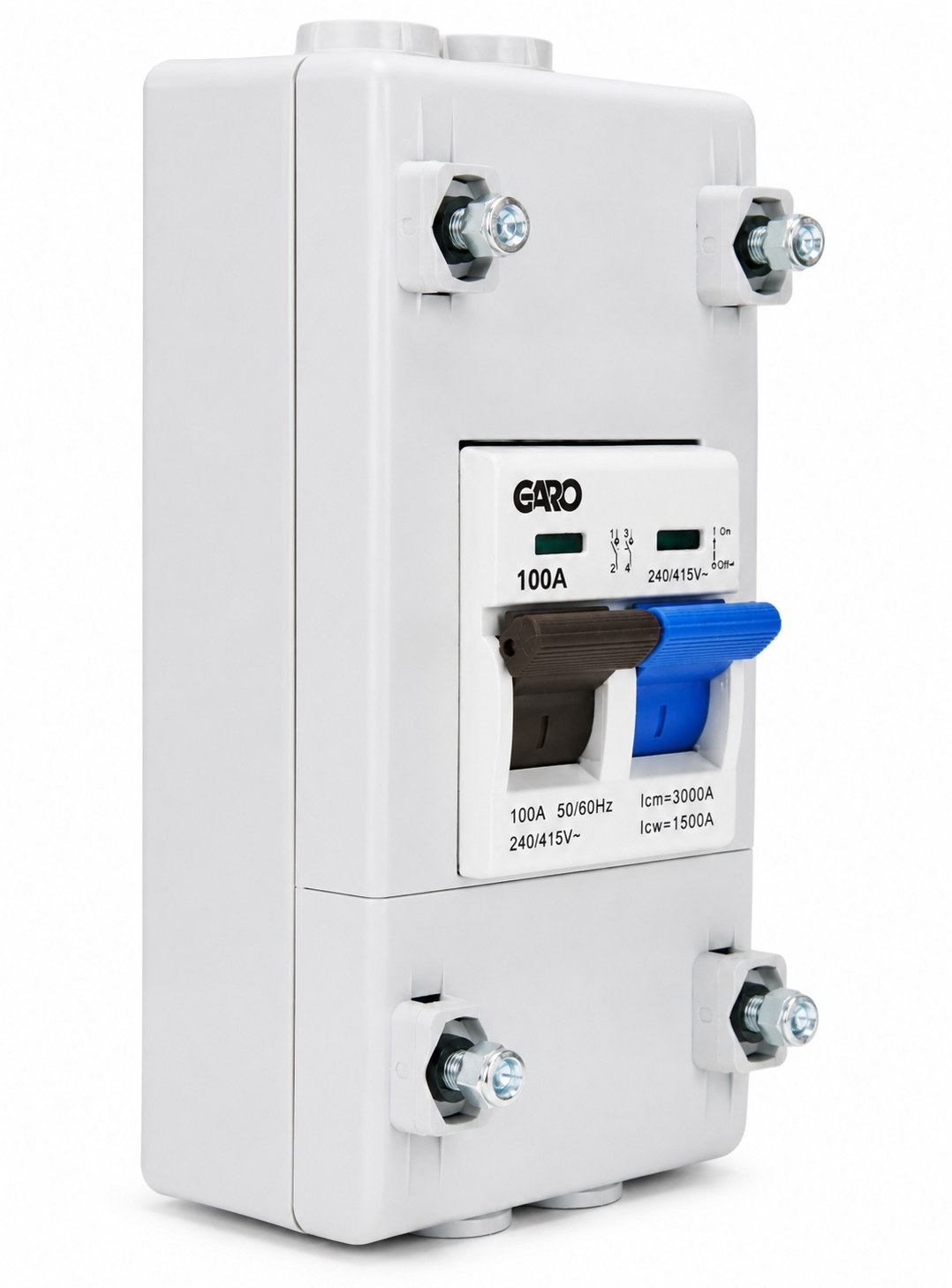

GARO GP2100M 100A 2 Pole Meter Isolator Switch | DNO Meter Disconnect
GARO GP2100M 100A 2 Pole Meter Isolator Switch | DNO Meter Disconnect
Vestibulum dapibus ultrices arcu, id varius mauris viverra ac. Aliquam erat volutpat. Pellentesque commodo ut elit at gravida.
Regular price
£12.99
Sale price
£12.99
Regular price
£23.62
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock In stock, ready to be shipped.
Share
Couldn't load pickup availability
Description
Description
Key Features:
- Genuine GARO GP2100M
- 100A rated current
- 2-pole / DP
- Meter isolator / meter disconnect
- 230/400V AC rated operational voltage
- 1000V rated insulation voltage
- 4kV rated impulse withstand voltage
- AC-22A utilisation category
- 50/60Hz AC
- 16kA rated short-time withstand current
- Built-in switch-disconnector
- IP40 protection
- DIN-rail mounting
- Mechanical red/green contact indicator
- Top or bottom supply connection
- 1–50mm² terminal capacity
- M6 terminal screws
- Maximum 3Nm terminal torque
- IEC/EN 60947-3 compliant
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GARO |
| Model | GP2100M |
| Product Type | Meter Isolator / Meter Disconnect |
| Rated Current | 100A |
| Poles | 2 Pole |
| Rated Operational Voltage | 230/400V AC |
| Rated Insulation Voltage | 1000V |
| Rated Impulse Withstand | 4kV |
| Utilisation Category | AC-22A |
| Frequency | 50/60Hz AC |
| Short-Time Withstand Current | 16kA |
| Switch Type | Built-in switch-disconnector |
| Standard | IEC/EN 60947-3 |
| Protection | IP40 |
| Device Height | 68mm |
| Device Width | 18mm/pole |
| Terminal Capacity | 1–50mm² |
| Terminal Screw | M6, Pozidrive PZ2 |
| Terminal Torque | Max 3Nm |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Contact Indicator | Mechanical red/green |
| Supply | Top or bottom |
All technical values above are taken from the uploaded GARO GP2100M specification.
