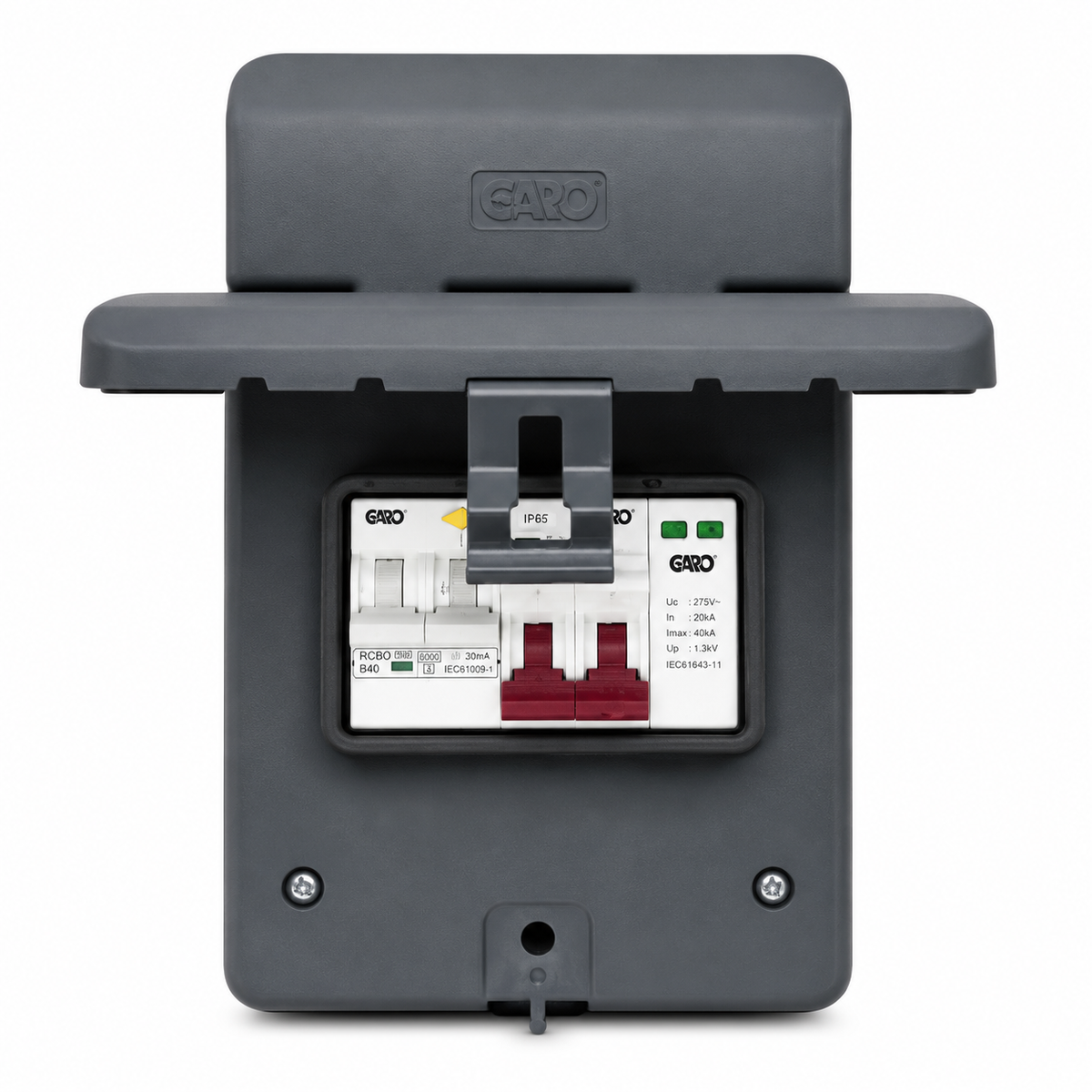

GARO GMS5EV40R 5-Way EV Consumer Unit | 40A Bi-Directional RCBO & Type 2 SPD
GARO GMS5EV40R 5-Way EV Consumer Unit | 40A Bi-Directional RCBO & Type 2 SPD
Vestibulum dapibus ultrices arcu, id varius mauris viverra ac. Aliquam erat volutpat. Pellentesque commodo ut elit at gravida.
Regular price
£57.99
Sale price
£57.99
Regular price
£105.44
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock In stock, ready to be shipped.
Share
Couldn't load pickup availability
Description
Description

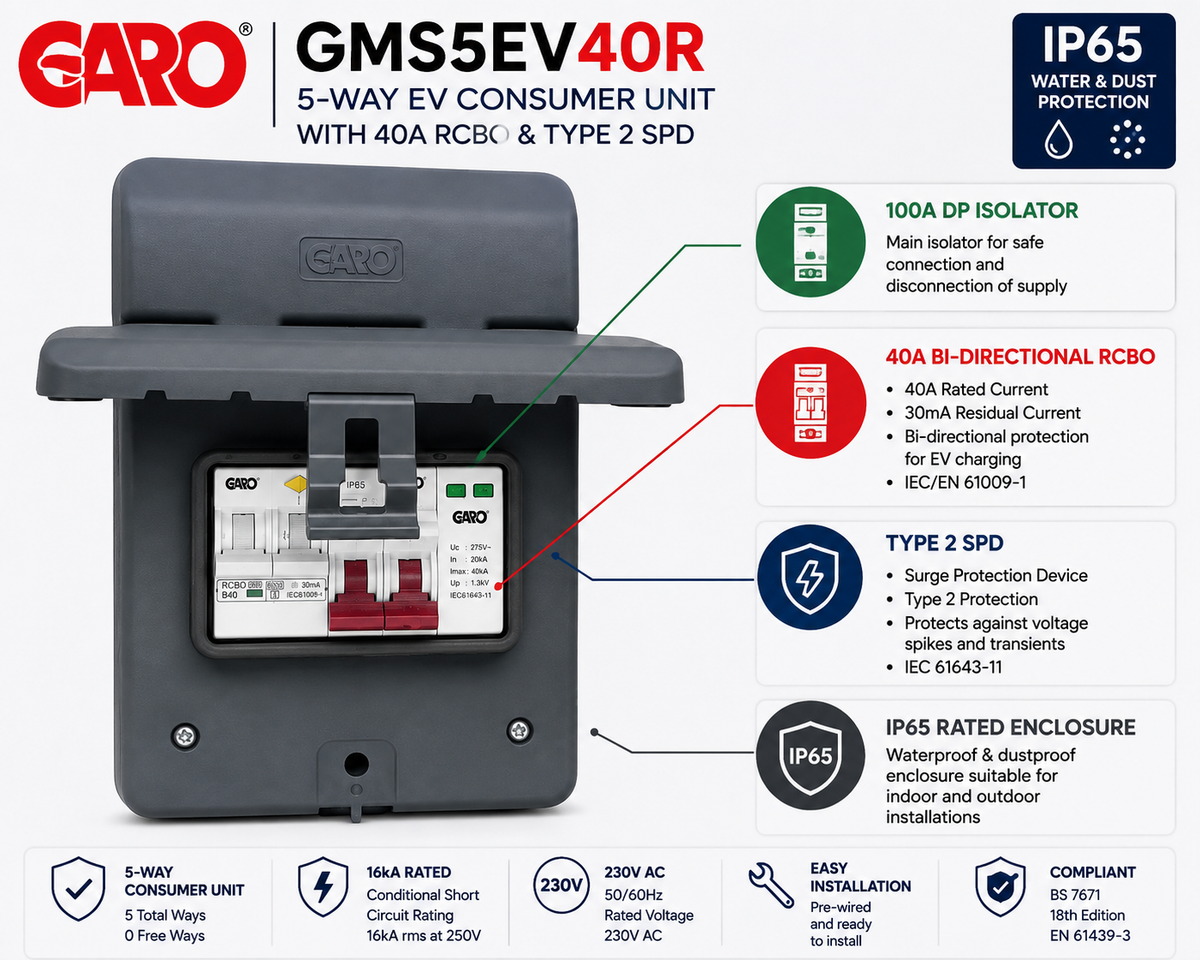

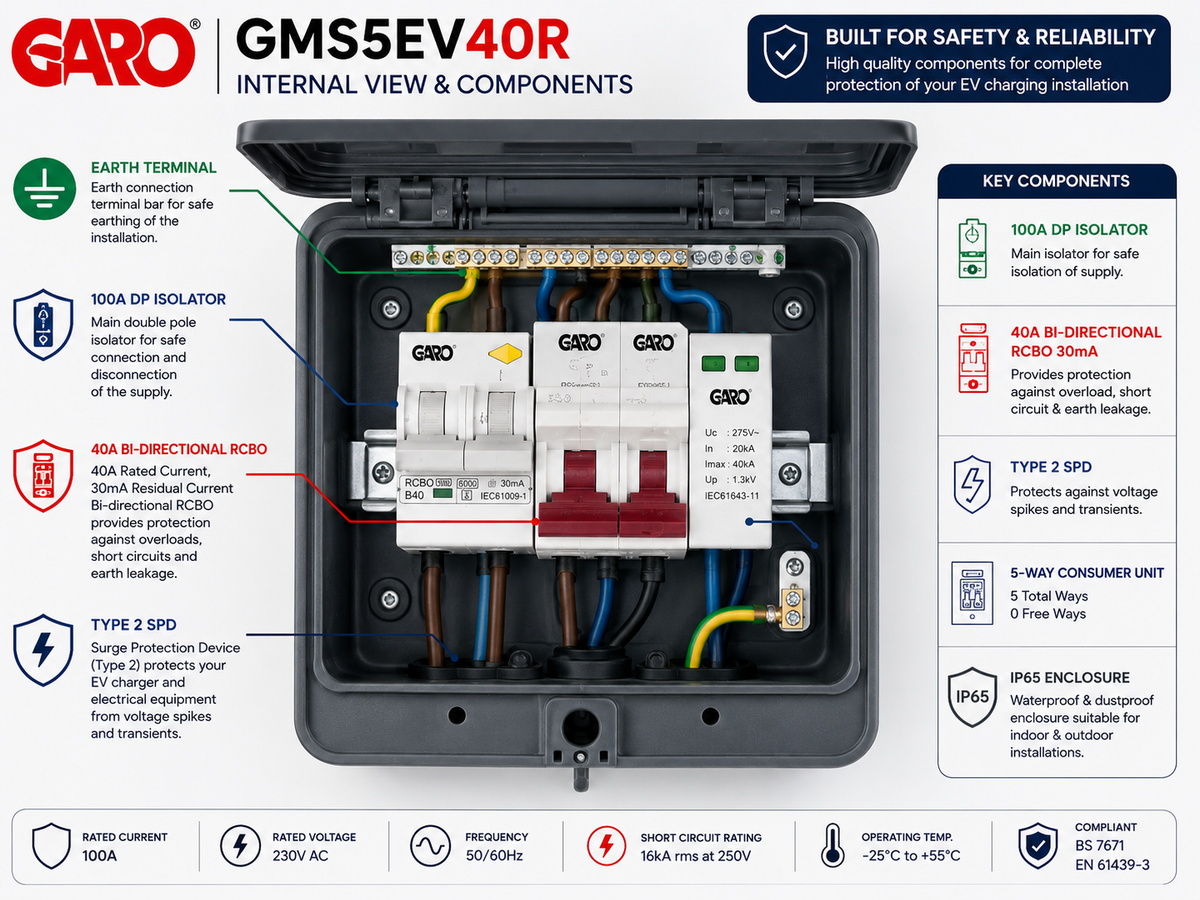

Key Features:
- GARO GMS5EV40R
- 5-way domestic consumer unit
- 100A double-pole isolator
- 40A bi-directional RCBO
- 30mA RCBO protection
- Type 2 Surge Protection Device (SPD)

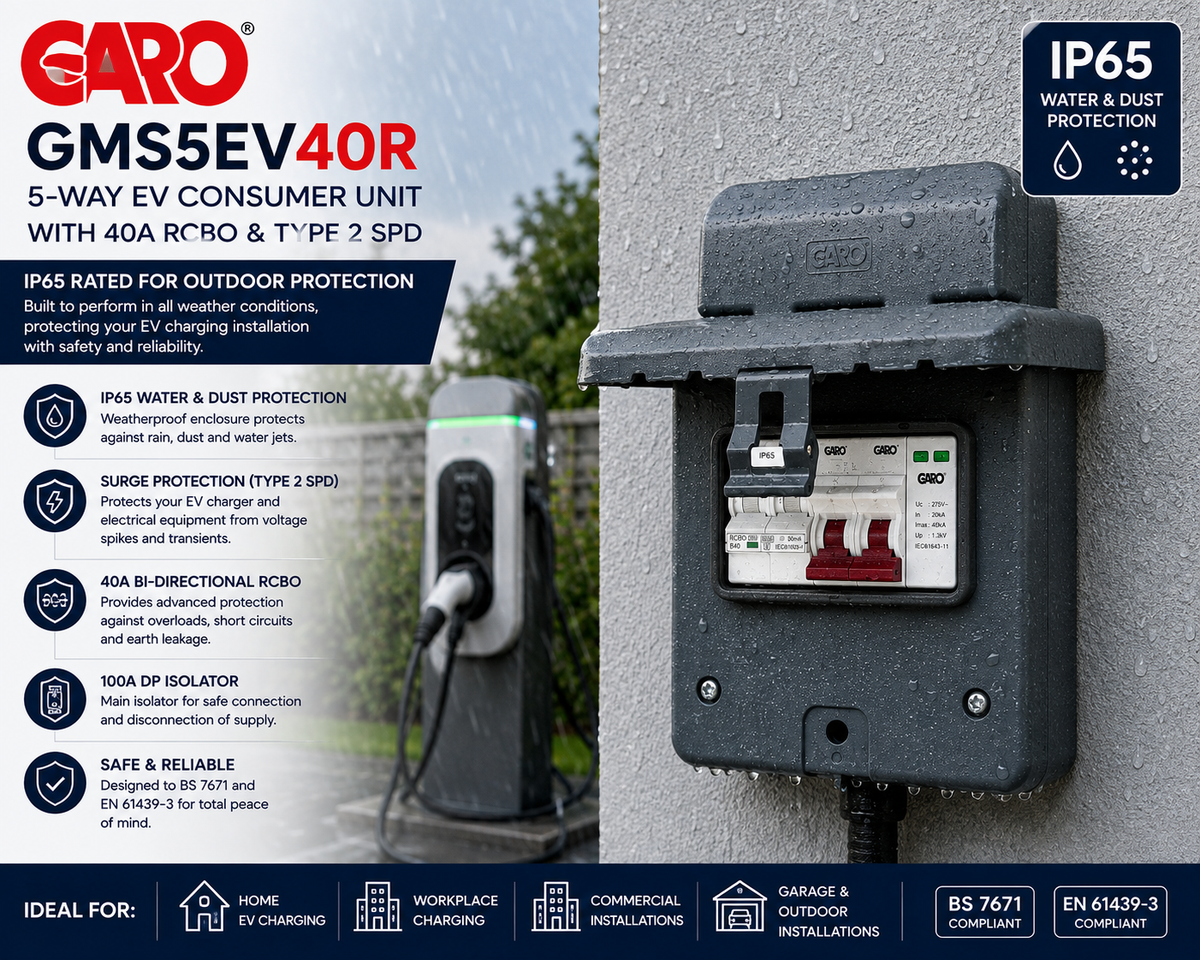

- IP65-rated enclosure
- 230V AC rated voltage
- 50/60Hz frequency
- 16kA rms conditional short-circuit rating at 250V
- 5 total ways
- 0 free ways
- 35mm terminals
- Maximum backup protection: 100A
- EN 61439-3
- BS 7671 compliance
- Domestic Consumer Units, 18th Edition
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GARO |
| Model | GMS5EV40R |
| Product Type | Domestic Consumer Unit |
| Application | EV / Domestic Electrical Installation |
| Rated Current | 100A |
| Rated Voltage | 230V AC |
| Frequency | 50/60Hz |
| Main Device | 100A DP Isolator |
| RCBO | 40A Bi-Directional |
| RCBO Sensitivity | 30mA |
| Surge Protection | Type 2 SPD |
| Conditional Short Circuit | 16kA rms at 250V |
| IP Rating | IP65 |
| Total Ways | 5 |
| Free Ways | 0 |
| Height | 240mm |
| Width | 165mm |
| Depth | 98mm |
| Terminals | 35mm |
| Maximum Backup Protection | 100A |
| Ambient Temperature | -25°C to +55°C |
| Storage Temperature | -35°C to +55°C |
| Standard | EN 61439-3 |
| Compliance | BS 7671 |
| Classification | Domestic Consumer Units, 18th Edition |
All above specifications are taken from the uploaded GARO GMS5EV40R technical specification.
