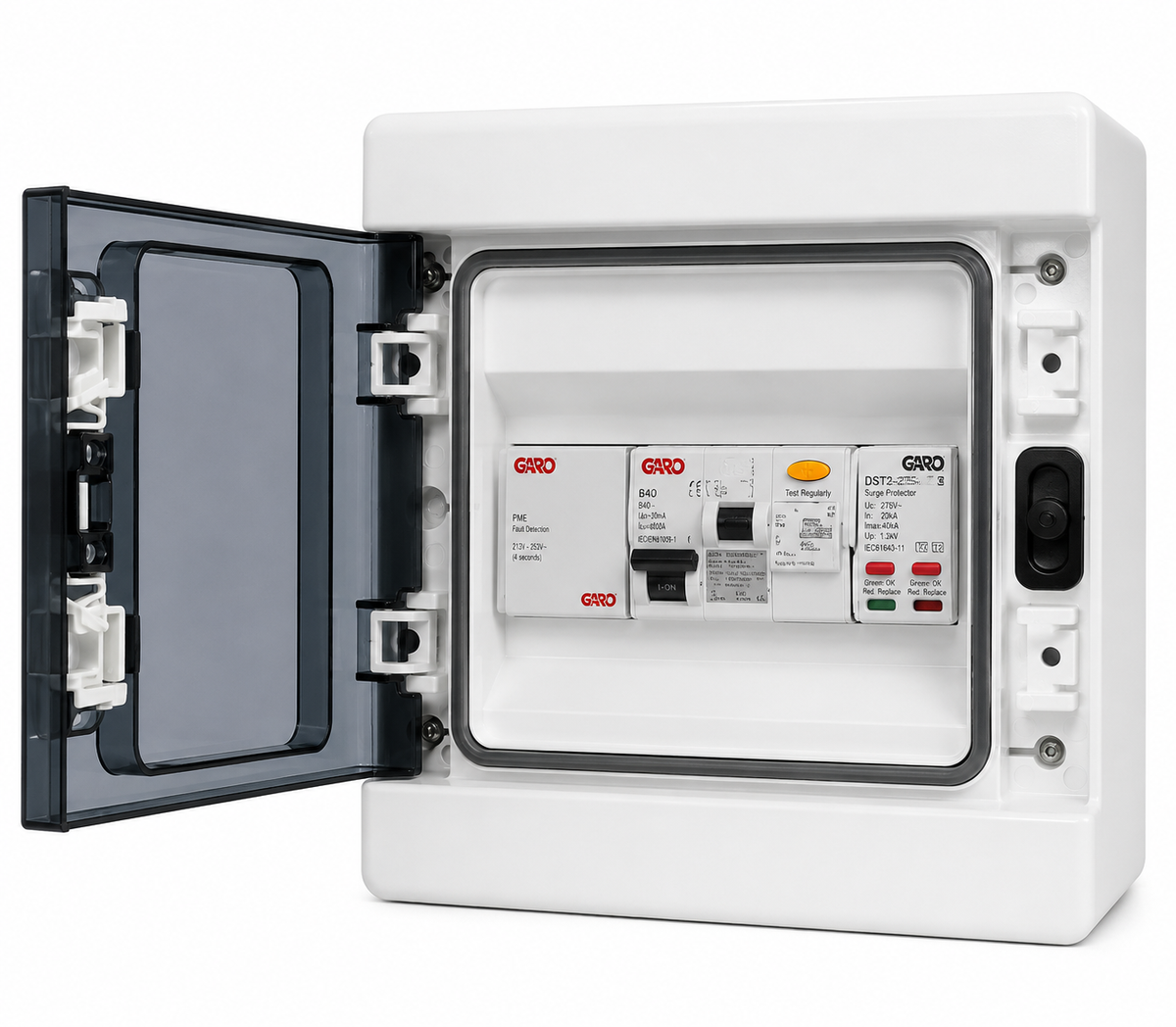

GARO GCS8EV40PME 8-Way EV Consumer Unit | 40A RCBO & PME
GARO GCS8EV40PME 8-Way EV Consumer Unit | 40A RCBO & PME
Vestibulum dapibus ultrices arcu, id varius mauris viverra ac. Aliquam erat volutpat. Pellentesque commodo ut elit at gravida.
Regular price
£179.00
Sale price
£179.00
Regular price
£325.45
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock In stock, ready to be shipped.
Share
Couldn't load pickup availability
Description
Description

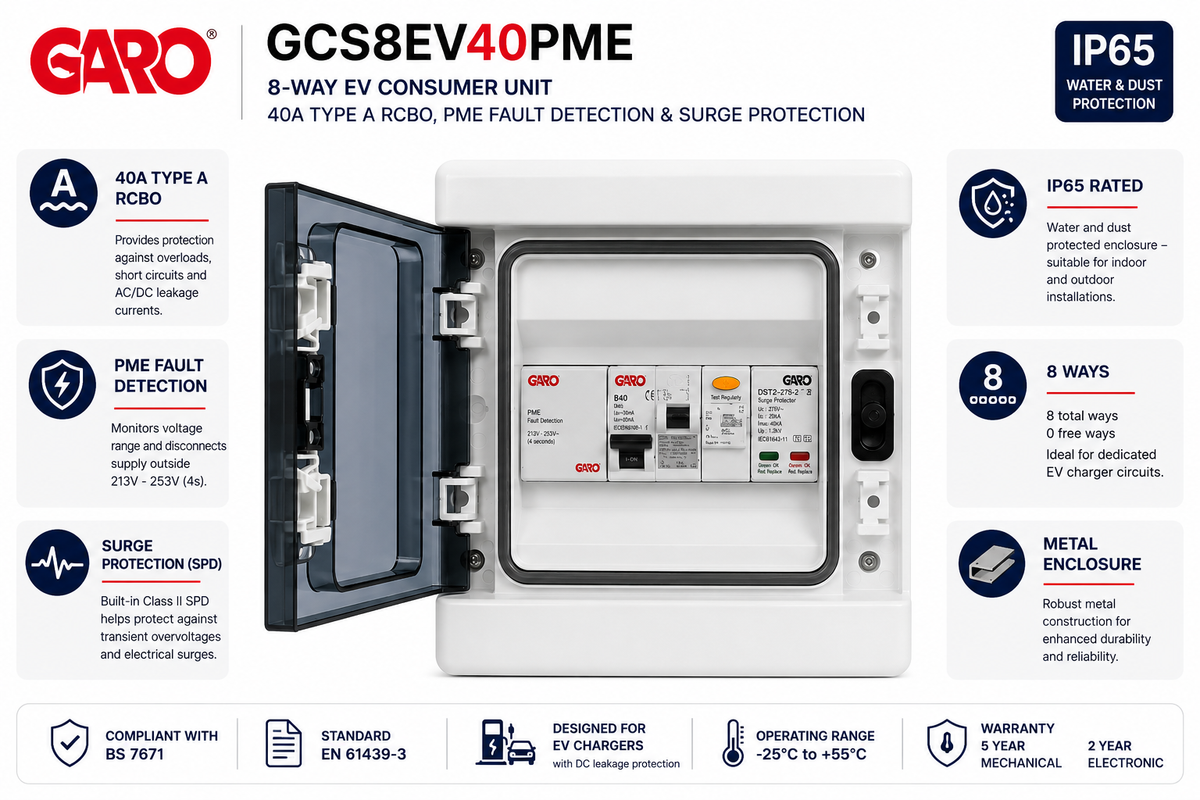

Key Features:
- GARO GCS8EV40PME
- 8-way EV consumer unit
- 40A Type A RCBO
- PME fault detection
- Integrated surge protection

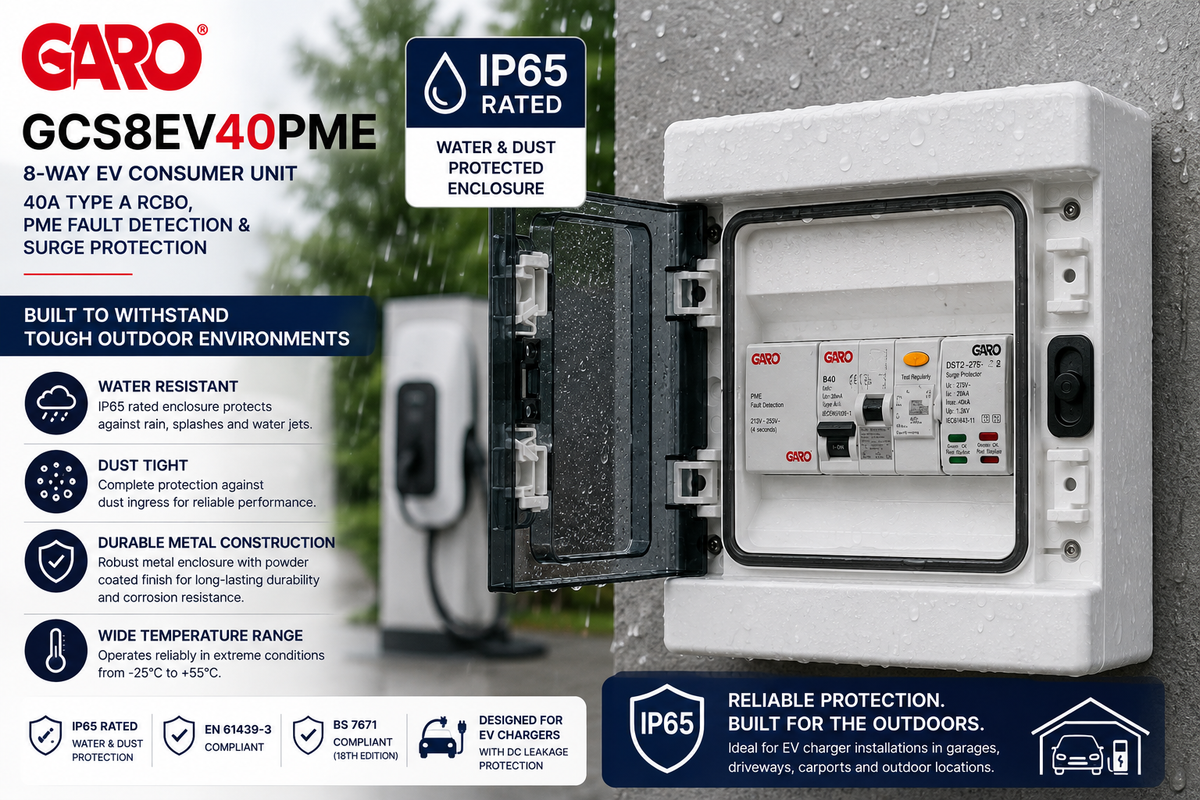

- IP65 degree of protection
- 230V AC rated voltage
- 50/60Hz frequency
- 16kA rms conditional short-circuit rating at 250V
- 8 total ways
- 0 free ways
- Metal enclosure
- 25mm terminals
- Designed for EV chargers with DC leakage protection
- EN 61439-3
- BS 7671 compliance
- 5-year mechanical component warranty
- 2-year electronic component warranty

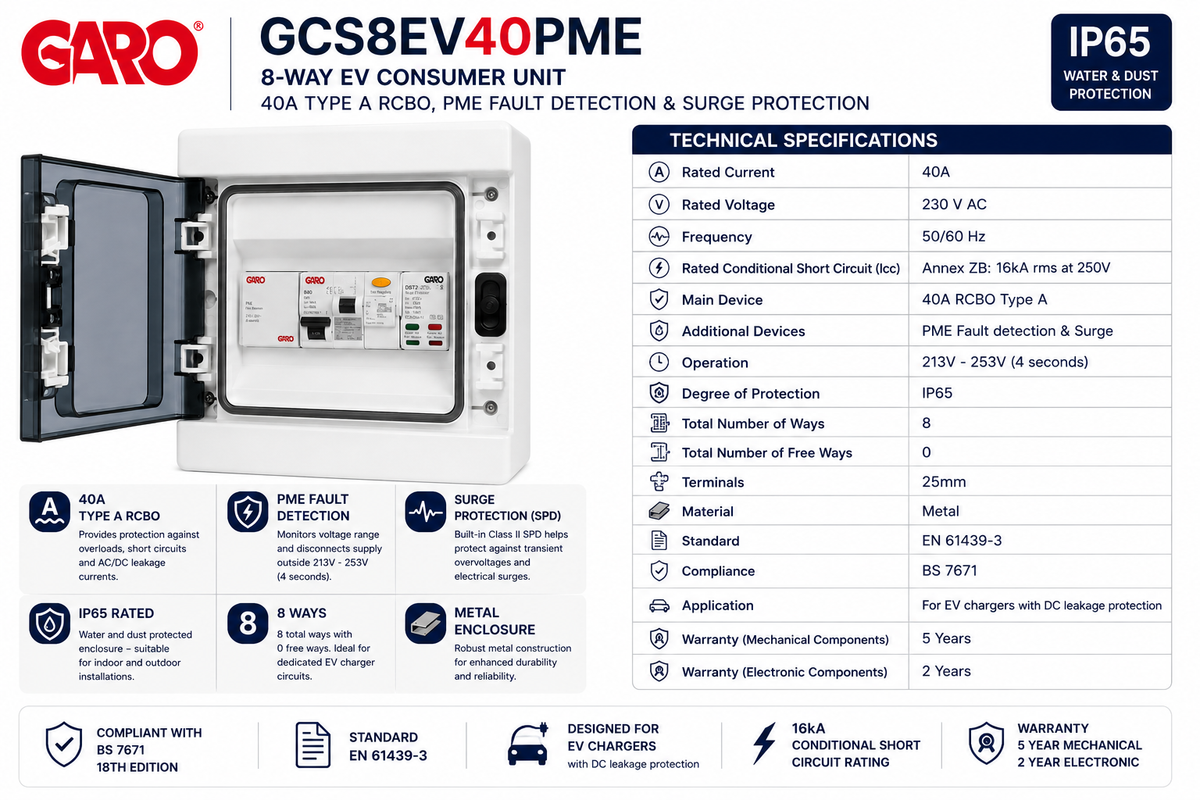

Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GARO |
| Model | GCS8EV40PME |
| Product Type | EV Consumer Unit |
| Application | EV Charging |
| Rated Current | 40A |
| Rated Voltage | 230V AC |
| Frequency | 50/60Hz |
| Main Device | 40A Type A RCBO |
| Additional Devices | PME Fault Detection & Surge Protection |
| Operation | 213V - 253V (4 seconds) |
| IP Rating | IP65 |
| Total Ways | 8 |
| Free Ways | 0 |

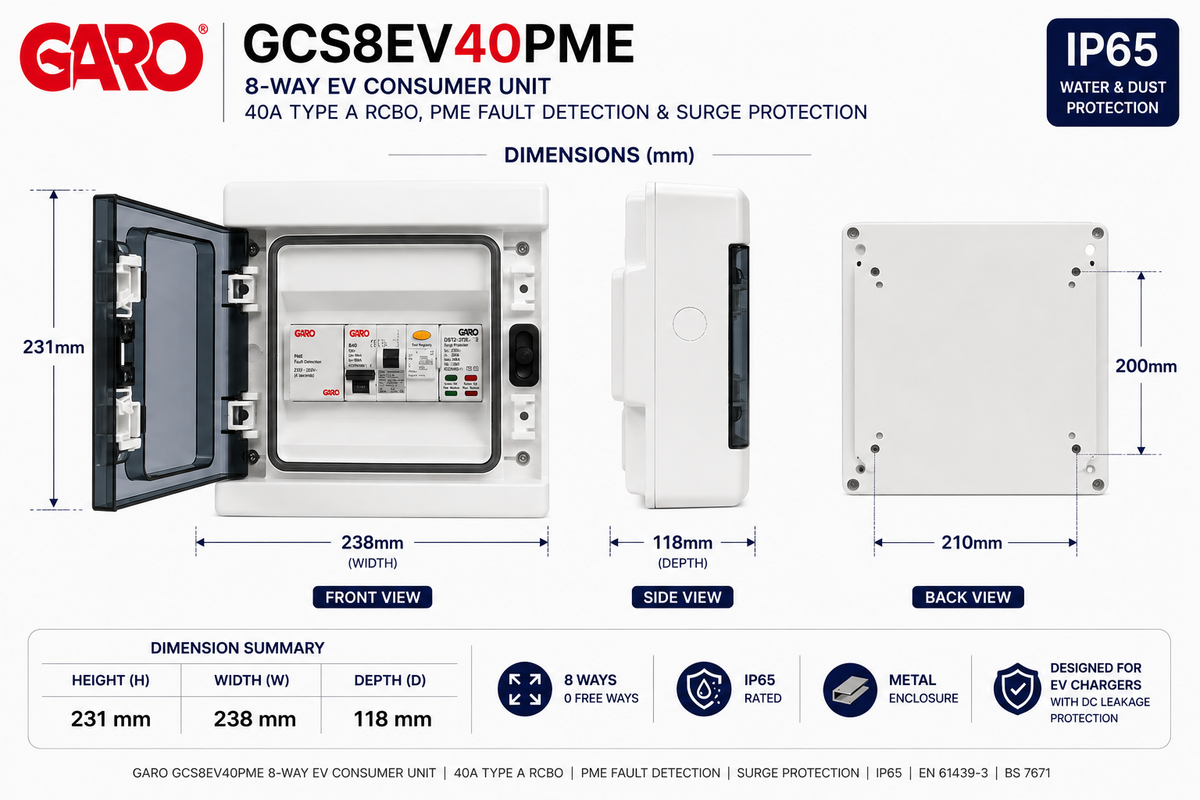

| Height | 231mm |
| Width | 238mm |
| Depth | 118mm |
| Terminals | 25mm |
| Material | Metal |
| Standard | EN 61439-3 |
| Compliance | BS 7671 |
| Application Note | For EV chargers with DC leakage protection |
| Mechanical Warranty | 5 Years |
| Electronic Warranty | 2 Years |
