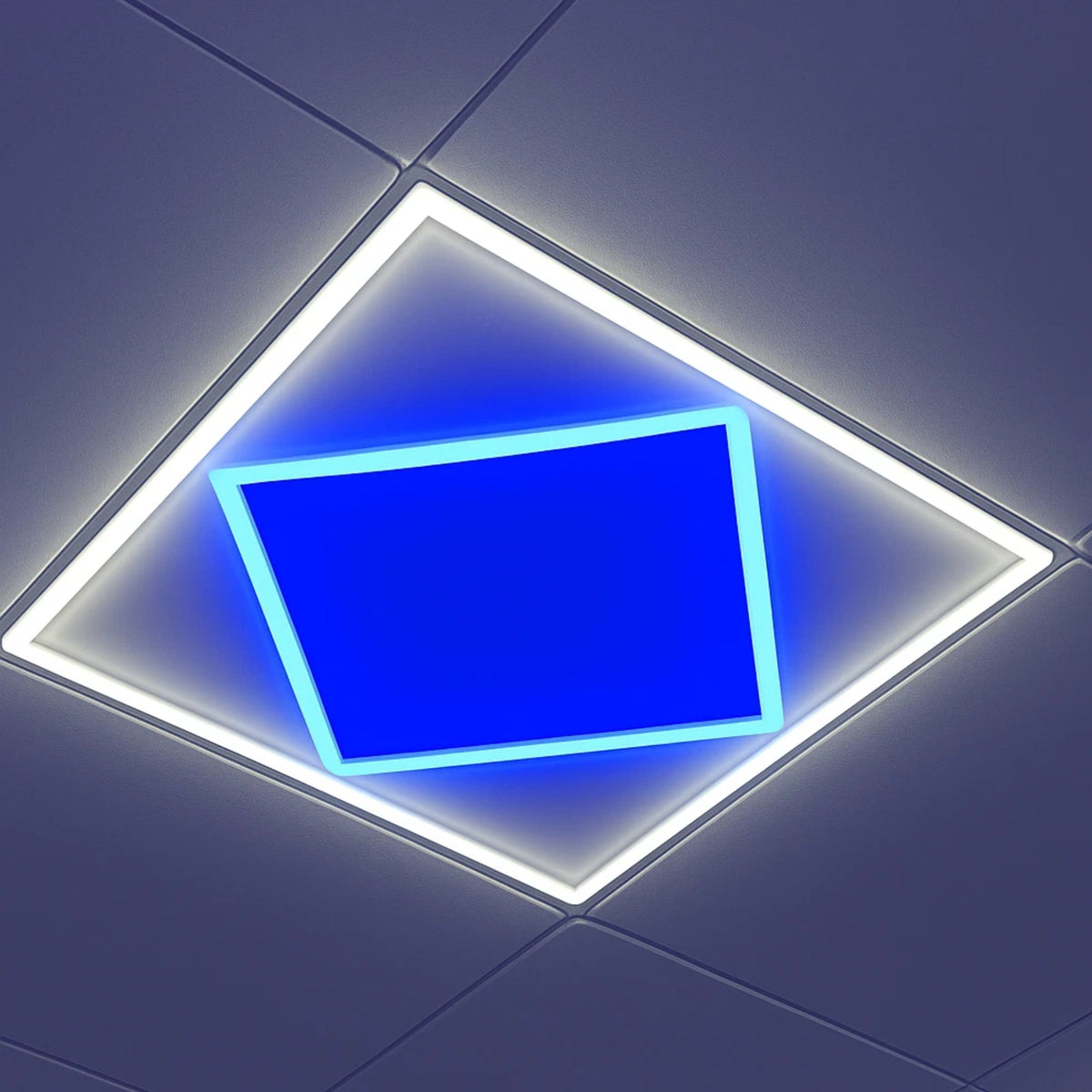

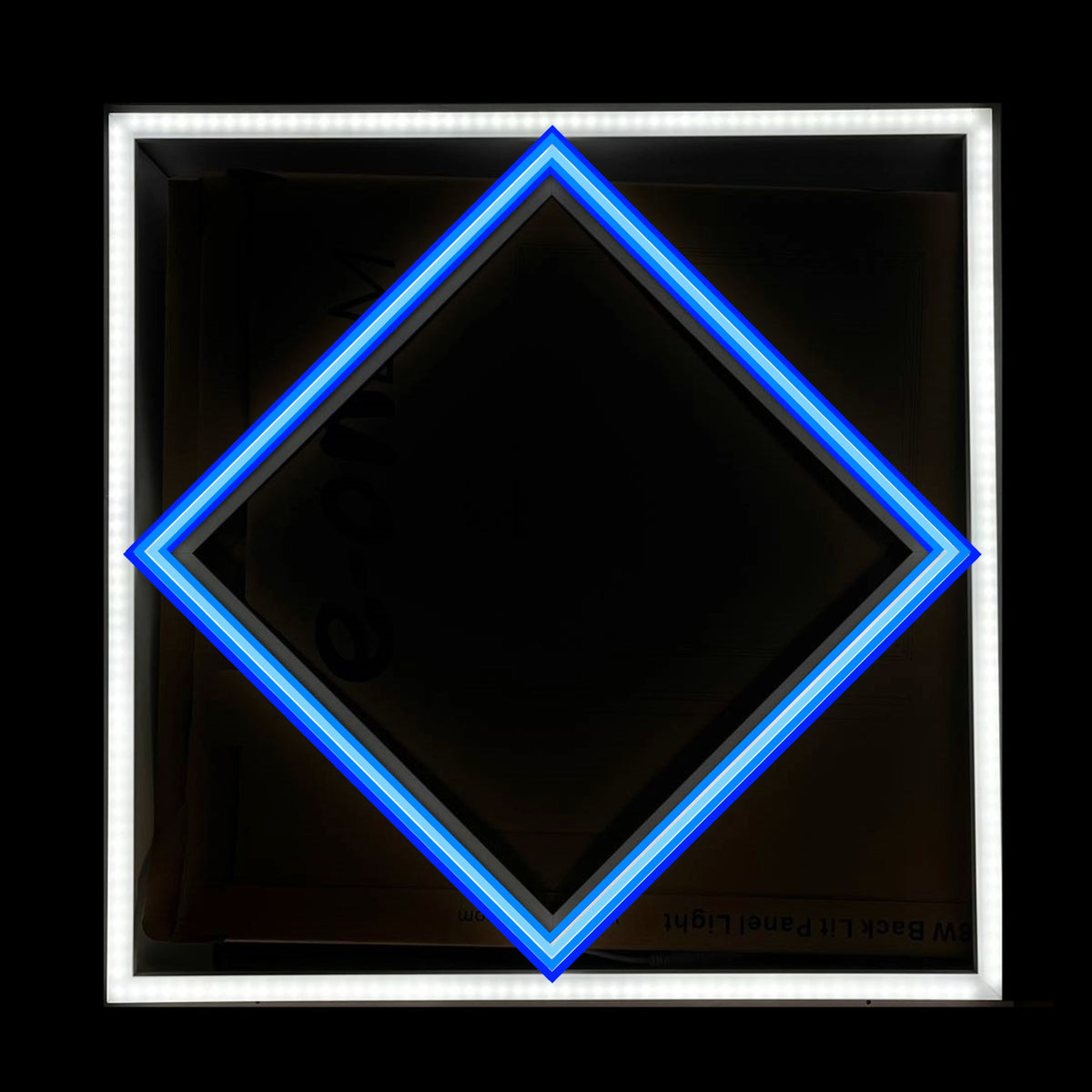

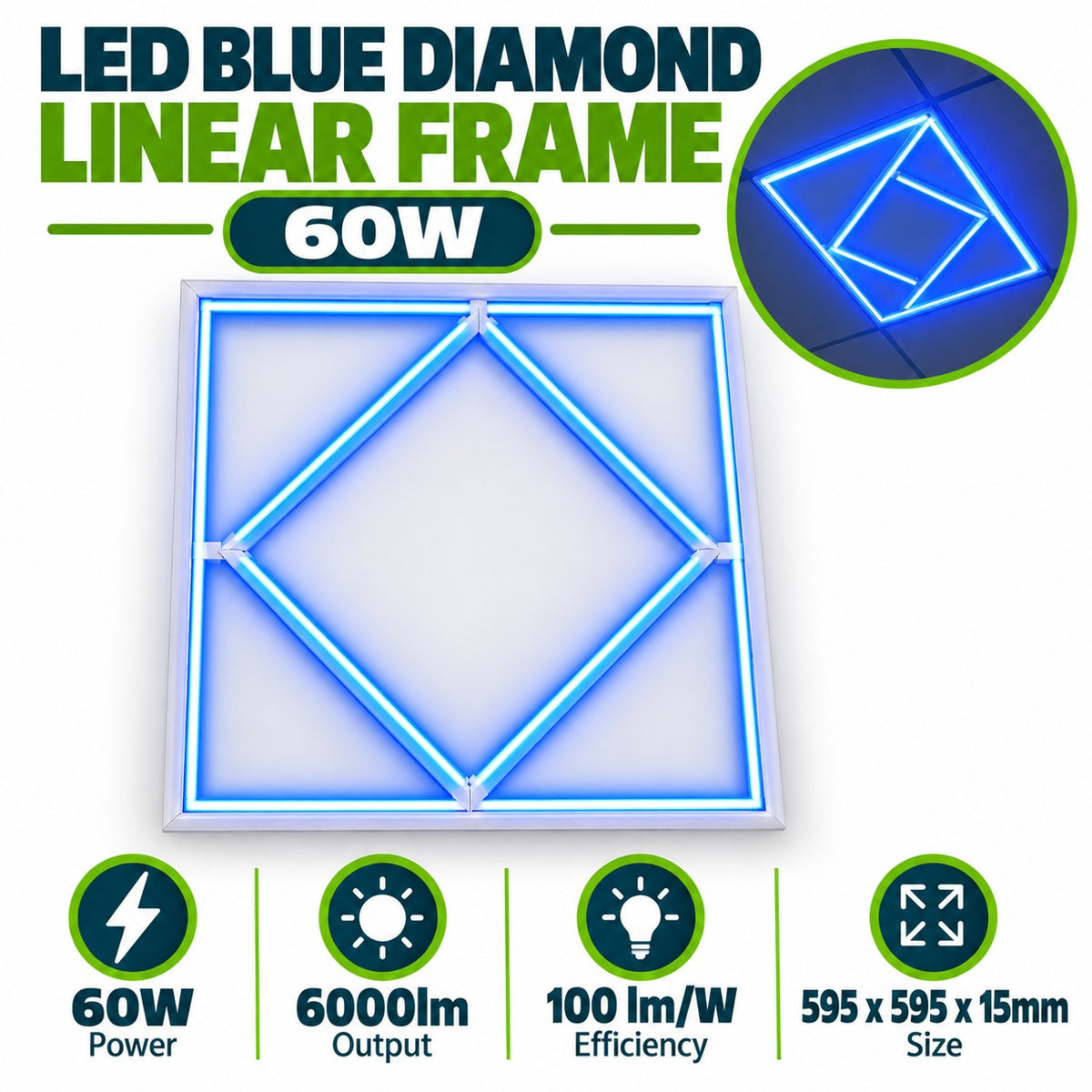

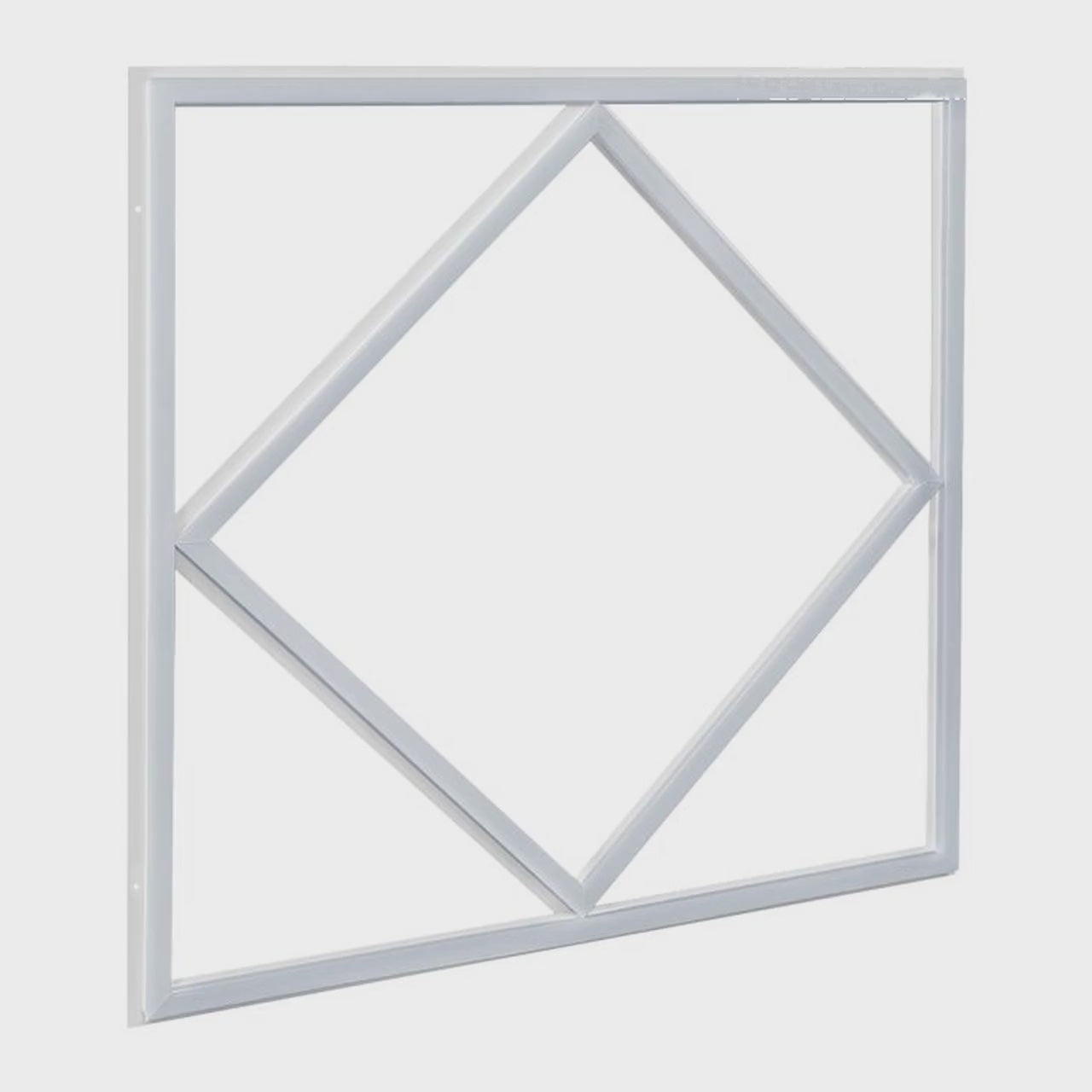

EX-BDLF1 Blue Diamond Linear Frame Light — 60W, 600×600, 3 Switch Modes. A decorative LED ceiling panel that turns a standard 600×600 ceiling grid into a feature. A crisp white outer frame surrounds a bold blue diamond accent, giving offices, retail spaces, receptions, salons and modern living spaces a distinctive ceiling centrepiece.

The panel runs at 60W with an efficacy of 100 lumens per watt, a 120° beam angle and Ra >80 colour rendering, in a slim 15mm aluminium frame with a polycarbonate cover. Power factor is >0.9 and surge protection is >2KV, with a high power factor driver for flicker-free light.

3 Switch Modes — please read

The supplier price list describes this model (EX-BDLF1) as having 3 switch modes. The supplier datasheet does not detail what the three modes are — it gives no mode values, no colour-temperature steps and no switch description — so we do not claim any specific mode behaviour here. What is verified is the model designation and the price-list description.

Key features

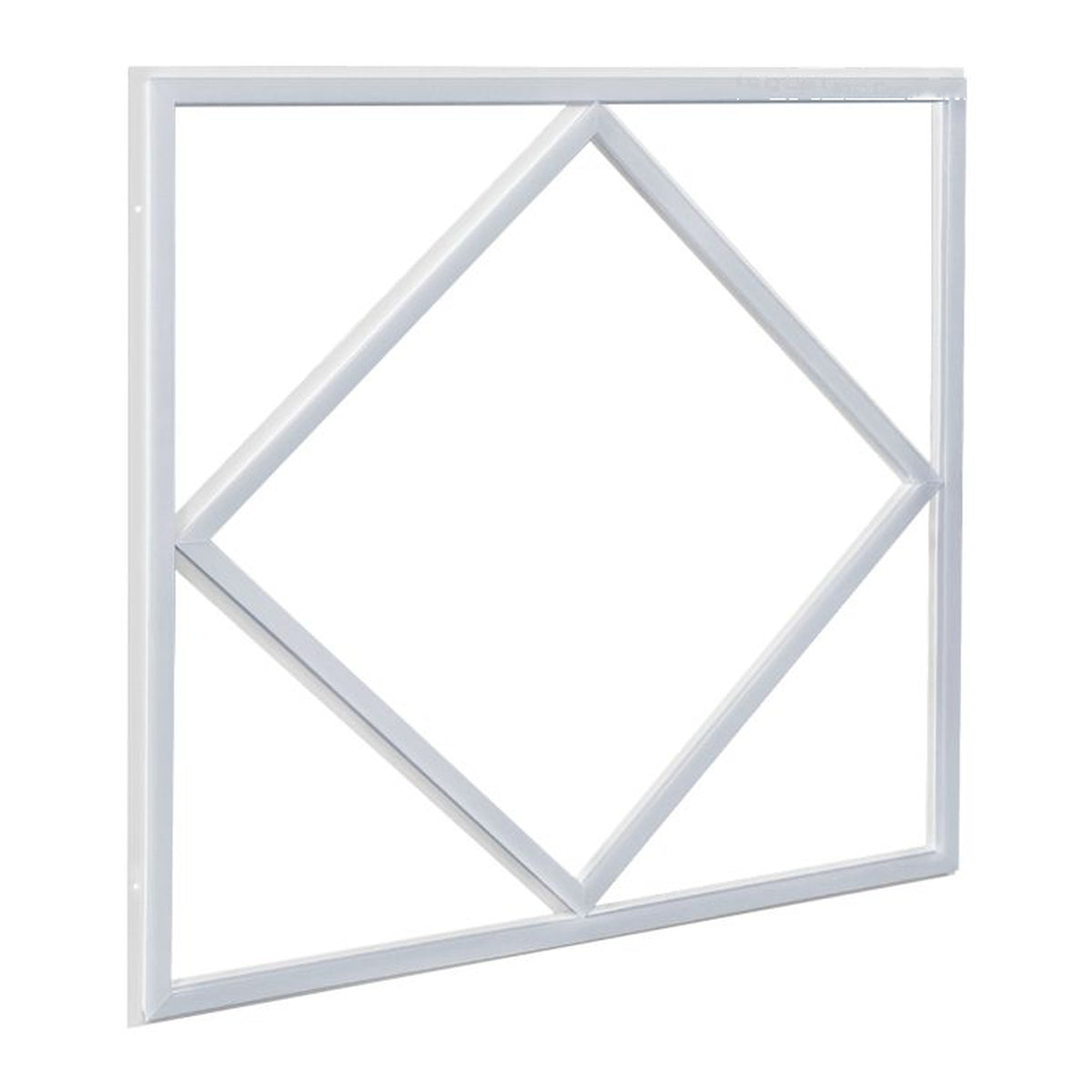

• Decorative blue diamond frame — white outer frame with a blue inner diamond accent
• 60W, 100 lm/W efficient LED panel — bright, even light from a slim fitting
• 3 switch modes (per supplier price list; modes not detailed in datasheet)

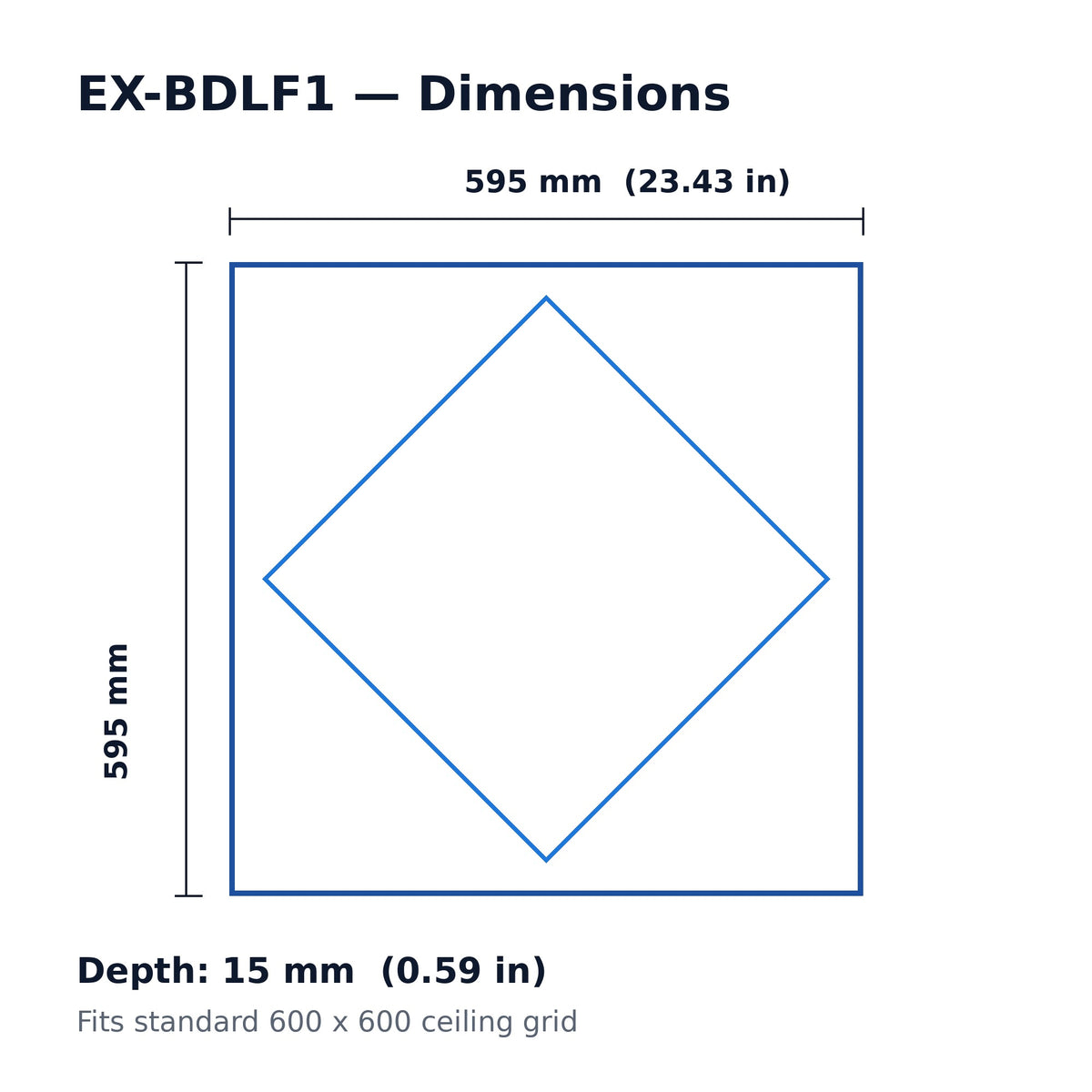

• Slim 15mm profile — 595 × 595 × 15mm, fits a standard 600×600 ceiling grid

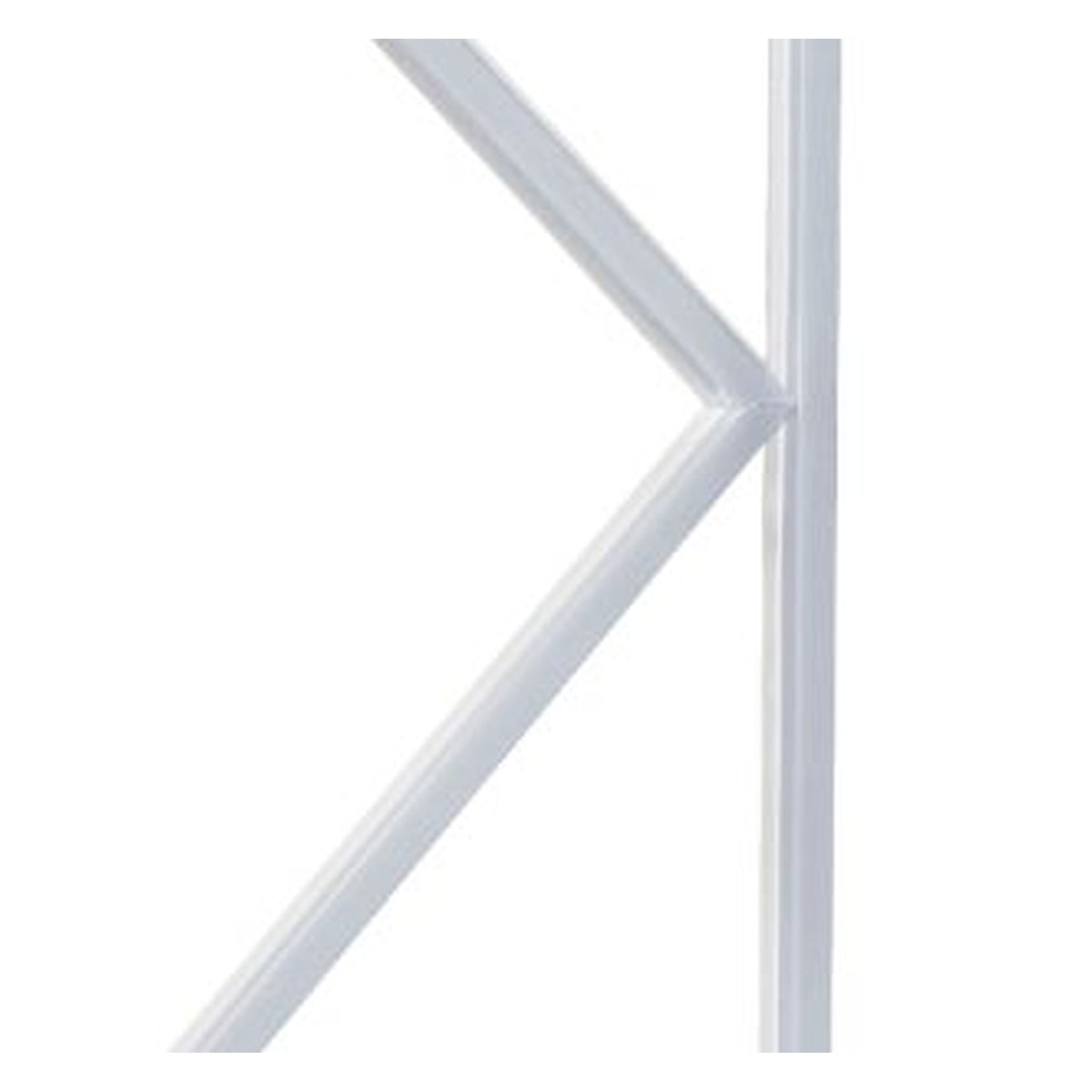

• Aluminium frame with PC cover — economic, elegant, efficient

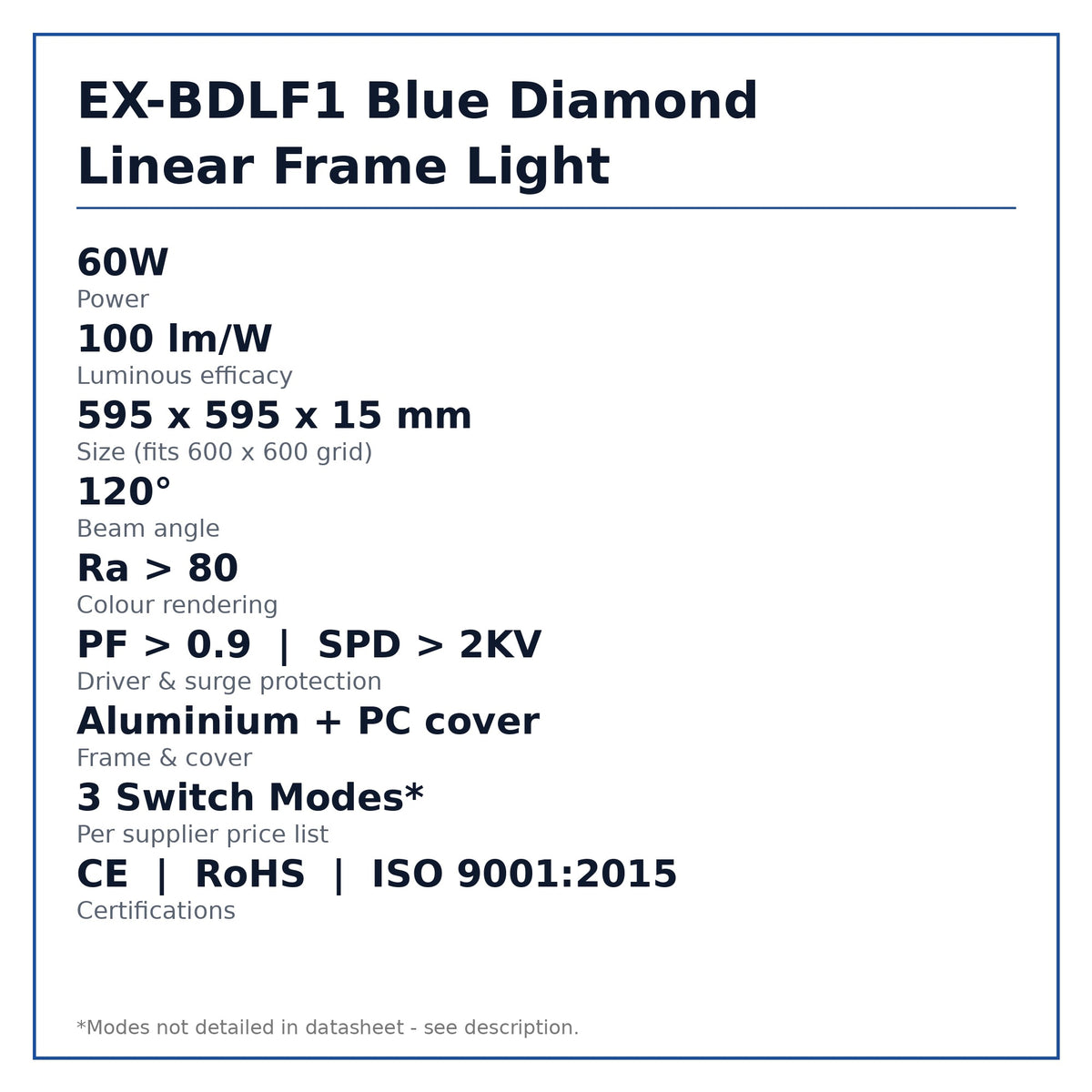

• 120° beam angle, Ra >80, PF >0.9, SPD >2KV
• High power factor driver, flicker-free eye protection
• CE and RoHS certified; manufactured under ISO 9001:2015

Specifications

Not stated in the supplier documents: colour temperature (CCT), IP rating, input voltage, dimming, lifespan and warranty are not stated in the datasheet or price list for this model, so they are not claimed on this listing.

What's included

• 1 × Blue Diamond Linear Frame Light panel (EX-BDLF1, 60W)

Box contents beyond the panel itself are not stated in the supplier documents, so nothing further is listed.

Compatibility & installation

Fits a standard 600×600 ceiling grid and most gypsum ceilings (per supplier datasheet). Professional installation is recommended. Check ceiling grid compatibility and electrical requirements before installation.

FAQs

What size ceiling does it fit? The panel measures 595 × 595 × 15mm and fits a standard 600×600 ceiling grid or gypsum ceiling.

What are the 3 switch modes? The supplier price list describes this model as having 3 switch modes, but the datasheet does not detail the modes. We have not invented mode values — please check the datasheet description before ordering if a specific mode behaviour matters for your installation.

What colour temperature is it? The supplier documents do not state a colour temperature (CCT) for this model, so none is claimed.

Is it a single panel or a pack? This listing is for a single panel (1 × EX-BDLF1).

How is it different from the 227015 Blue Diamond panel? EX-BDLF1 is the supplier's distinct model with 3 switch modes per the price list. Power, size and efficacy are the same as the 227015 model.

Is it dimmable? Dimming is not stated in the supplier documents, so it is not claimed.
