Diamond Linear Frame LED Ceiling Light — 60W, 6000 Lumens, 6500K Daylight

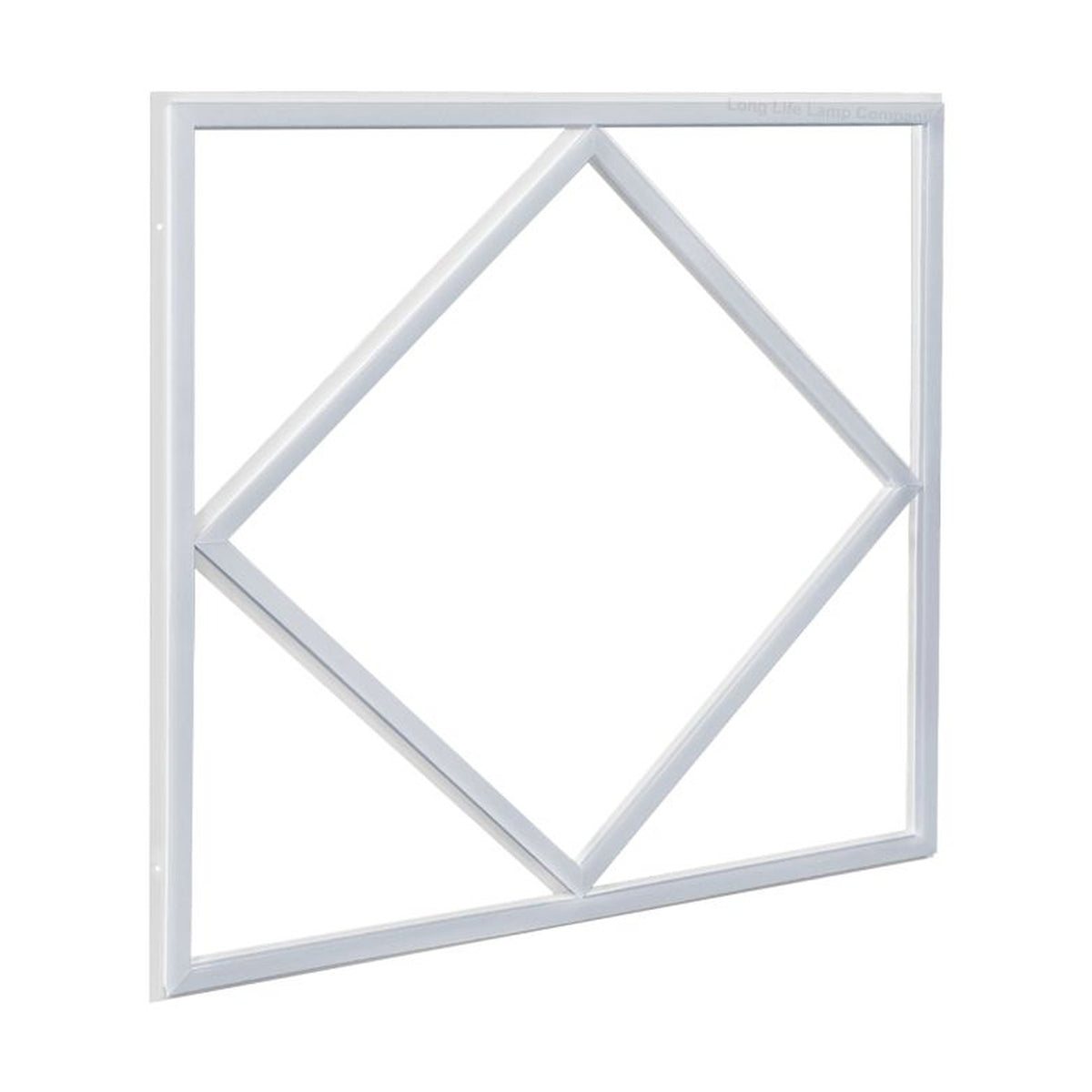

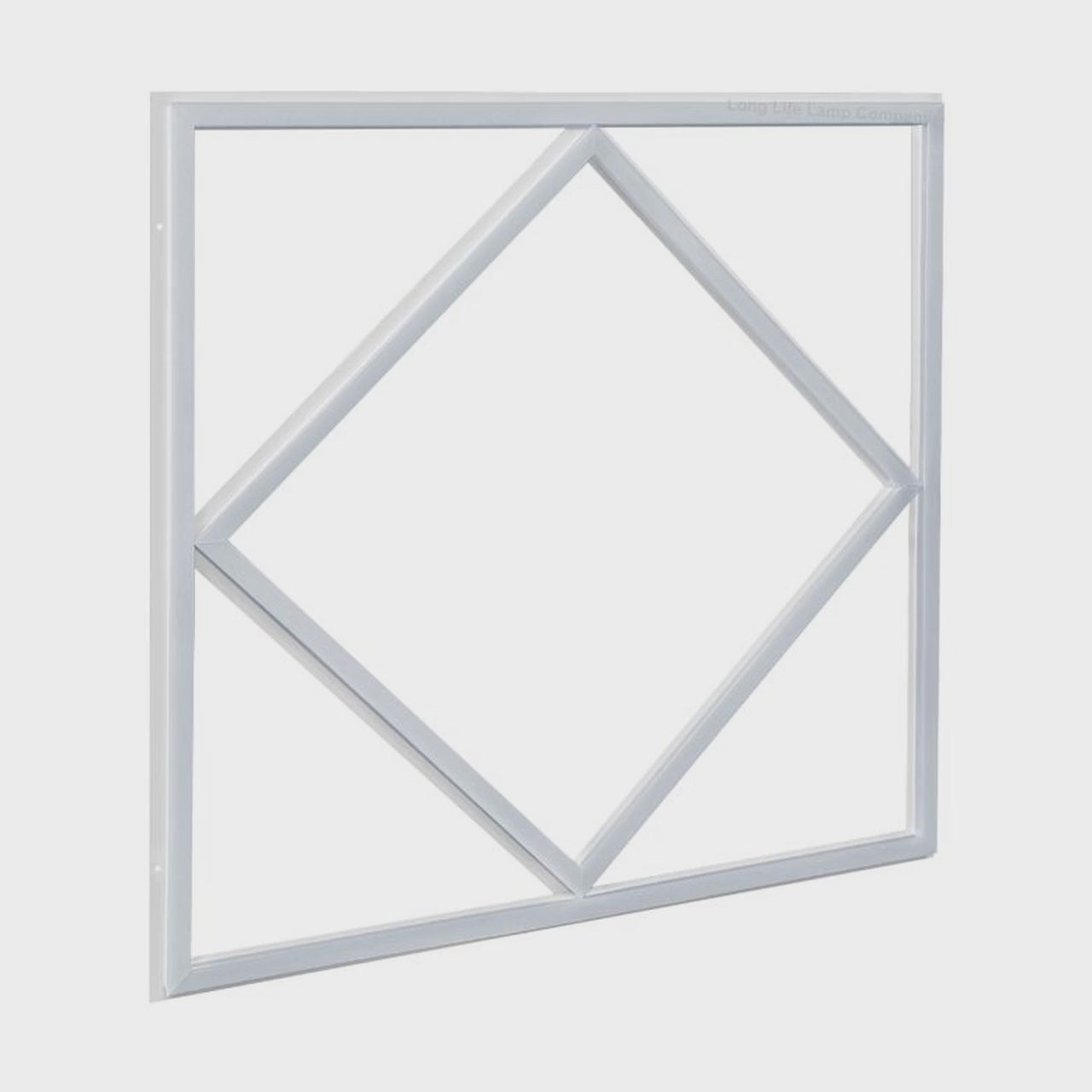

The ecolux Diamond Linear Frame LED light turns an ordinary ceiling grid into a design feature. Instead of a flat glowing panel, a slim aluminium frame forms a bold diamond inside a square — a clean, architectural look for offices, receptions, retail spaces, classrooms, clinics and modern homes.

It produces 6000 lumens of crisp 6500K daylight white at 100 lumens per watt, with a wide 120° beam that spreads light evenly across the room. The high power factor driver (PF > 0.9) runs flicker-free, and surge protection over 2KV helps the fitting cope with everyday mains fluctuations. The 595 × 595 × 15 mm frame drops into a standard 600 × 600 ceiling grid or suits gypsum ceilings.

Each order is for ONE Diamond Linear Frame panel. Professional installation by a qualified electrician is recommended.

Key Features

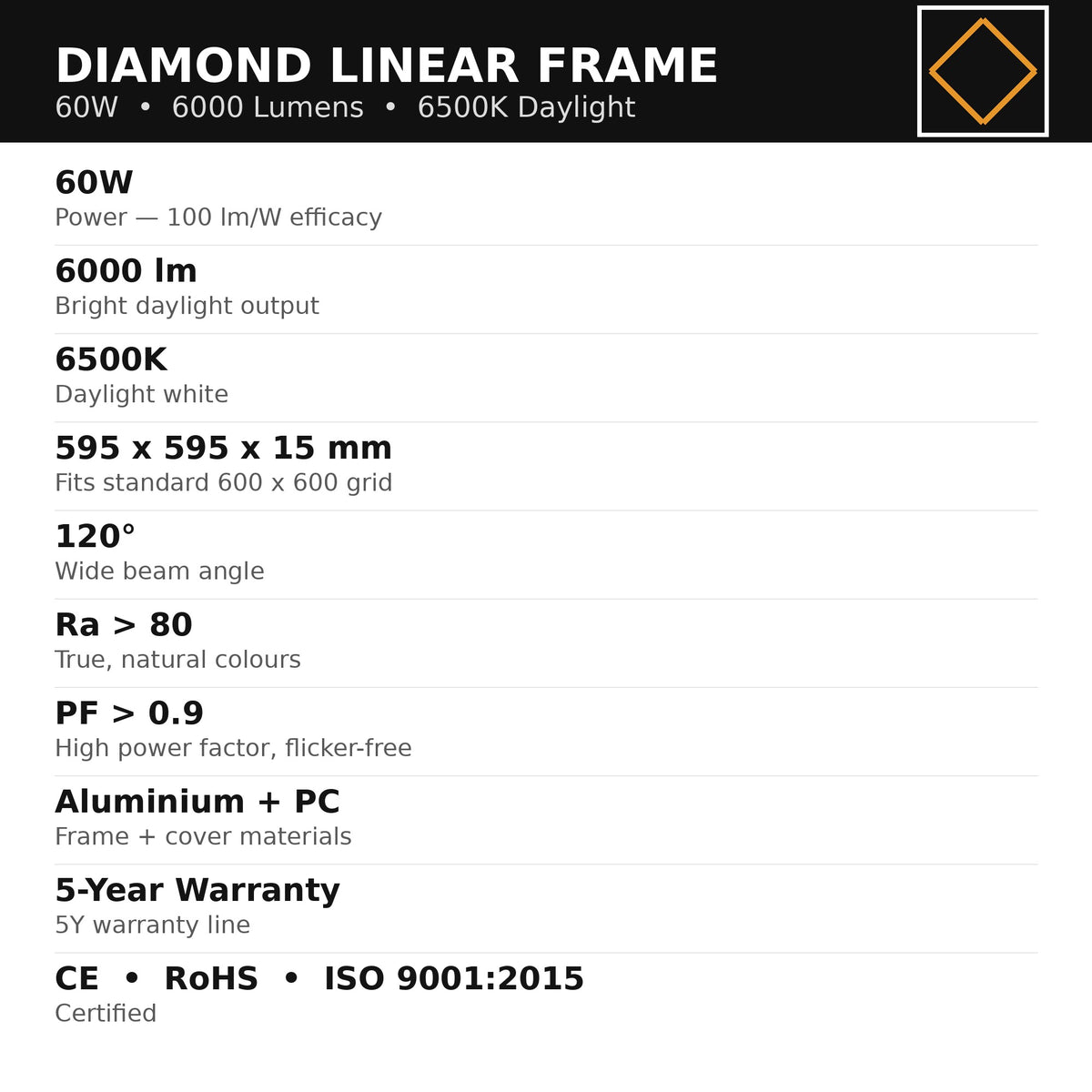

• 60W — 6000 lumens (100 lm/W efficacy)
• 6500K daylight white
• Diamond linear frame design — a decorative alternative to a plain panel

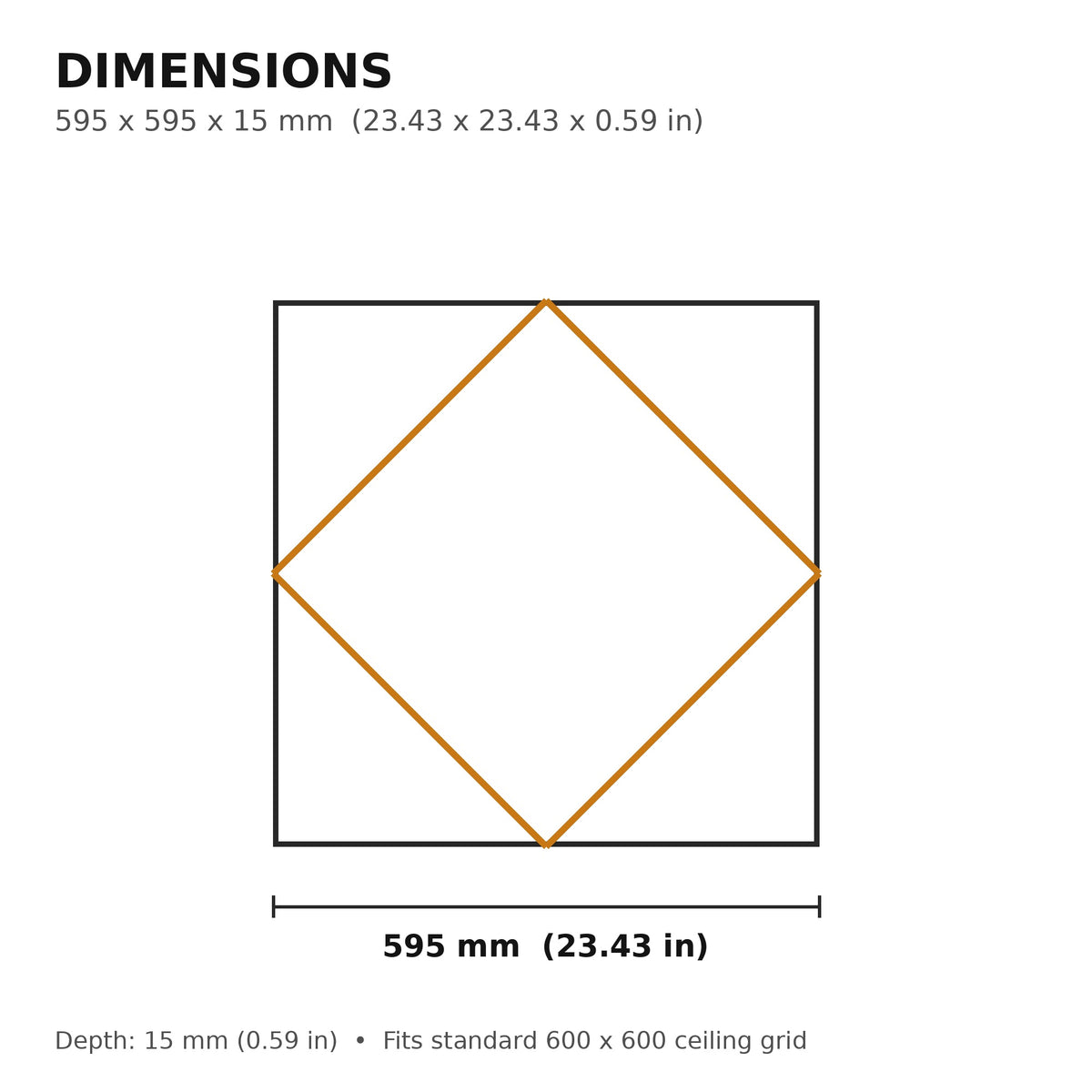

• 595 × 595 × 15 mm — fits standard 600 × 600 ceiling grids and gypsum ceilings
• Aluminium frame + PC cover
• High power factor driver (PF > 0.9), flicker-free eye protection
• 120° beam angle (111.28° at 50% Imax per datasheet distribution curve)
• 5-year warranty
• Certifications: ISO 9001:2015, CE, RoHS

Specifications

Not claimed: weight, IP rating, dimming and lifespan hours are not stated in the supplier datasheet, so they are not claimed here.

What Is Included

1 × Diamond Linear Frame panel (DLF60-5Y-6500). Box contents are not stated in the supplier datasheet, so no further contents are claimed.

Compatibility

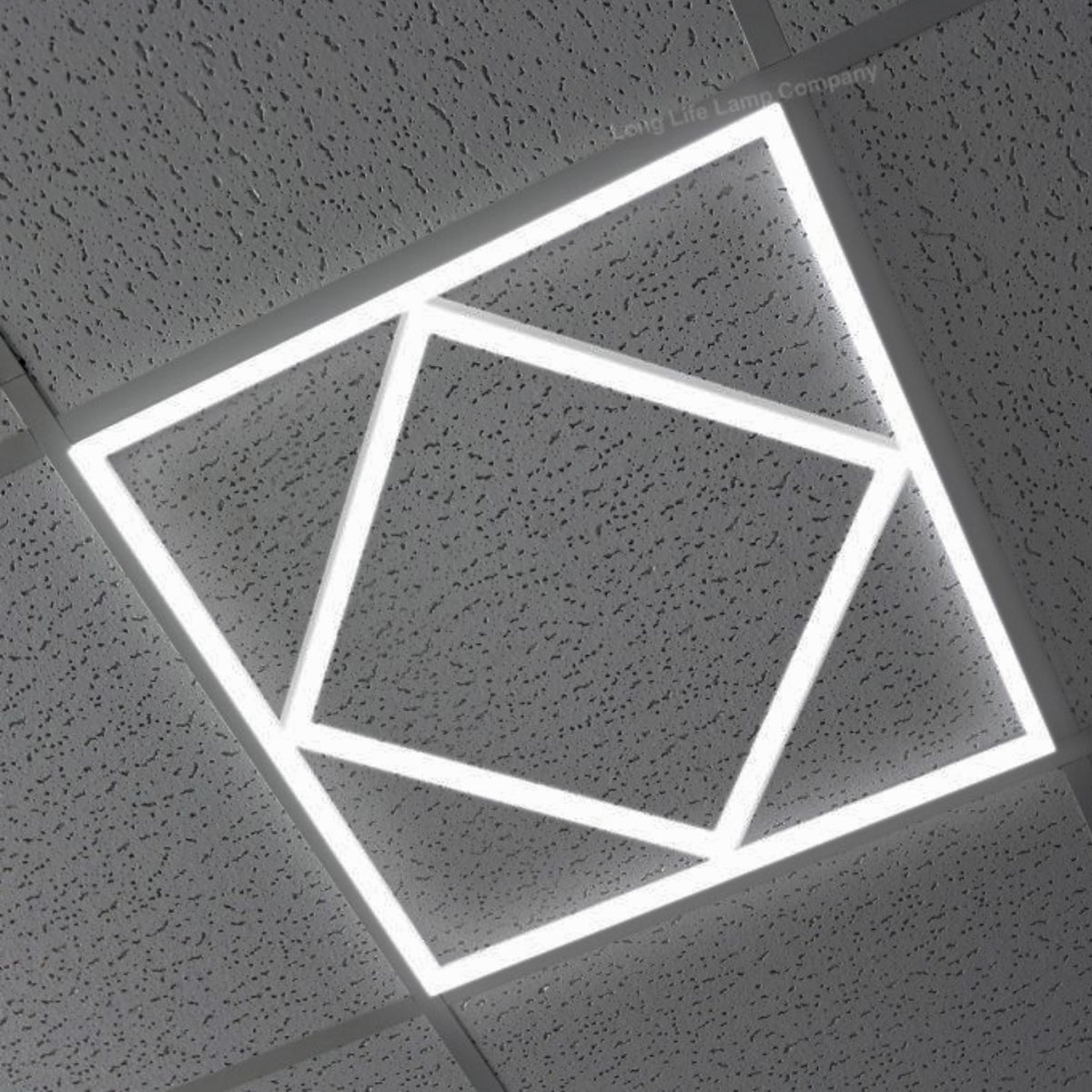

Fits a standard 600 × 600 ceiling grid; suitable for most gypsum ceilings (per supplier datasheet).

Frequently Asked Questions

What size ceiling does it fit?
A standard 600 × 600 ceiling grid; the panel itself is 595 × 595 × 15 mm. It also suits most gypsum ceilings.

How bright is it?
6000 lumens at 6500K daylight white — bright, crisp task lighting for offices, shops and classrooms.

Is it dimmable?
Dimming is not stated in the supplier datasheet, so it is not claimed.

What is included?
One Diamond Linear Frame panel per order.

What warranty does it carry?
5-year warranty.

Does it need a special ceiling?
No — it fits a standard 600 × 600 grid or gypsum ceiling. Professional installation by a qualified electrician is recommended.

What is the beam angle?
120°, with 111.28° at 50% of maximum intensity on the datasheet distribution curve.
