2M Recessed LED Aluminium Profile – Flush-Mount Channel for LED Strip Lights

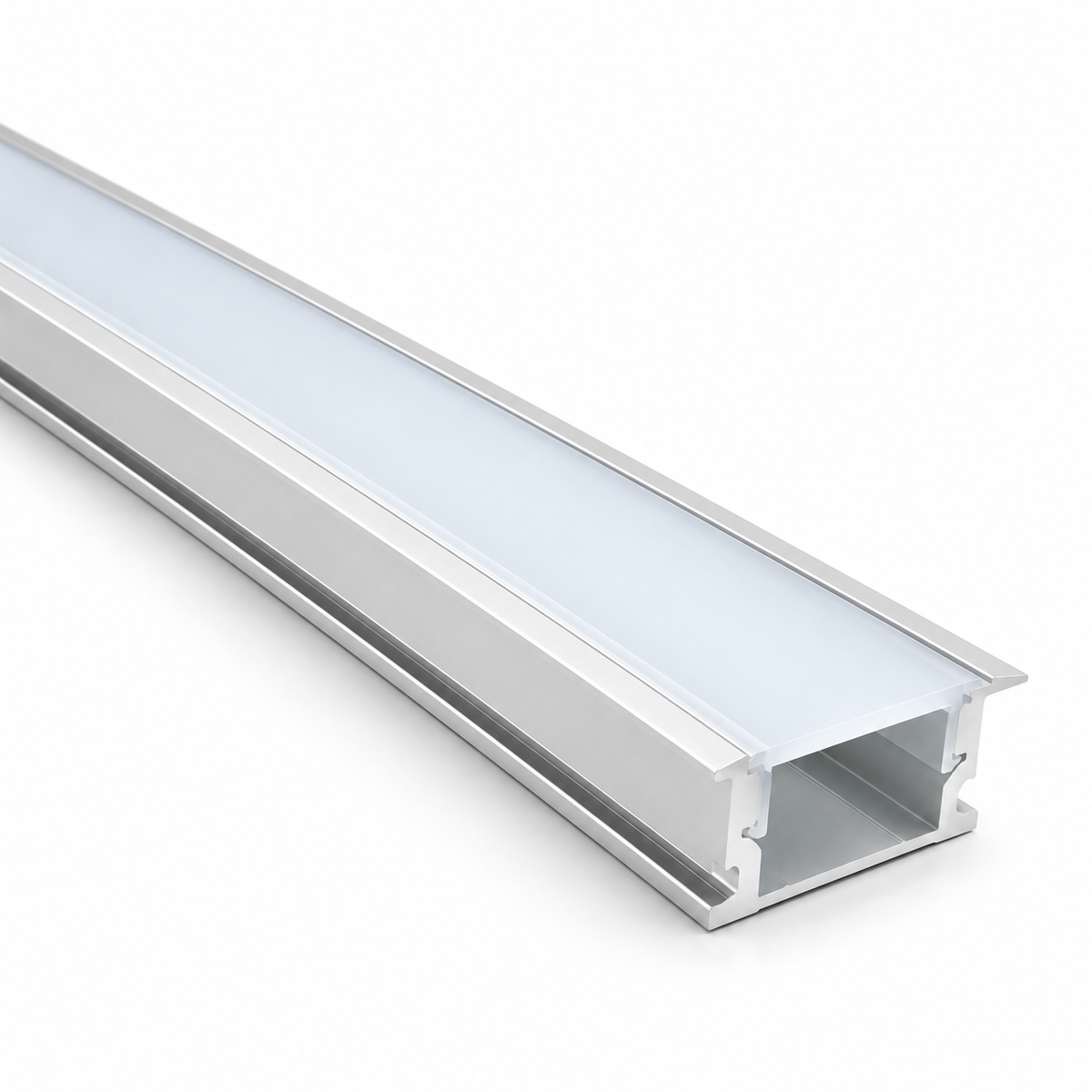

This 2-metre recessed LED aluminium profile is designed to sit flush in ceilings, walls, shelves and joinery, giving your LED strip lighting a clean, built-in, professional finish. The slim 23.6mm × 7mm extrusion hides the strip completely – no exposed circuit board, no visible dots, just a smooth line of light.

Key Features

• 2-Metre Recessed Profile. Made for flush mounting – the side wings sit on the surface while the channel drops into a routed groove for a seamless, built-in look.
• Slim 23.6mm × 7mm Extrusion. Low-profile design fits shallow ceiling voids and shelf rebates. 12.2mm internal width takes standard LED strips up to 12mm wide.
• Aluminium Construction. The aluminium body acts as a heat sink, drawing heat away from your LED strip to protect it and help it last longer.
• Complete Kit Included. Each 2m profile comes with the aluminium channel, diffuser cover, end caps and mounting clips – everything except the LED strip, which is sold separately.

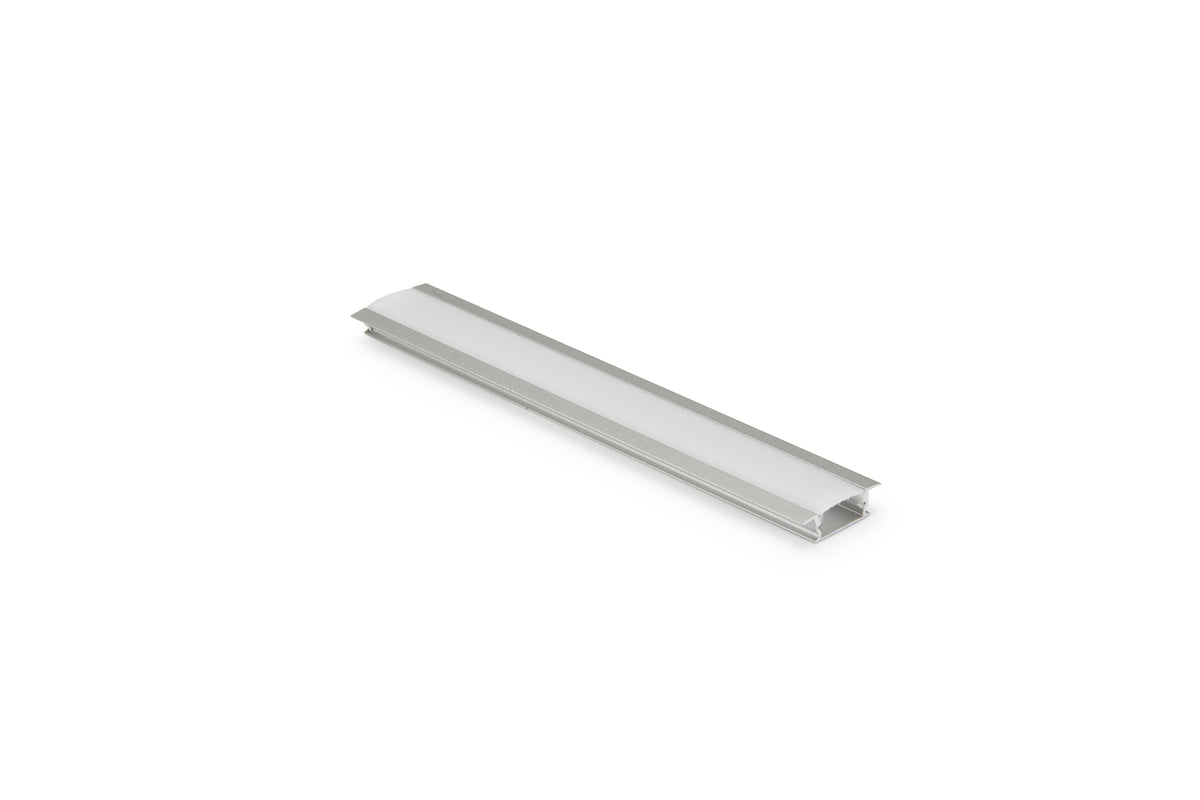

• Silver Finish. Classic neutral aluminium finish that blends seamlessly into ceilings, walls and joinery.
• IP20 Rated – Indoor Use Only. Designed for indoor installations, protected against solid objects. Keep away from water and moisture.
• 5-Year Warranty. Backed by ecolux England's standard 5-year warranty for peace of mind.

Why Use a Recessed Profile?

Surface-mounted channels sit on top of the surface – recessed profiles disappear into it. By routing a groove and dropping the profile in, the light source becomes part of the architecture: cove lines in ceilings, under-shelf strips in kitchens, display lighting in retail. The aluminium also protects the strip from dust, dirt and accidental contact, and the heat-sinking extends LED life.

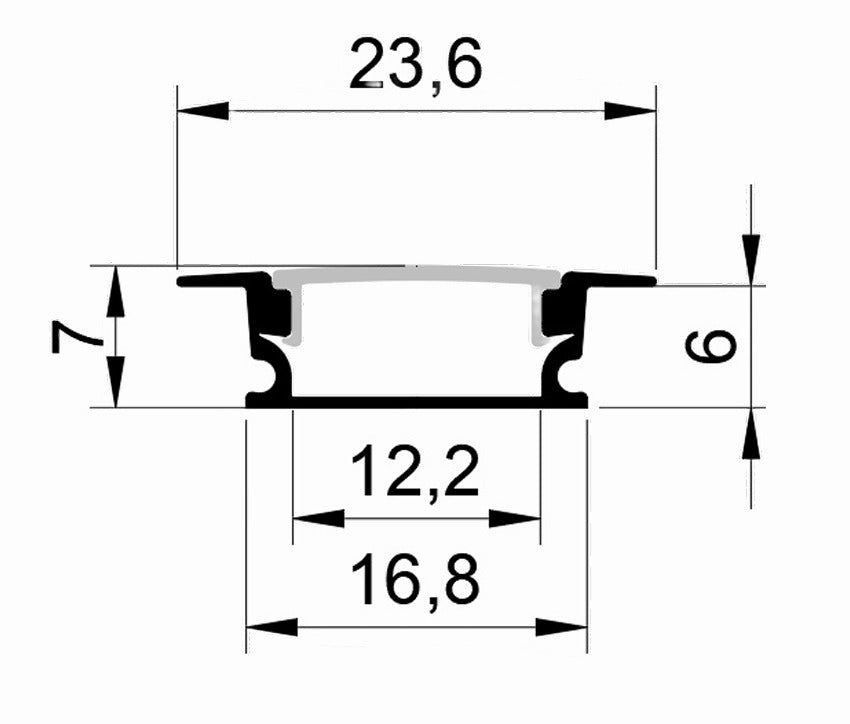

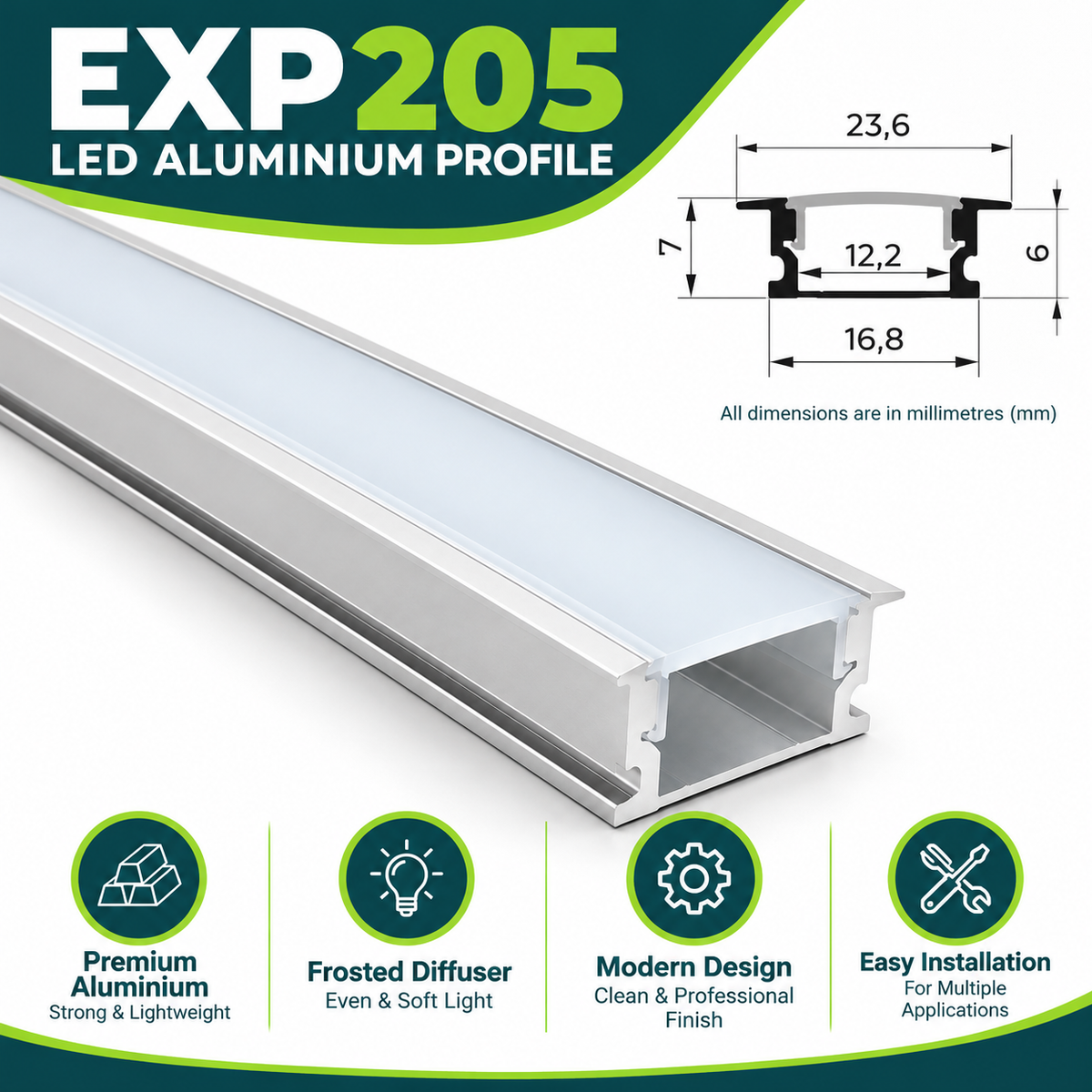

Dimensions

Knowing the exact size matters – measure your groove before ordering:

• Overall width: 23.6mm (including mounting wings)
• Height / depth: 7mm
• Channel width: 16.8mm
• Internal strip width: 12.2mm – fits LED strips up to 12mm wide
• Length: 2000mm (2 metres)

Technical Specifications

FAQs

What width LED strip fits?
Strips up to 12mm wide fit the 12.2mm internal channel.

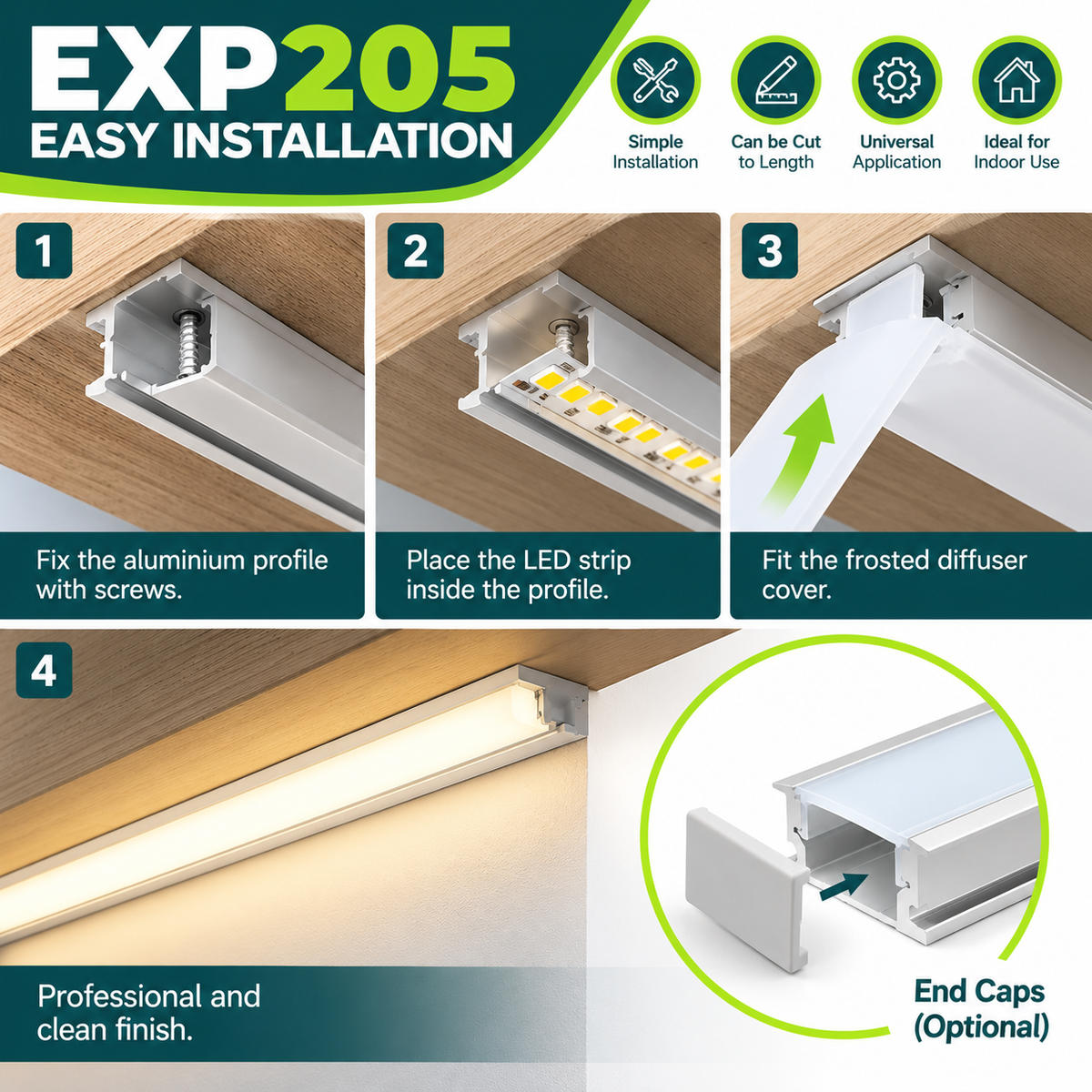

How is it installed?
Route a groove in the mounting surface, drop the profile in so the wings sit flush on the surface, then fit your LED strip and diffuser.

Is the LED strip included?
No – the profile is the aluminium housing only. LED strip lights are sold separately.

Can it be cut to length?
Yes – aluminium profiles can be cut to shorter lengths with a fine-tooth saw.

What is included in the box?
Each 2m profile comes complete with the aluminium channel, diffuser cover, end caps and mounting clips. The LED strip is sold separately.

Is it waterproof?
No – these profiles are IP20 rated for indoor use only. Keep them away from water and moisture.

What warranty does it have?
ecolux England's standard 5-year warranty.
