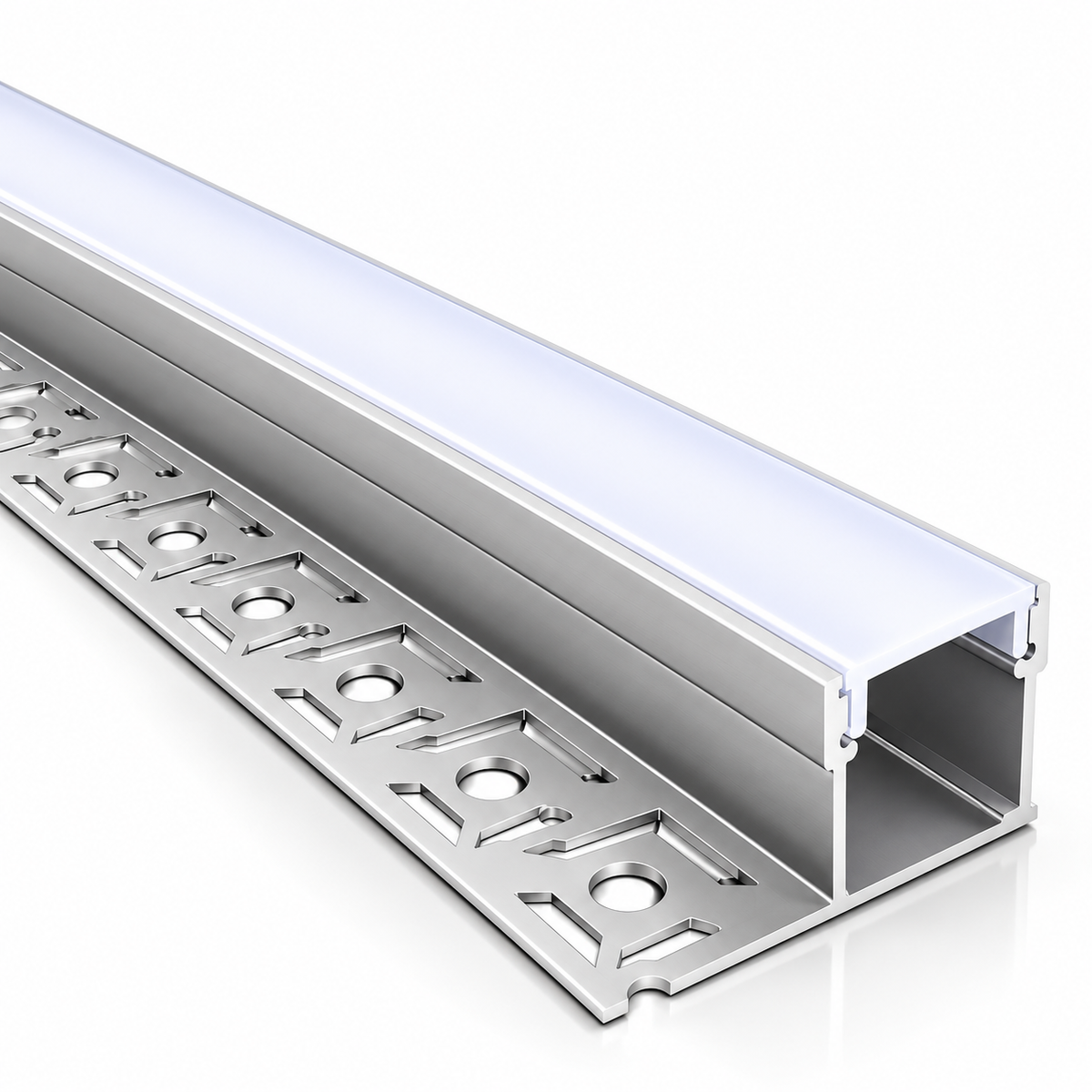

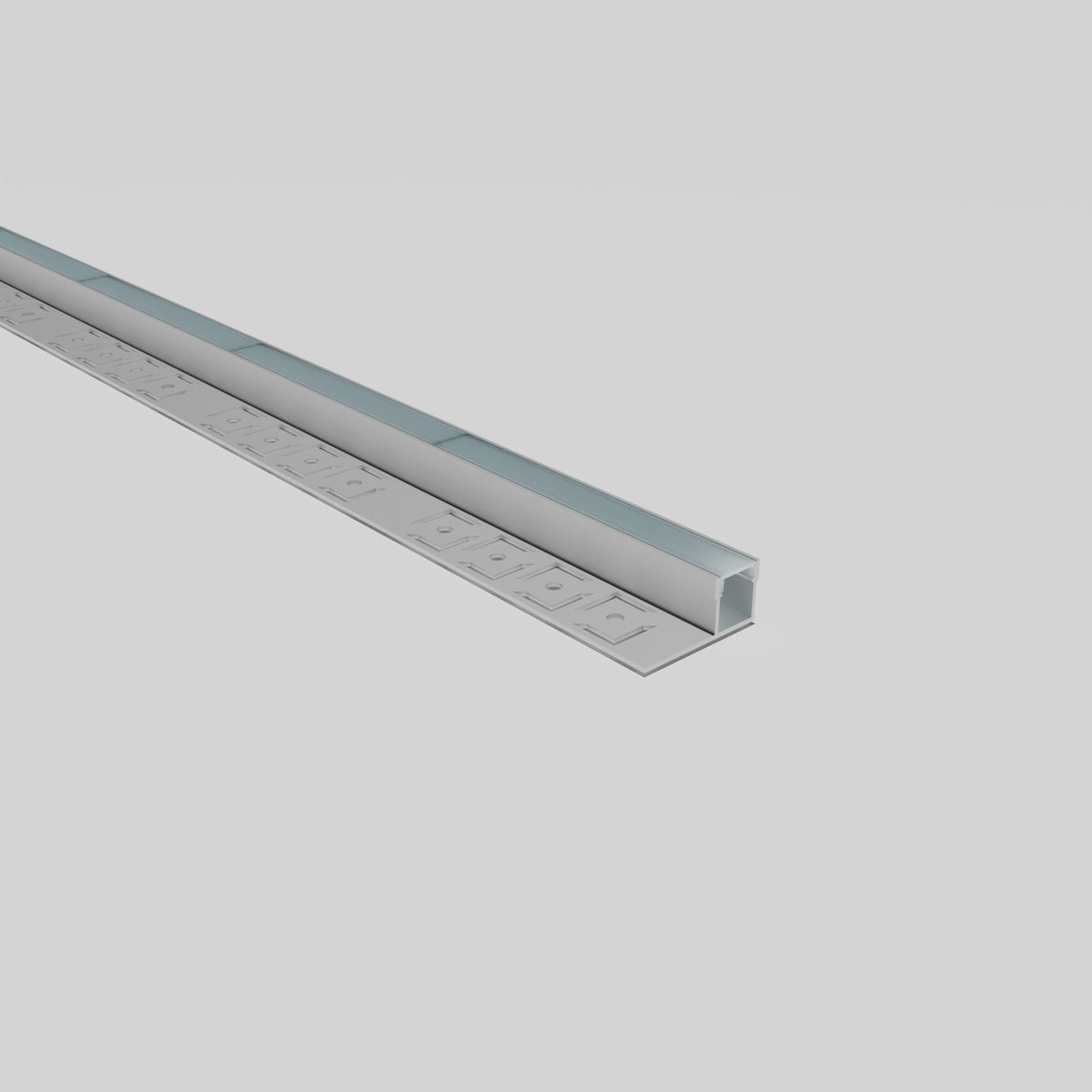

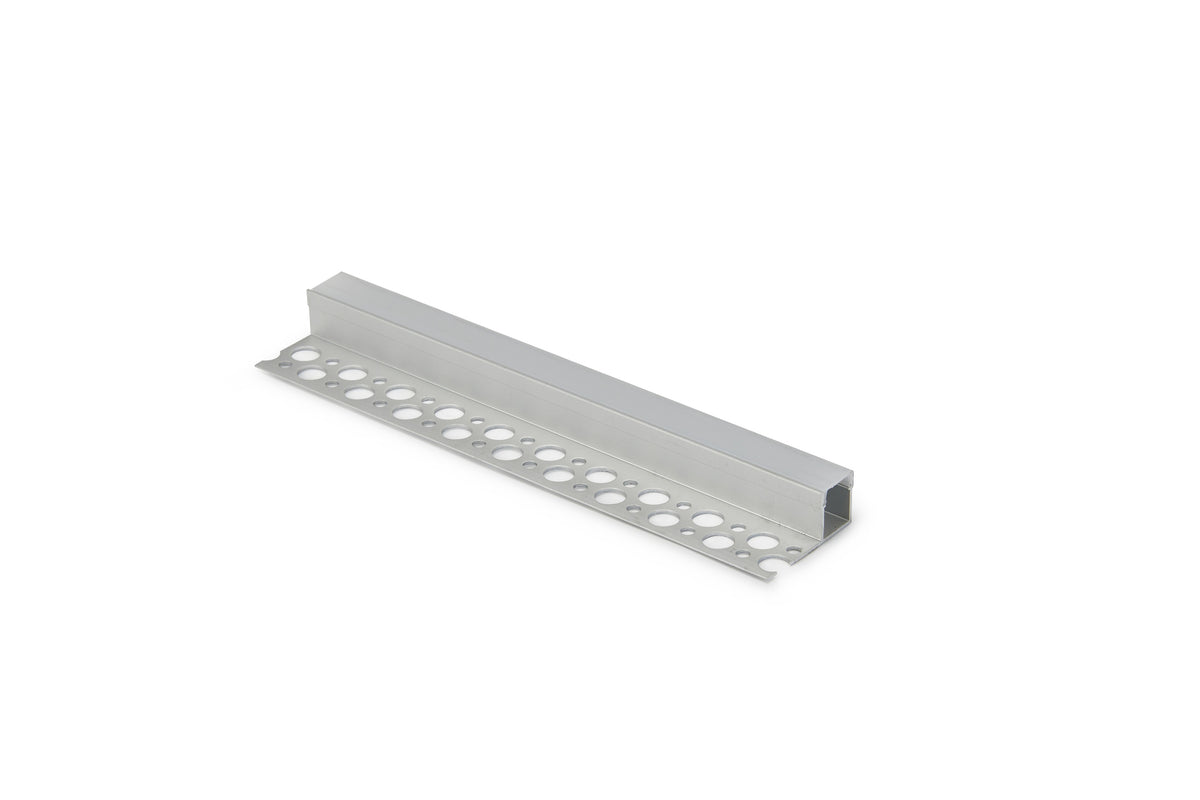

2m Tile In LED Aluminium Profile – seamless, integrated tile lighting. This tile-in LED profile is designed to sit flush within tiled surfaces, creating a clean line of light with no visible fitting. Perfect for bathrooms, kitchens and wet areas where you want architectural lighting integrated directly into the tile layout.

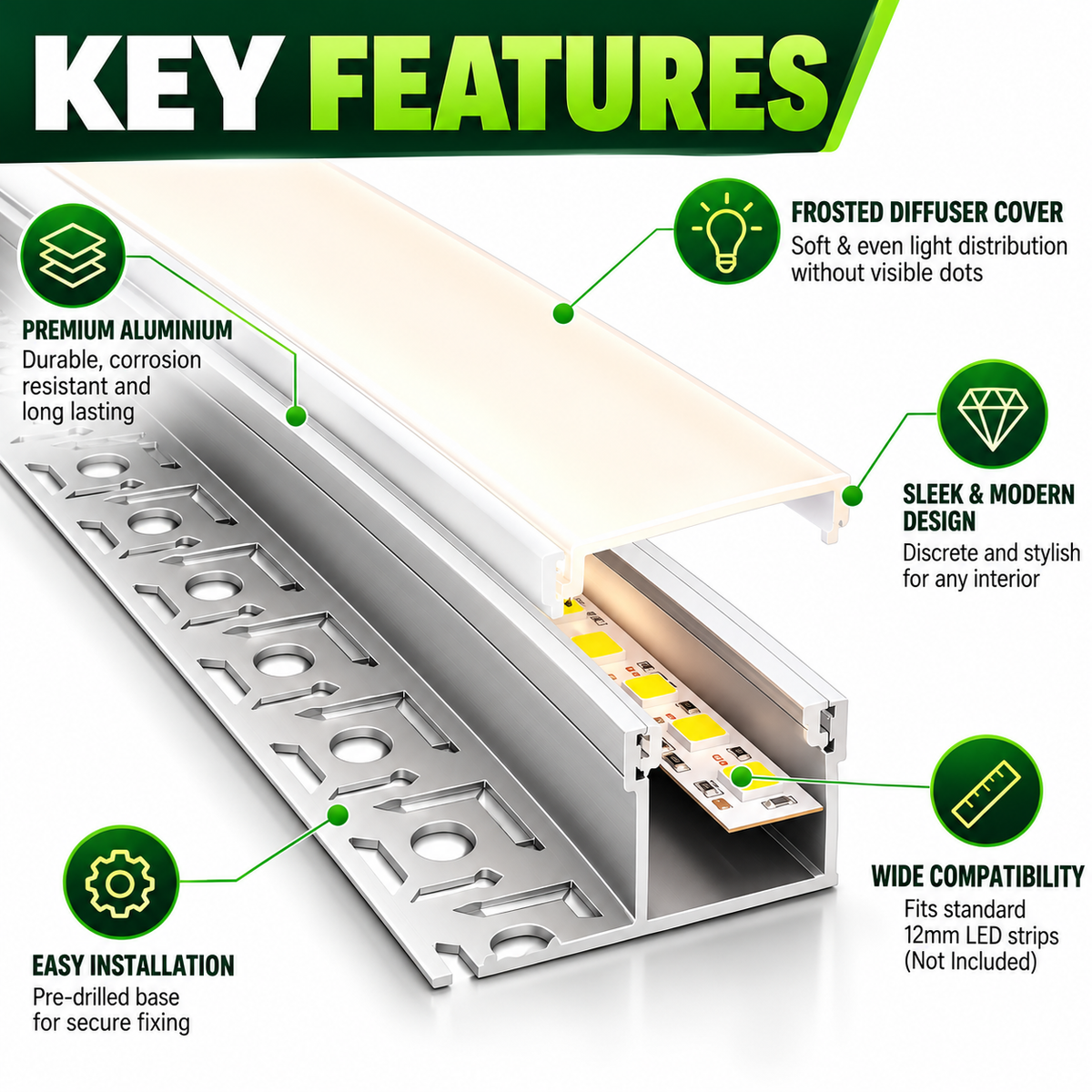

Key Features

• Tile-in design – integrates directly into tiled walls and floors for a flush, seamless finish
• 2 metres long (2000mm) – generous length for continuous runs

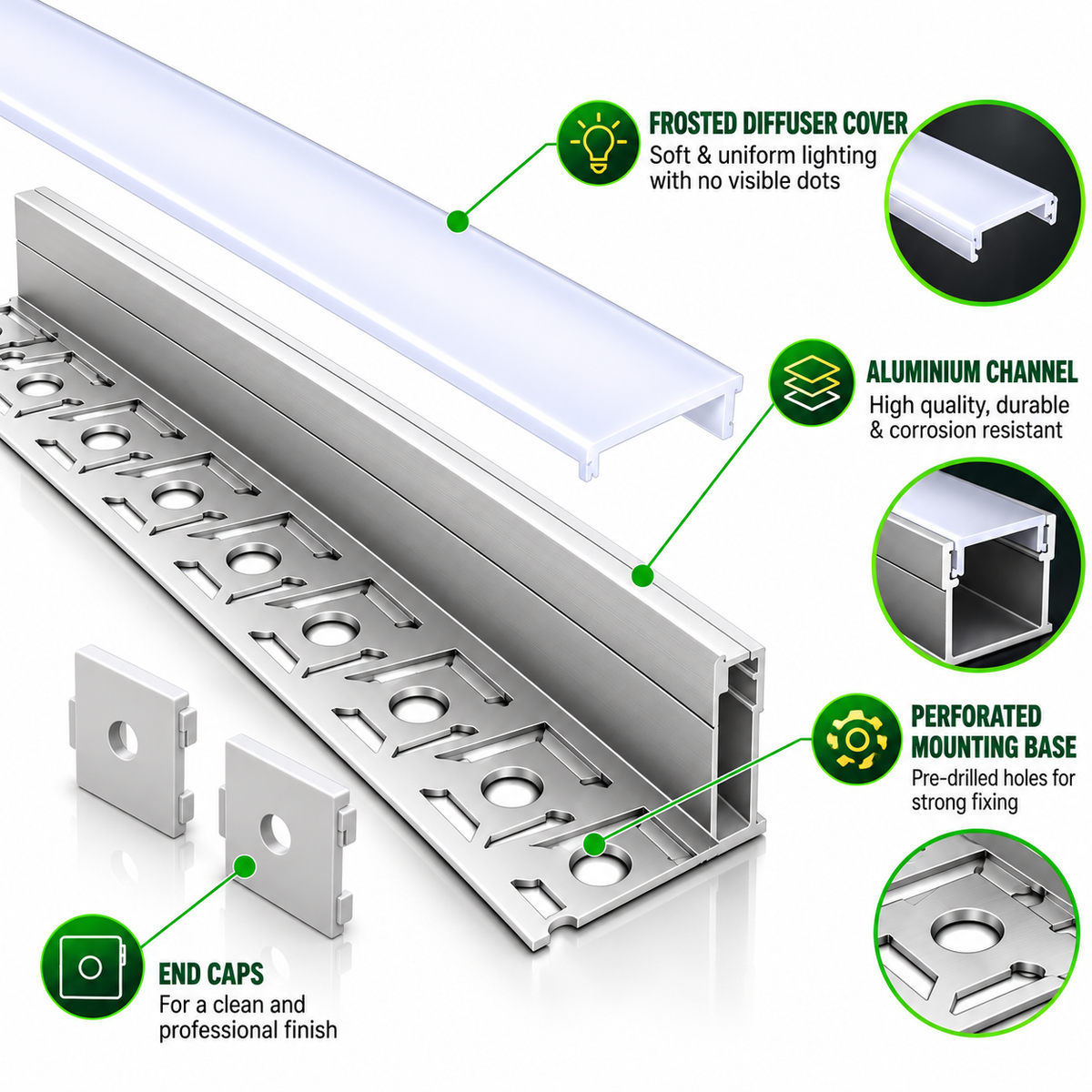

• Complete kit included – aluminium profile, diffuser cover, end caps and mounting clips in the box
• IP20 rated – for indoor use only
• 5-year warranty – standard across the ecolux England range
• Aluminium construction – protects your LED strip and helps dissipate heat for longer LED life

What is a Tile In Profile?

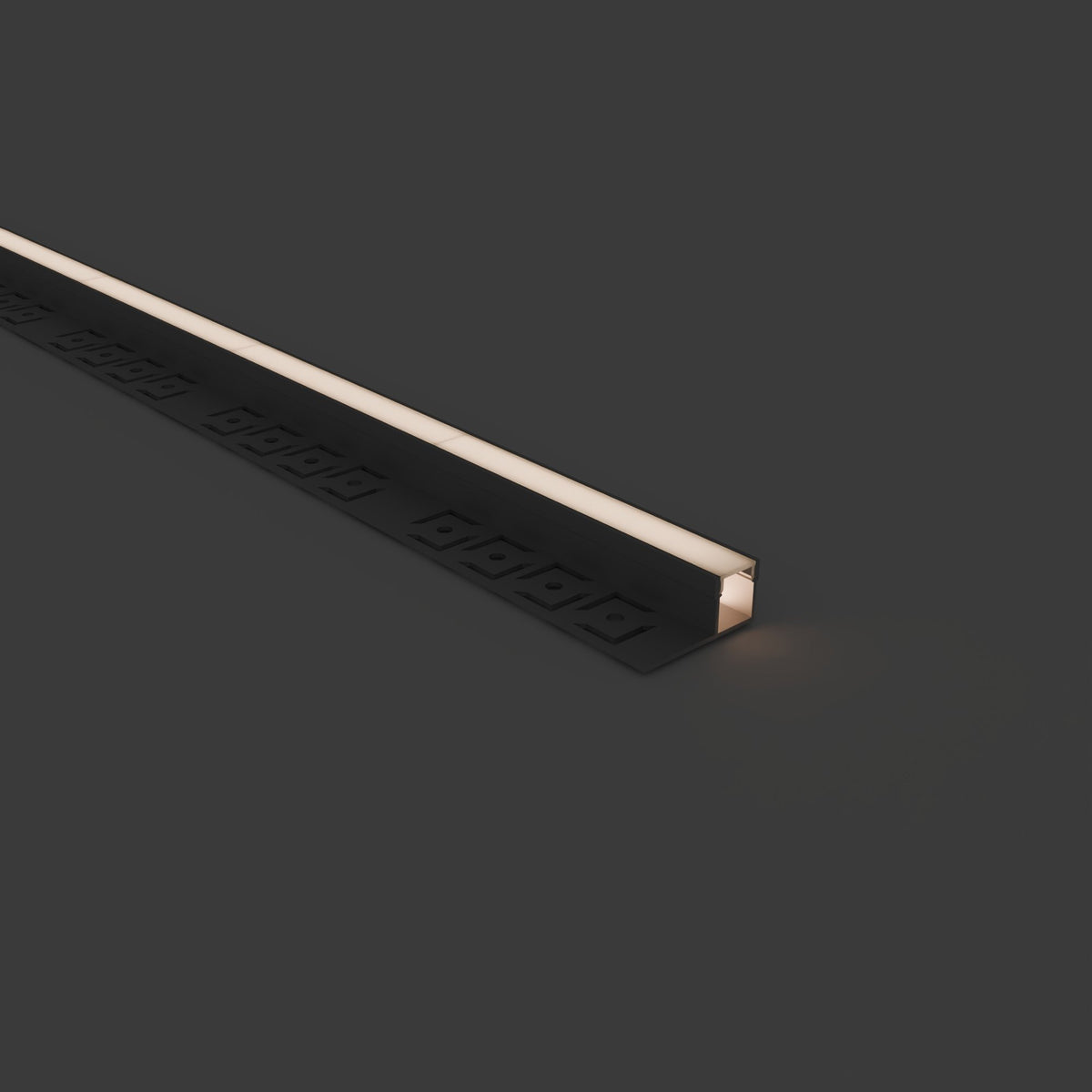

A tile-in profile is installed during tiling. It sits within the tile bed so the finished surface is flush – you see only a crisp line of light running through the tiles. The result is a high-end architectural look with no visible trunking or surface-mounted fittings.

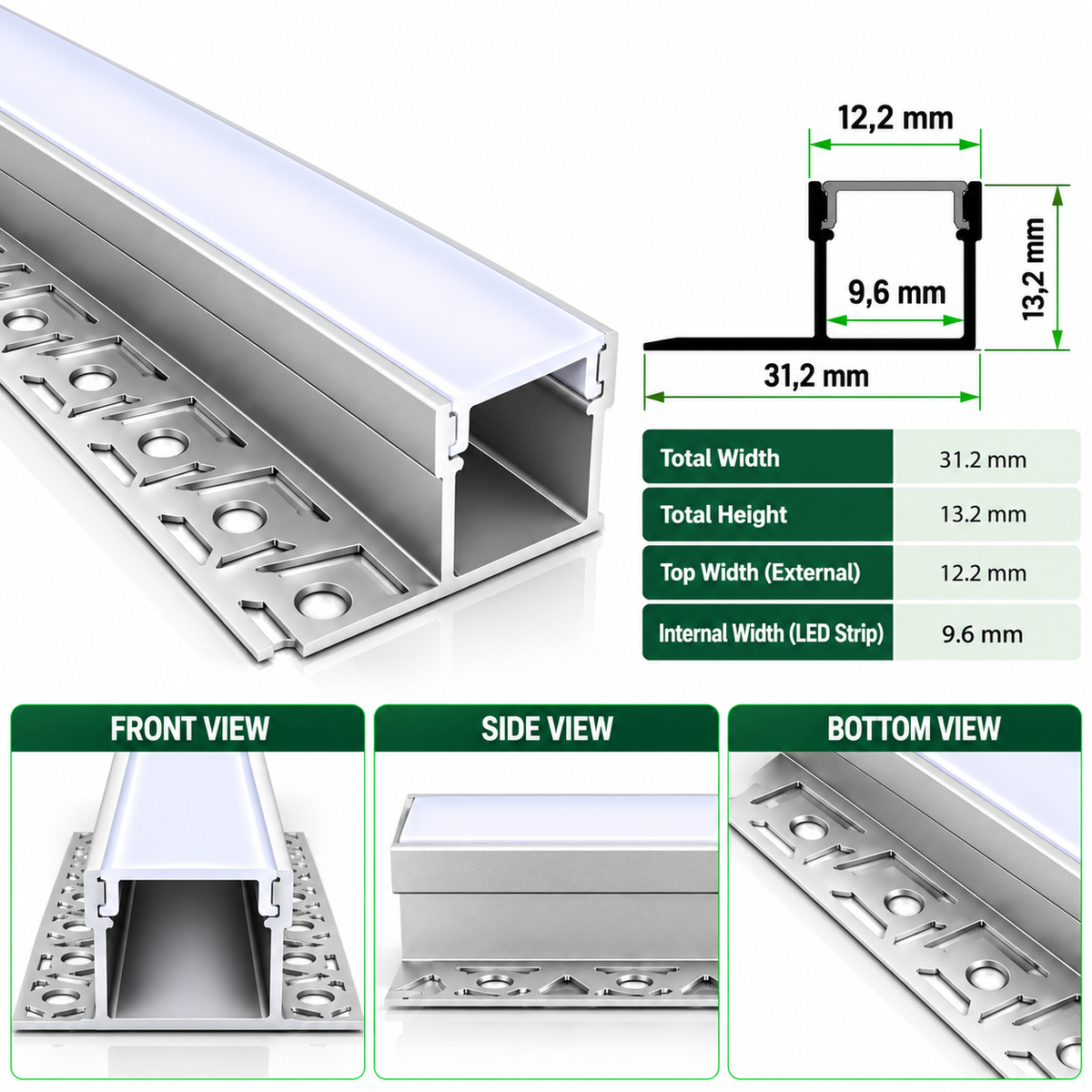

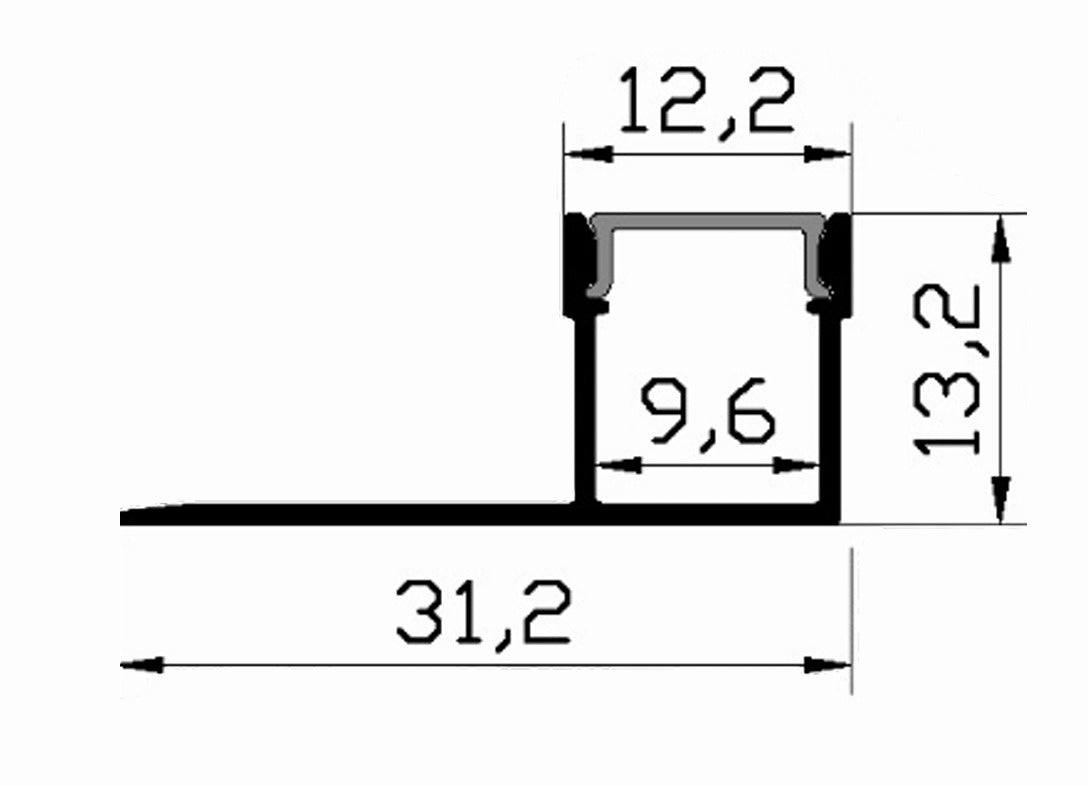

Dimensions

• Total width: 31.2mm
• Height: 13.2mm
• Channel width: 12.2mm
• Internal width: 9.6mm
• Length: 2000mm (2m)

Choose an LED strip up to 9.6mm wide to fit the internal channel.

What's Included

• 1 x 2m Tile In aluminium profile
• 1 x Diffuser cover
• End caps
• Mounting clips

Technical Specifications

SKU: EXP301 | Length: 2000mm (2m) | Total width: 31.2mm | Height: 13.2mm | Channel width: 12.2mm | Internal width: 9.6mm | Material: Aluminium | IP Rating: IP20 – indoor use only | Warranty: 5 years

FAQs

How is this installed?

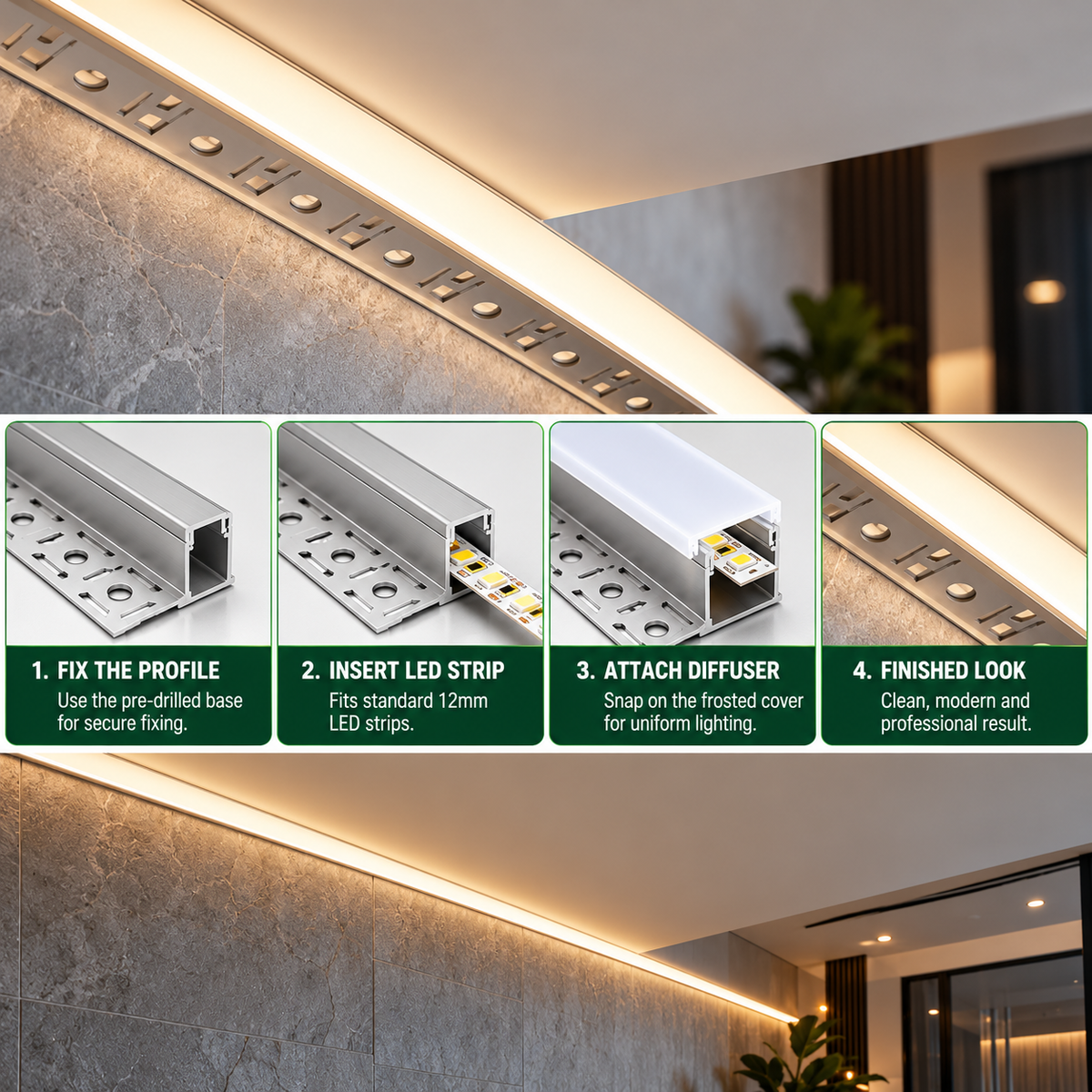

The profile is set into the tile bed during tiling so the finished surface sits flush, leaving only the diffuser visible.

What LED strip fits?
Any LED strip up to 9.6mm wide fits the internal channel.

Is it suitable for bathrooms?
It is IP20 rated for indoor dry areas only – pair with a suitably IP-rated LED strip for wet zones.

What's in the box?
The 2m aluminium profile, diffuser cover, end caps and mounting clips.
