View compare24V LED Power Supply / Driver for COB LED Strip – Constant Voltage

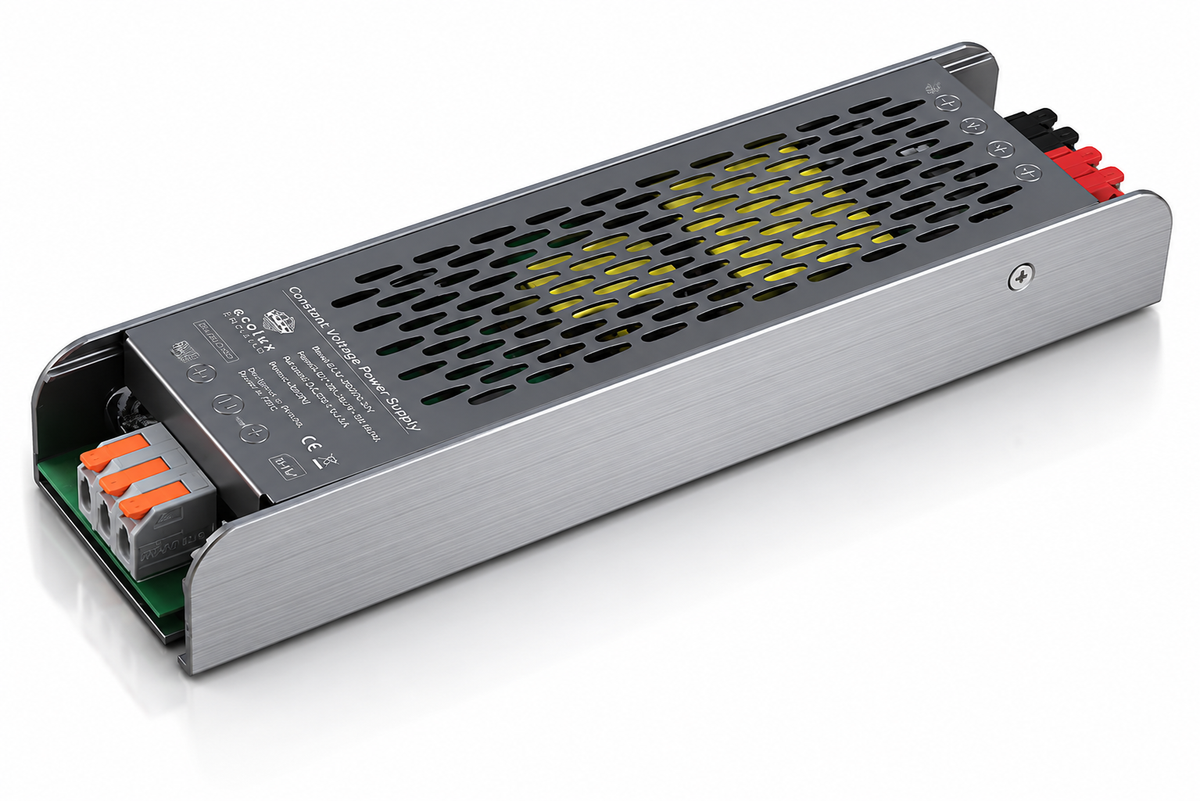

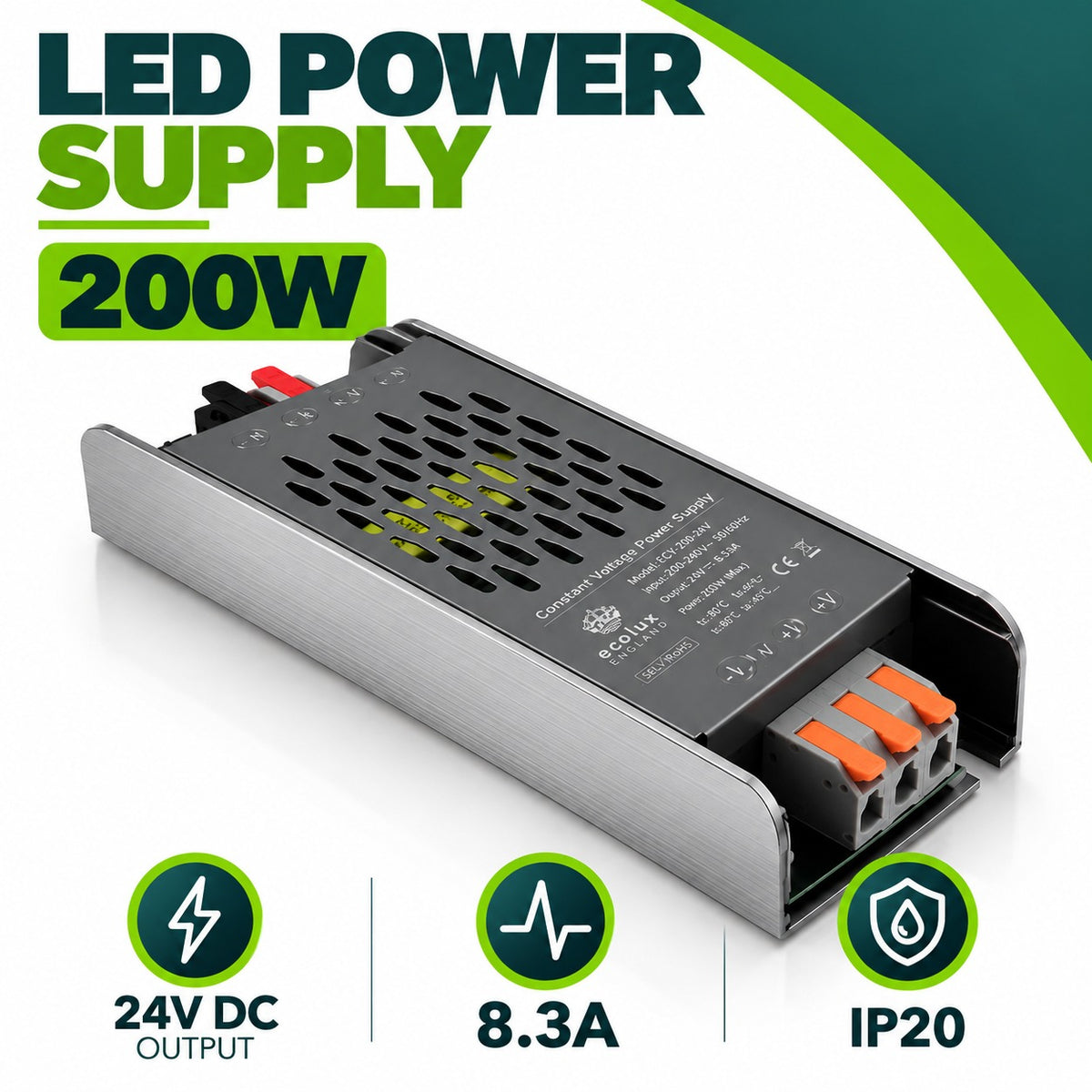

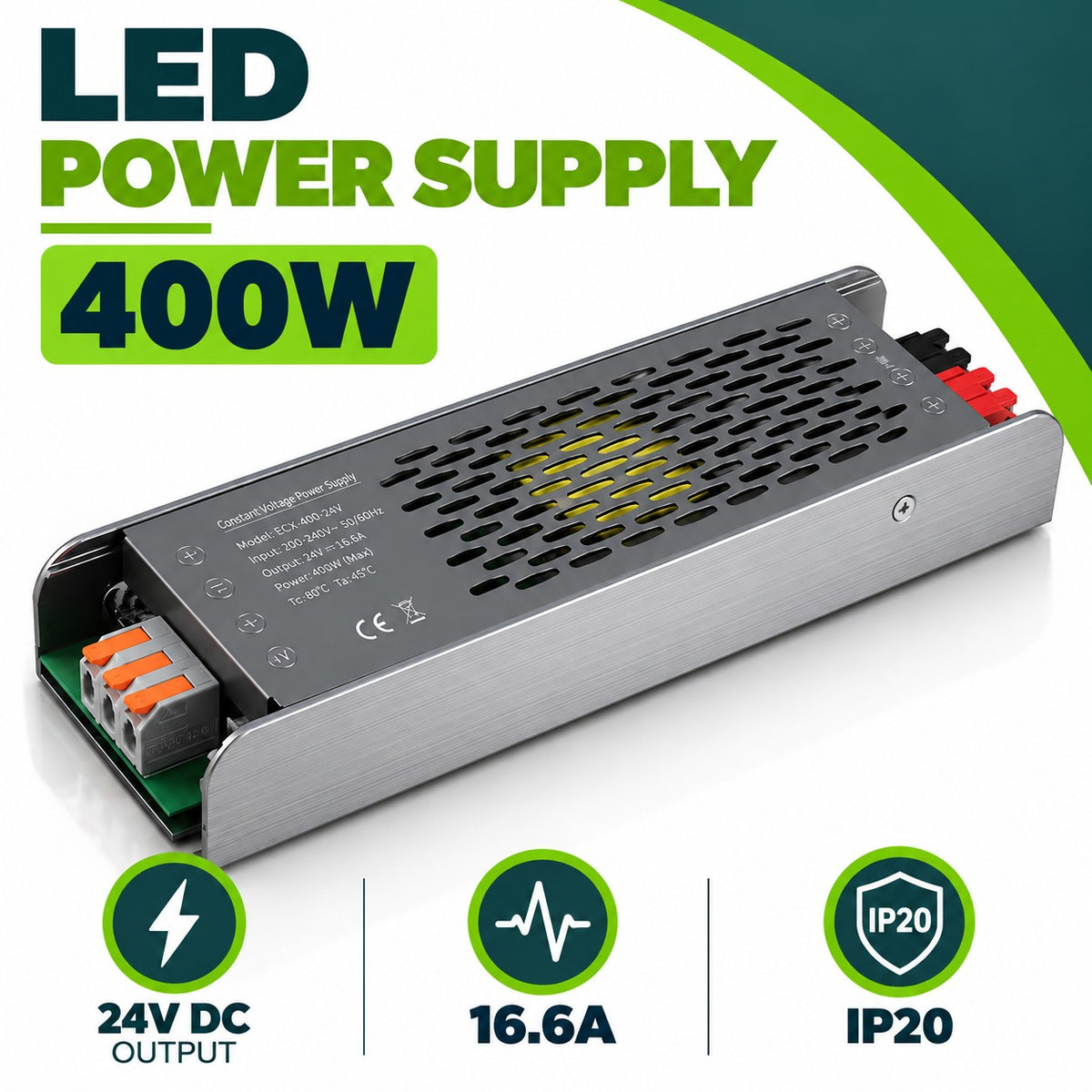

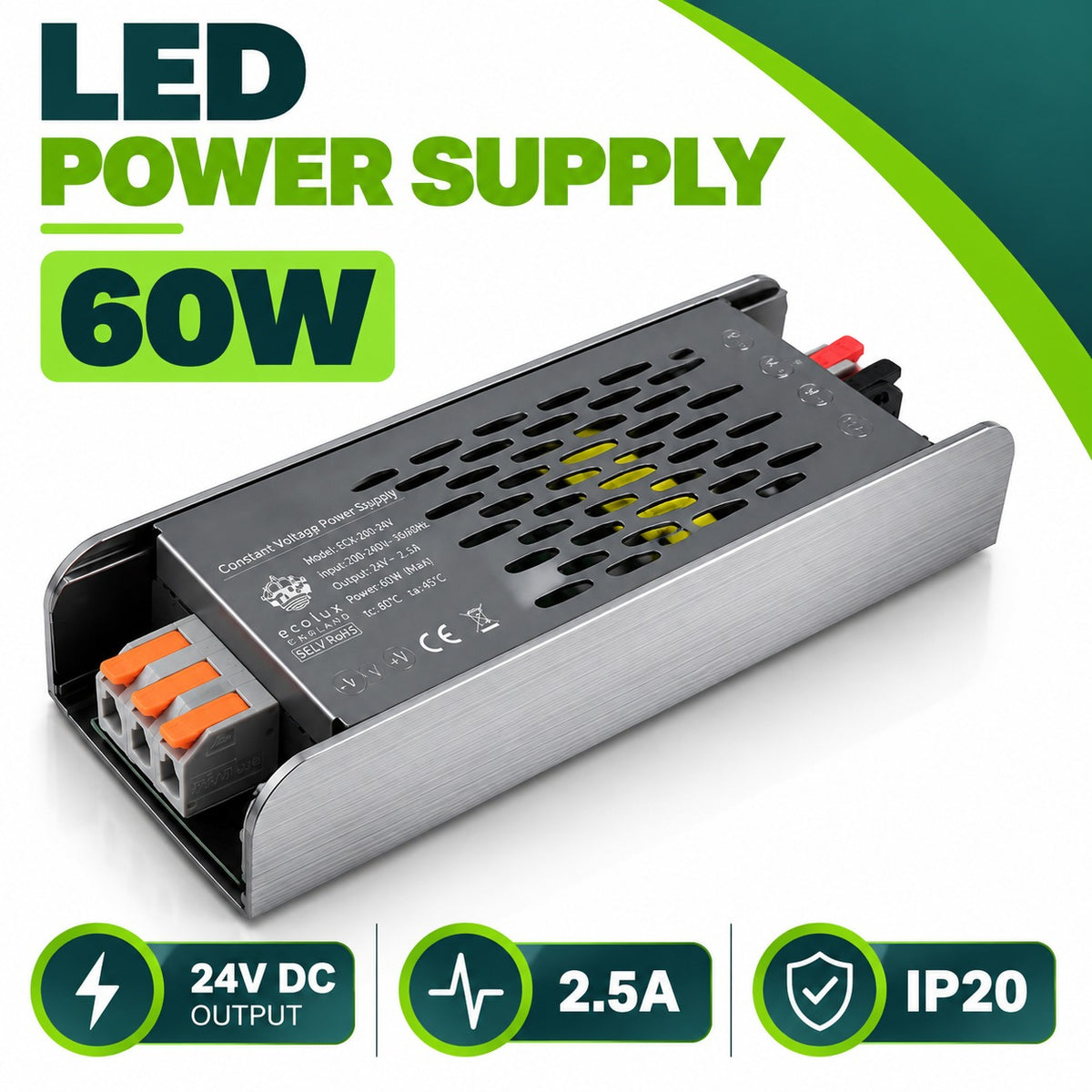

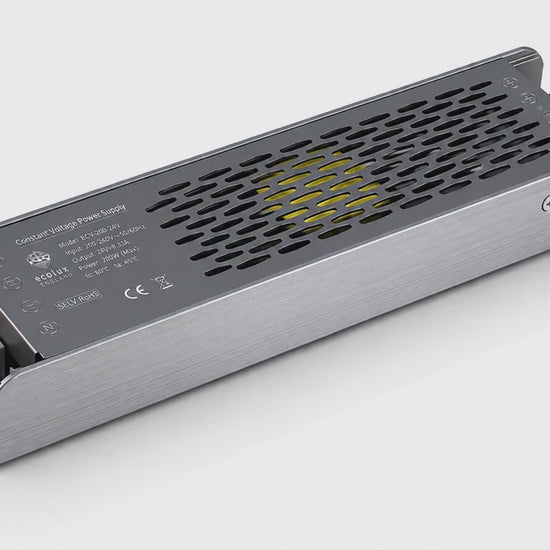

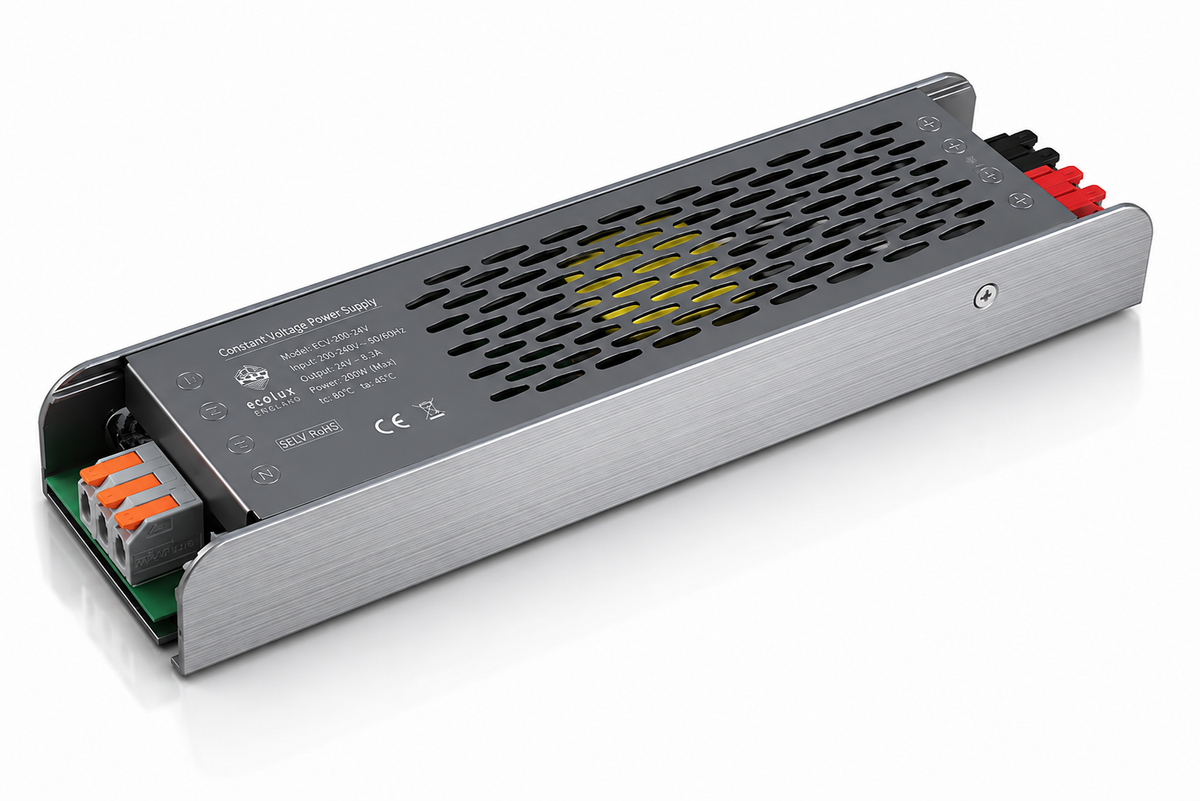

24V LED Power Supply / Driver for COB LED Strip – Constant Voltage
Regular price
£19.99
Sale price
£19.99
Regular price
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock In stock, ready to be shipped.
Share
Couldn't load pickup availability
Description
Description
Power your 24V COB LED strip lighting with confidence. The ecolux England constant-voltage LED power supply delivers a stable 24V DC output for COB LED strip, in three wattages — 60W, 200W or 400W — so you can match the driver to the length of strip you are running. A built-in brightness dip-switch lets you step the output to 25%, 50%, 75% or 100% without any extra dimmer.
Key features
- Constant-voltage 24V DC output — stable power for 24V COB LED strip.
- Three wattages — 60W (2.5A), 200W (8.3A) or 400W (16.6A).
- Brightness dip-switch — set output to 25%, 50%, 75% or 100% (100% is the factory default). Switch 1, 2 & 3 ON = 25%; switches 1 & 2 ON, 3 OFF = 50%; switch 1 ON, 2 & 3 OFF = 75%; all three OFF = 100%.
- Start switch — set to OFF from the factory; switch to ON to start.
- No stroboscopic effect — flicker-free output, per the datasheet.
- IP20 — for indoor use.
- Expected lifetime 50,000 hours at 25°C ambient (experimental use rated above 20,000 hours).
Which driver do I need?
Your power supply must be rated for the total wattage of the strip it powers. Our 5m COB LED strip runs at 10W per metre, so one 5m reel draws 50W. Price-list maximum strip runs:
- 60W — up to 5m of strip (one 5m reel = 50W).
- 200W — up to 17m of strip.
- 400W — up to 33m of strip.
For 24V COB LED strip (e.g. our 5m COB strip). Strip and connectors sold separately.
Specifications
| 60W | 200W | 400W | |
|---|---|---|---|
| Model | EXCD60 | EXCD200 | EXCD400 |
| Output | 24V DC, 2.5A | 24V DC, 8.3A | 24V DC, 16.6A |
| Output voltage | 24 ±5% DC | 24 ±5% DC | 24 ±5% DC |
| Output current | 100–2500mA ±5% | 8.3A max (see note) | 100–16700mA ±5% |
| Input voltage | 220V AC rated; 160–265V AC range | 220V AC rated; 160–265V AC range | 220V AC rated; 160–265V AC range |
| Frequency | 50–60Hz rated; 47–63Hz range | 50–60Hz rated; 47–63Hz range | 50–60Hz rated; 47–63Hz range |
| Efficiency | η ≥ 88% | η ≥ 92% | η ≥ 92% |
| Power factor | ≥ 0.50 at 220V, full load | ≥ 0.50 at 220V, full load | ≥ 0.50 at 220V, full load |
| Rush current | <1.2A @ 265V AC | <2.0A @ 265V AC | <5A @ 265V AC |
| Max input | 0.4A @ 220V AC | 1.0A @ 220V AC | 2A @ 220V AC |
| Harmonic | EN 61000-3-2 | EN 61000-3-2 | EN 61000-3-2 |
| Ingress protection | IP20 | IP20 | IP20 |
| Dimensions | 148 × 50 × 27mm | 188 × 50 × 27mm | 218 × 60 × 29mm |
| Net weight | 200g | 320g | 510g |
| Operating temperature | -30°C to +55°C | -30°C to +55°C | -30°C to +55°C |
| Storage temperature | -30°C to +70°C | -30°C to +70°C | -30°C to +70°C |
| Operating humidity | ≤90% (non-condensing) | ≤90% (non-condensing) | ≤90% (non-condensing) |
Note: the 200W datasheet's output-current line reads "100–6300mA", which does not match the unit's 8.3A rating (200W ÷ 24V = 8.3A, as printed on the product label). We state the label rating of 8.3A.
Brand: ecolux ENGLAND. All specifications are taken directly from the supplier datasheets.
